Lopolight NL301-008-B-UL 6M 2nm Starboard, Black Anodized Lopolight NL301-008-B-UL 6M 2nm Starboard, Black Anodized
Lopolight NL301-008-B-UL 6M 2nm Starboard, Black Anodized (lopolight.com image) Lopolight NL301-008-B-UL 6M 2nm Starboard, Black Anodized (lopolight.com image)
Lopolight NL301-008-B-UL 6M 2nm Starboard, Black Anodized
Lopolight NL301-008-B-UL 6M 2nm Starboard, Black Anodized (lopolight.com image)

Lopolight

Lopolight NL301-008-B-UL 6M 2nm Starboard, Black Anodized

£398.36
Tax included. Shipping calculated at checkout.
NL301-008-B-UL 6M
Lopolight 2nm Starboard, Black Anodized (NL301-008-B-UL 6M): LED navigation light, 2 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

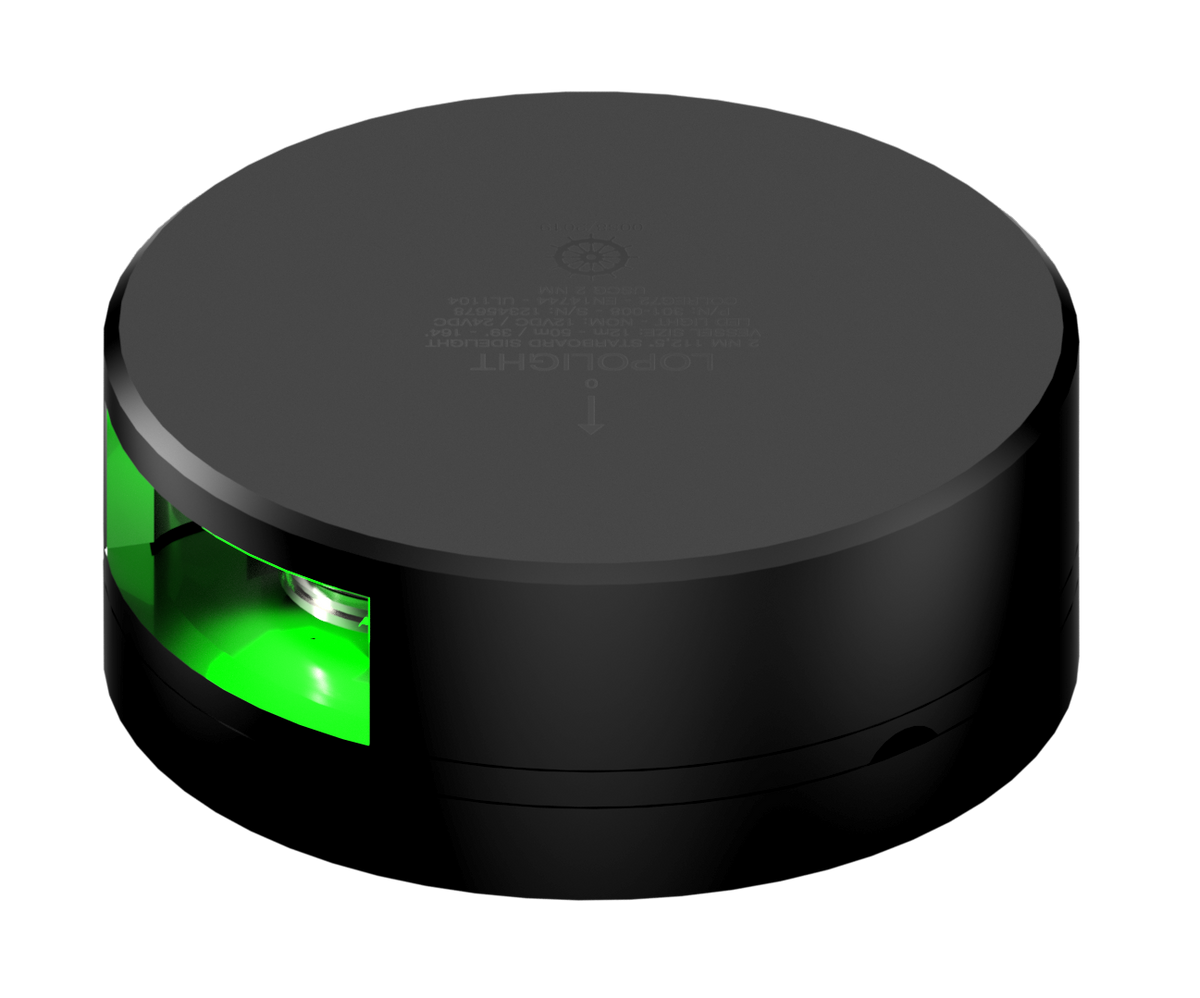

The Lopolight 2nm Starboard, Black Anodized (part number NL301-008-B-UL 6M) is an LED navigation light from Lopolight of Denmark.

Key points: 2 nm visibility. It operates from 10-32 VDC and draws 1.4 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 12-20M, 20-50M.

PRODUCT DETAILS

  • 2 nm visibility (>5.4cd)
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR

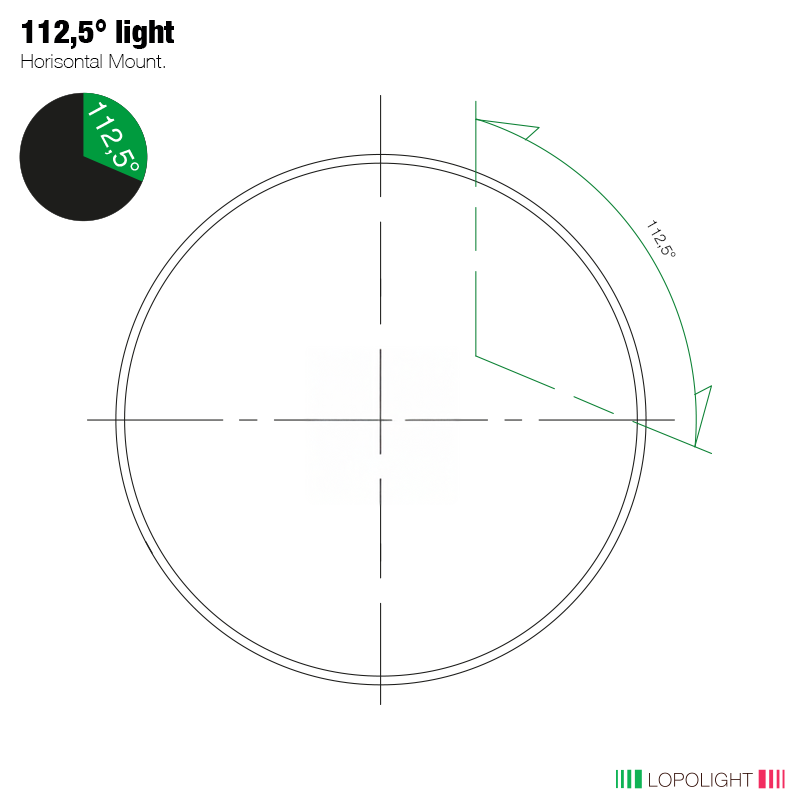

  • Horizontal mounting
  • Connection: 6m cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility2nm
Intensity>5.4cd

Electrical

Operating voltage10-32VDC
Power draw (W)1.4
Current consumption @ 12 VDC110 mA
Current consumption @ 24 VDC60 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingHorizontal
DimensionsØ92,5mm x 36mm
Connection6m cable
MaterialsBlack anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishBlack anodized
Weight0.9 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)12-20M,20-50M
Lopolight part number301-008-B-UL 6M
IMP part numberNL301-008-B-UL 6M
UPC879343014773
EAN5704438014770

No videos available for this product.

What is the visibility range of the Lopolight NL301-008-B-UL 6M?
Lopolight specifies 2 nautical mile(s) visibility with intensity >5.4cd for this part.
What supply voltage does the Lopolight NL301-008-B-UL 6M need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.4 W.
Which approvals does the Lopolight NL301-008-B-UL 6M carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
