Lopolight

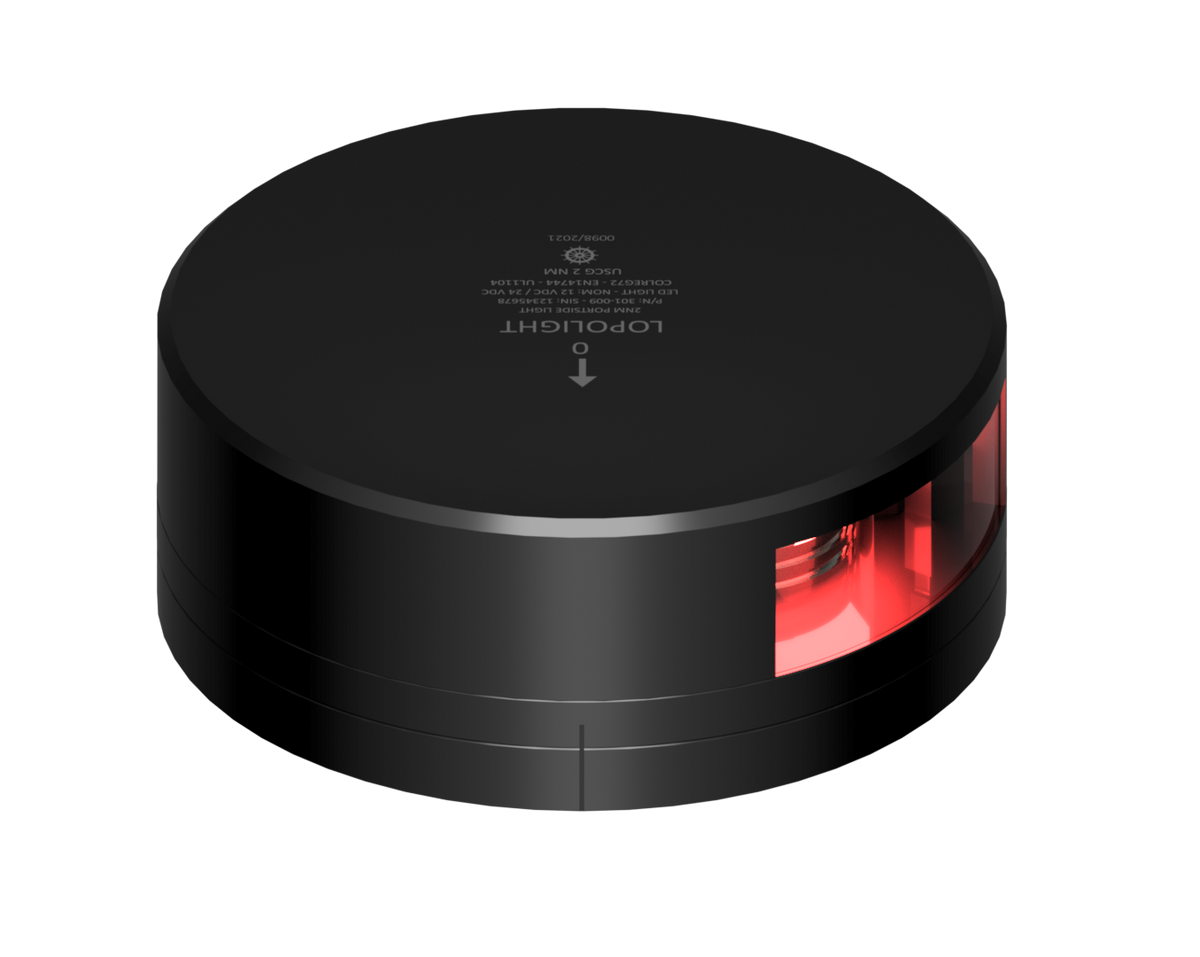

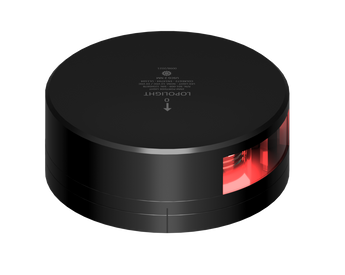

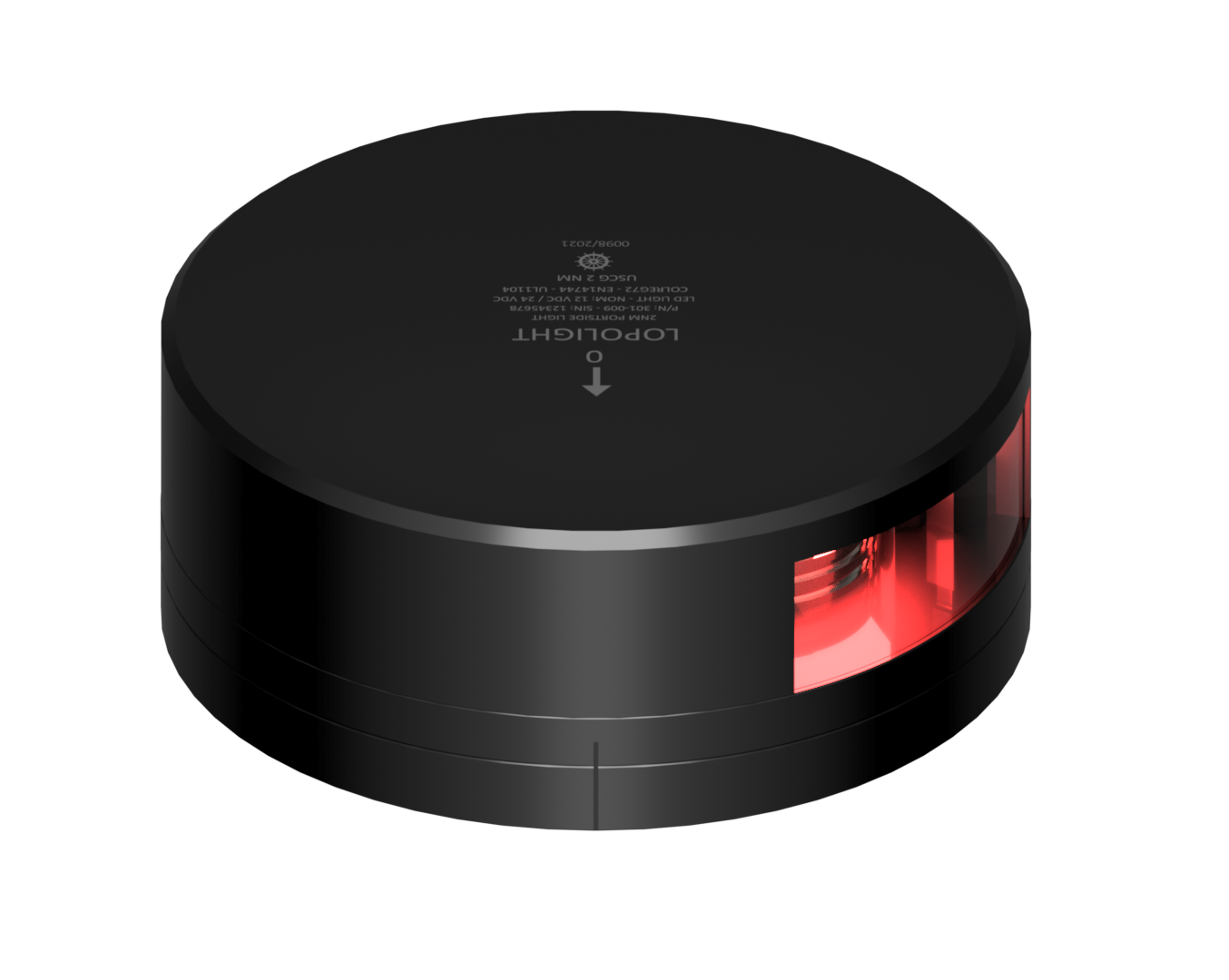

Lopolight NL301-009-FB-B 2nm Port, Black with FB Base
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 2nm Port, Black with FB Base (part number NL301-009-FB-B) is an LED navigation light from Lopolight of Denmark.
Key points: 2 nm visibility. It operates from 10-32 VDC and draws 1.2 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Under 12M, 12-20M, 20-50M.
Supplied with: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, Installation guide.
PRODUCT DETAILS
- 2 nm visibility
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Horizontal mounting
- Connection: 2.5m cable
- 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 2nm |
Electrical
| Operating voltage | 10-32VDC |
| Power draw (W) | 1.2 |
| Current consumption @ 12 VDC | 90 mA |
| Current consumption @ 24 VDC | 50 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical

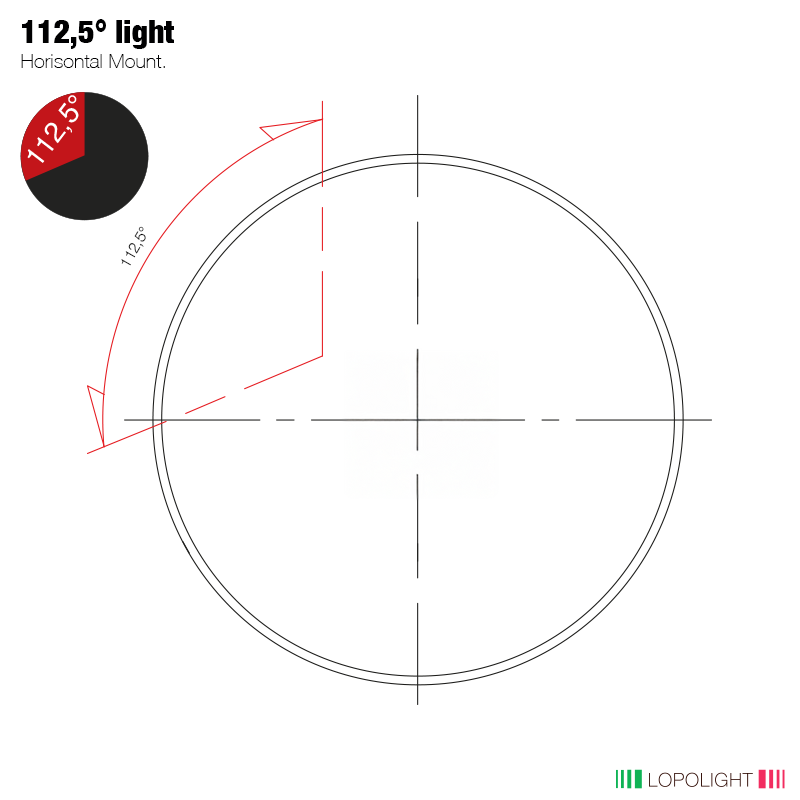

| Mounting | Horizontal |
| Dimensions | Ø92,5mm x 36mm |
| Connection | 2.5m cable |
| Housing finish | Black anodized |
| Weight | 0.57 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | Under 12M,12-20M,20-50M |
| Lopolight part number | 301-009-FB-B |
| IMP part number | NL301-009-FB-B |
| UPC | 879343043995 |
| EAN | 5704438043862 |
