Lopolight NL301-011KL-B 5nm Masthead Horizontal Mount, Black CD/CS Alu Base

£1,118.35
Tax included. Shipping calculated at checkout.
NL301-011KL-B
Lopolight 5nm Masthead Horizontal Mount, Black CD/CS Alu Base (NL301-011KL-B): LED navigation light, 5 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

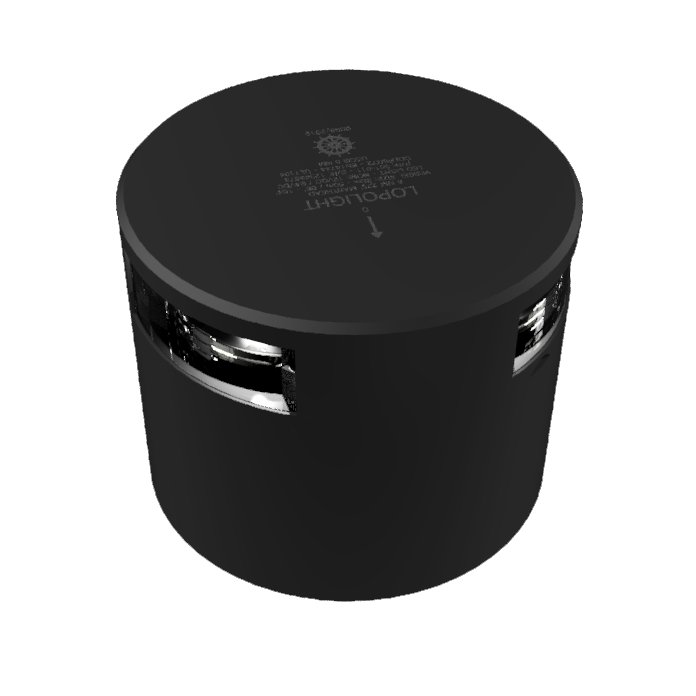

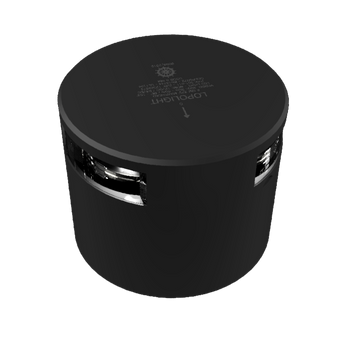

The Lopolight 5nm Masthead Horizontal Mount, Black CD/CS Alu Base (part number NL301-011KL-B) is an LED navigation light from Lopolight of Denmark.

Key points: 5 nm visibility. It operates from 10-32 VDC and draws 4.1 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 20-50M.

Supplied with: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide.

PRODUCT DETAILS

  • 5 nm visibility (>52cd)
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Horizontal mounting
  • Connection: Plug connector
  • 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility5nm
Intensity>52cd

Electrical

Operating voltage10-32VDC
Power draw (W)4.1
Current consumption @ 12 VDC320 mA
Current consumption @ 24 VDC170 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingHorizontal
DimensionsØ92,5mm x 74,5mm
ConnectionPlug connector
MaterialsBlack anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishBlack anodized
Weight0.99 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)20-50M
Lopolight part number301-011KL-B
IMP part numberNL301-011KL-B
UPC879343013073
EAN5704438013070

No videos available for this product.

What is the visibility range of the Lopolight NL301-011KL-B?
Lopolight specifies 5 nautical mile(s) visibility with intensity >52cd for this part.
What supply voltage does the Lopolight NL301-011KL-B need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 4.1 W.
Which approvals does the Lopolight NL301-011KL-B carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
