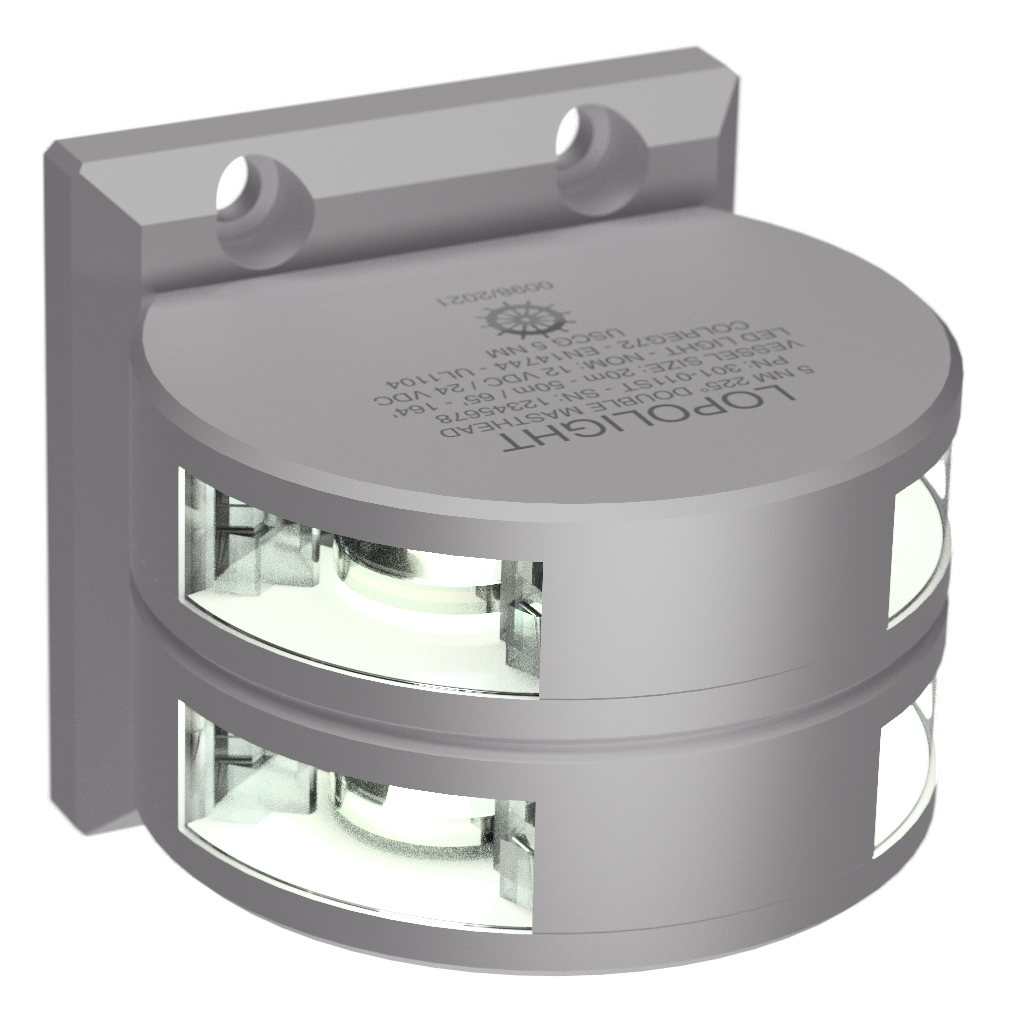

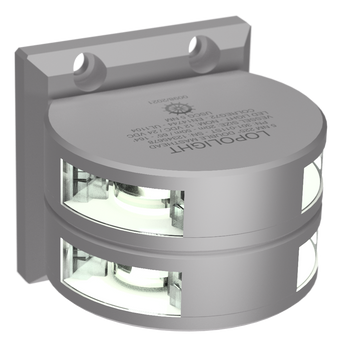

Lopolight NL301-011ST 5nm Masthead, Double Vertical Mount Lopolight NL301-011ST 5nm Masthead, Double Vertical Mount
Lopolight NL301-011ST 5nm Masthead, Double Vertical Mount (lopolight.com image) Lopolight NL301-011ST 5nm Masthead, Double Vertical Mount (lopolight.com image)
Lopolight NL301-011ST 5nm Masthead, Double Vertical Mount
Lopolight NL301-011ST 5nm Masthead, Double Vertical Mount (lopolight.com image)

Lopolight

Lopolight NL301-011ST 5nm Masthead, Double Vertical Mount

£2,198.44
Tax included. Shipping calculated at checkout.
NL301-011ST
Lopolight 5nm Masthead, Double Vertical Mount (NL301-011ST): LED navigation light, 5 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 5nm Masthead, Double Vertical Mount (part number NL301-011ST) is an LED navigation light from Lopolight of Denmark.

Key points: 5 nm visibility. It operates from 10-32 VDC and draws 4.1 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: 20-50M.

Supplied with: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide.

PRODUCT DETAILS

  • 5 nm visibility (>52cd)
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 0.7m cable
  • 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

No specifications available for this product.

No videos available for this product.

What is the visibility range of the Lopolight NL301-011ST?
Lopolight specifies 5 nautical mile(s) visibility with intensity >52cd for this part.
What supply voltage does the Lopolight NL301-011ST need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 4.1 W.
Which approvals does the Lopolight NL301-011ST carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
