Lopolight NL301-101 3nm 112.5° Starboard with 2.5m Cable Lopolight NL301-101 3nm 112.5° Starboard with 2.5m Cable
Lopolight NL301-101 3nm 112.5° Starboard with 2.5m Cable

Lopolight

Lopolight NL301-101 3nm 112.5° Starboard with 2.5m Cable

£938.83
Tax included. Shipping calculated at checkout.
NL301-101
Lopolight 3nm 112.5° Starboard with 2.5m Cable (NL301-101): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

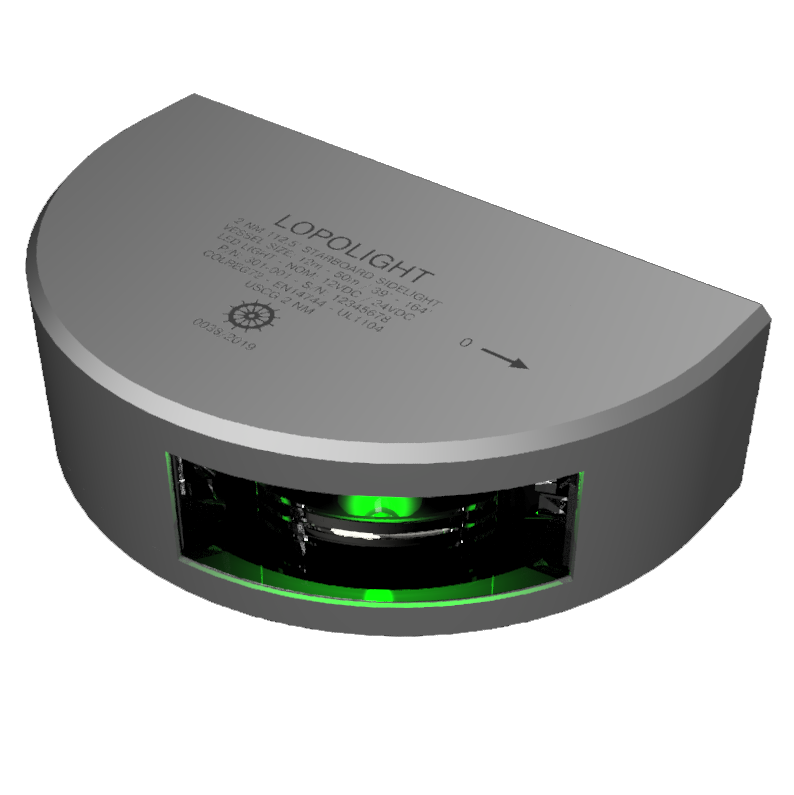

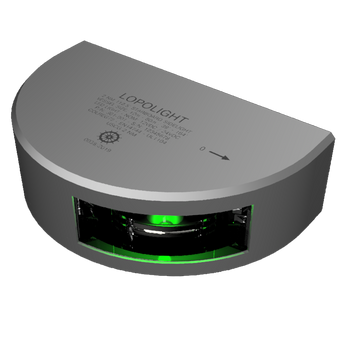

The Lopolight 3nm 112.5° Starboard with 2.5m Cable (part number NL301-101) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 112.5° light arc. It operates from 10-32 VDC and draws 2.3 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

Supplied with: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide.

PRODUCT DETAILS

  • 3 nm visibility (>15cd)
  • 112.5° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Vertical mounting
  • Connection: 2.5m cable
  • 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Intensity>15cd
Light arc112.5°

Electrical

Operating voltage10-32VDC
Power draw (W)2.3
Current consumption @ 12 VDC180 mA
Current consumption @ 24 VDC100 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingVertical
Dimensions92,5 x 28 x 49,7 mm
Connection2.5m cable
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Weight0.38 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Over 50M
Lopolight part number301-101
IMP part numberNL301-101
UPC879343013141
EAN5704438013148

No videos available for this product.

What is the visibility range of the Lopolight NL301-101?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL301-101 need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 2.3 W.
Which approvals does the Lopolight NL301-101 carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
