Lopolight NL301-105-B 3nm 135° Stern Light CD/CS Alu Base, Black Lopolight NL301-105-B 3nm 135° Stern Light CD/CS Alu Base, Black
Lopolight NL301-105-B 3nm 135° Stern Light CD/CS Alu Base, Black (lopolight.com image) Lopolight NL301-105-B 3nm 135° Stern Light CD/CS Alu Base, Black (lopolight.com image)
Lopolight NL301-105-B 3nm 135° Stern Light CD/CS Alu Base, Black
Lopolight NL301-105-B 3nm 135° Stern Light CD/CS Alu Base, Black (lopolight.com image)

Lopolight

Lopolight NL301-105-B 3nm 135° Stern Light CD/CS Alu Base, Black

£1,252.94
Tax included. Shipping calculated at checkout.
NL301-105-B
Lopolight 3nm 135° Stern Light CD/CS Alu Base, Black (NL301-105-B): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

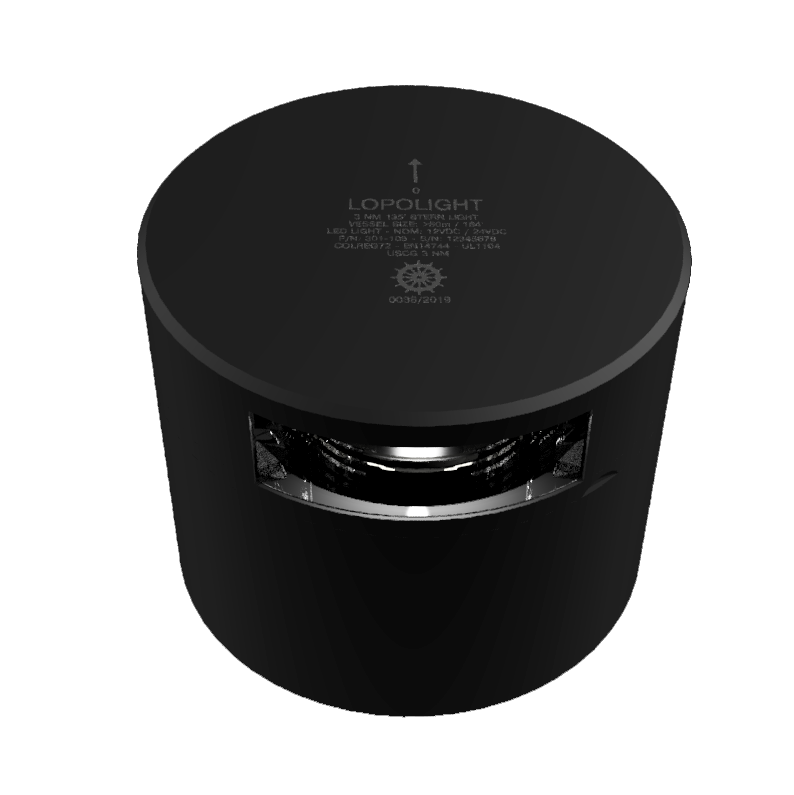

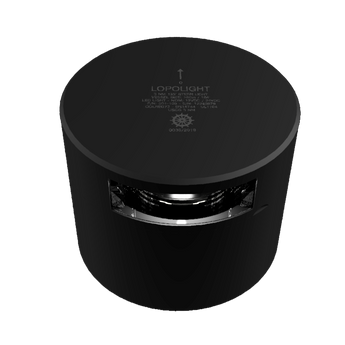

The Lopolight 3nm 135° Stern Light CD/CS Alu Base, Black (part number NL301-105-B) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 135° light arc. It operates from 10-32 VDC and draws 1.7 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

Supplied with: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide.

PRODUCT DETAILS

  • 3 nm visibility (>15cd)
  • 135° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Horizontal mounting
  • Connection: Plug connector
  • 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

No specifications available for this product.

No videos available for this product.

What is the visibility range of the Lopolight NL301-105-B?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL301-105-B need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 1.7 W.
Which approvals does the Lopolight NL301-105-B carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
