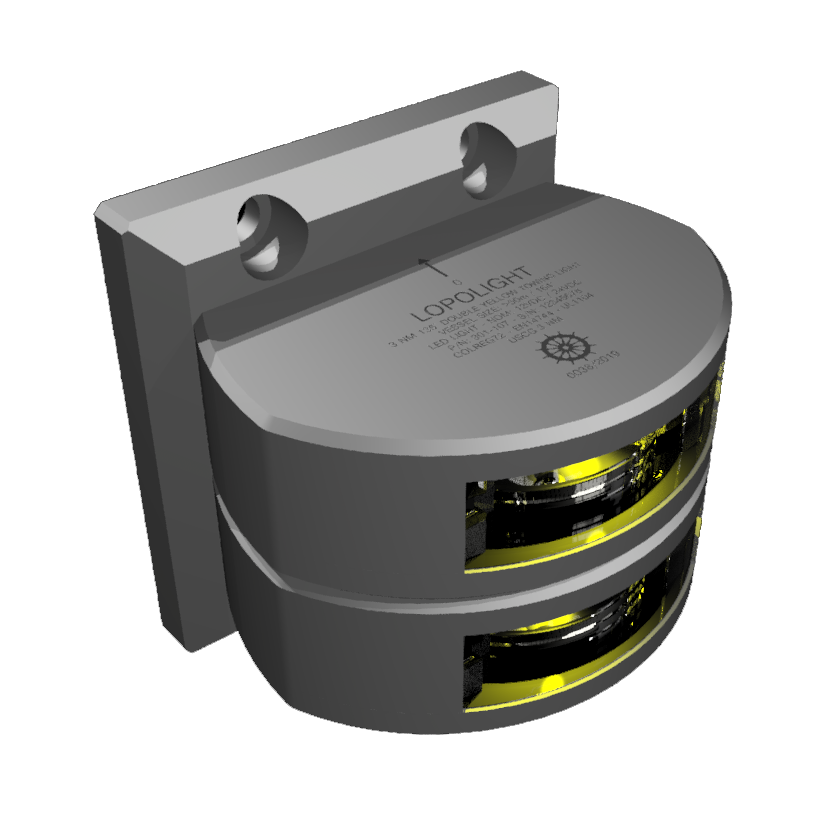

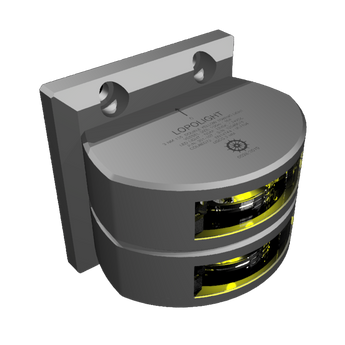

Lopolight NL301-107ST 3nm Double Amber Towing, Silver Anodized
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 3nm Double Amber Towing, Silver Anodized (part number NL301-107ST) is an LED navigation light from Lopolight of Denmark.
Key points: 3 nm visibility, amber light. It operates from 10-32 VDC and draws 2.2 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.
Supplied with: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide.
PRODUCT DETAILS
- 3 nm visibility (>15cd)
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Vertical mounting
- Connection: 2.5m cable
- 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 3nm |
| Visibility | 3nm |
| Intensity | >15cd |
| Intensity | >15cd |
| Light colour | Amber |
| Light colour | Amber |
Electrical
| Operating voltage | 10-32VDC |
| Operating voltage | 10-32VDC |
| Power draw (W) | 2.2 |
| Power draw (W) | 2.2 |
| Current consumption @ 12 VDC | 154 mA |
| Current consumption @ 12 VDC | 154 mA |
| Current consumption @ 24 VDC | 90 mA |
| Current consumption @ 24 VDC | 90 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Vertical |
| Mounting | Vertical |
| Dimensions | Ø92,5mm x 96,5mm |
| Dimensions | Ø92,5mm x 96,5mm |
| Connection | 2.5m cable |
| Connection | 2.5m cable |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Silver anodized |
| Housing finish | Silver anodized |
| Weight | 0.99 kg |
| Weight | 0.99 kg |
Environmental
| IP rating | IP68 |
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
General
| Vessel size (Lopolight range) | Over 50M |
| Vessel size (Lopolight range) | Over 50M |
| Lopolight part number | 301-107ST |
| Lopolight part number | 301-107ST |
| IMP part number | NL301-107ST |
| IMP part number | NL301-107ST |
| UPC | 879343014391 |
| UPC | 879343014391 |
| EAN | 5704438014398 |
| EAN | 5704438014398 |
