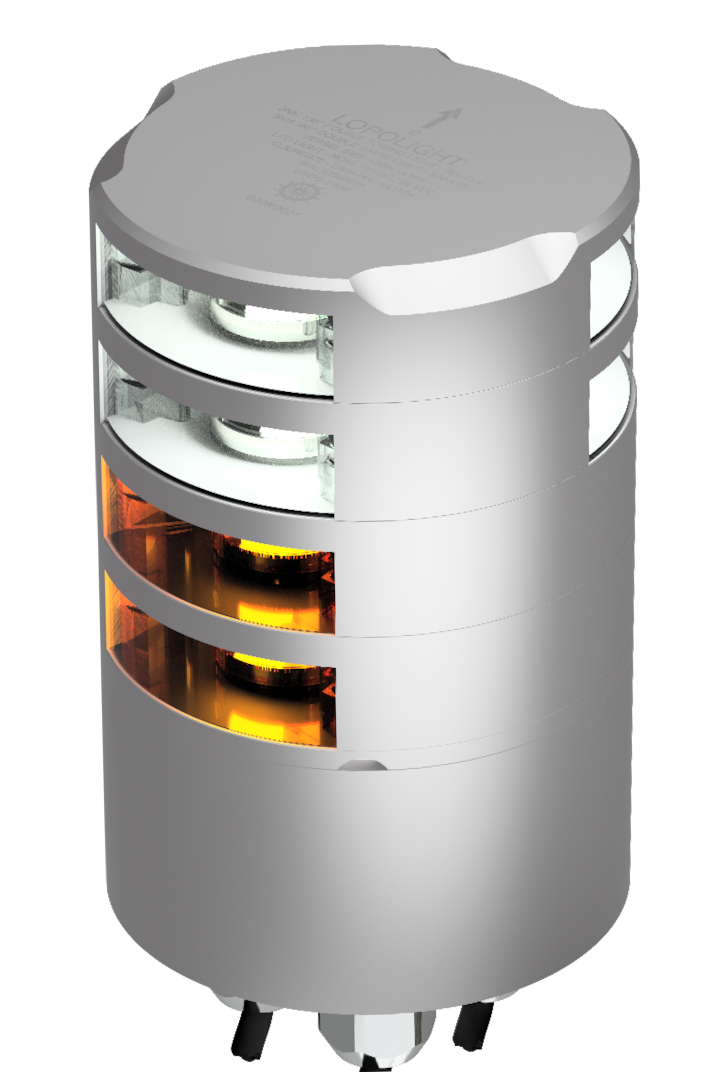

Lopolight NL301-113ST+112G2ST 3nm Double towing+Double 360° White, Silver Anodized Lopolight NL301-113ST+112G2ST 3nm Double towing+Double 360° White, Silver Anodized
Lopolight NL301-113ST+112G2ST 3nm Double towing+Double 360° White, Silver Anodized

Lopolight

Lopolight NL301-113ST+112G2ST 3nm Double towing+Double 360° White, Silver Anodized

£4,174.61
Tax included. Shipping calculated at checkout.
NL301-113ST+112G2ST
Lopolight 3nm Double towing+Double 360° White, Silver Anodized (NL301-113ST+112G2ST): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Lopolight 3nm Double towing+Double 360° White, Silver Anodized (part number NL301-113ST+112G2ST) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 360° light arc, white light. It operates from 10-32 VDC and draws 2.2 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

PRODUCT DETAILS

  • 3 nm visibility (>15cd)
  • 360° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
  • Horizontal mounting
  • Connection: Plug connector

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Visibility3nm
Intensity>15cd
Intensity>15cd
Light arc360°
Light arc360°
Light colourWhite
Light colourWhite

Electrical

Operating voltage10-32VDC
Operating voltage10-32VDC
Power draw (W)2.2
Power draw (W)2.2
Current consumption @ 12 VDC154 mA
Current consumption @ 12 VDC154 mA
Current consumption @ 24 VDC90 mA
Current consumption @ 24 VDC90 mA
Minimum feed wire gauge0.5mm2 AWG22
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingHorizontal
MountingHorizontal
DimensionsØ92,5mm x 140,5mm
DimensionsØ92,5mm x 140,5mm
ConnectionPlug connector
ConnectionPlug connector
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
MaterialsSilver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishSilver anodized
Housing finishSilver anodized
Weight1.3 kg
Weight1.3 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

Approvals

Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Approved toCOLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

General

Vessel size (Lopolight range)Over 50M
Vessel size (Lopolight range)Over 50M
Lopolight part number301-113ST+112G2ST
Lopolight part number301-113ST+112G2ST
IMP part numberNL301-113ST+112G2ST
IMP part numberNL301-113ST+112G2ST
UPC879343019037
UPC879343019037
EAN5704438018907
EAN5704438018907

No videos available for this product.

What is the visibility range of the Lopolight NL301-113ST+112G2ST?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL301-113ST+112G2ST need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 2.2 W.
Which approvals does the Lopolight NL301-113ST+112G2ST carry?
Lopolight lists approvals to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR. Declarations of conformity and certificates are published on lopolight.com under Support.
