Lopolight

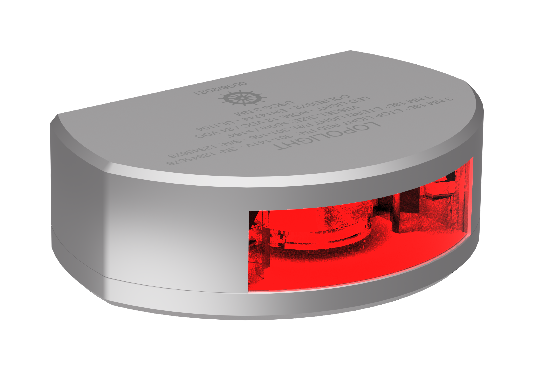

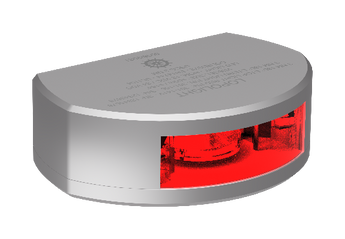

Lopolight NL301-141V 3nm 135° Red Stop Light, Vertical Mount
£1,277.98
/
Tax included.
Shipping calculated at checkout.
NL301-141V
Lopolight 3nm 135° Red Stop Light, Vertical Mount (NL301-141V): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 3nm 135° Red Stop Light, Vertical Mount (part number NL301-141V) is an LED navigation light from Lopolight of Denmark.
Key points: 3 nm visibility, 135° light arc, red light. It operates from 10-32 VDC and draws 2.5 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to IEC 60945 (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.
PRODUCT DETAILS
- 3 nm visibility (>15cd)
- 135° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Approvals: IEC 60945
- Vertical mounting
- Connection: 0.7m cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 3nm |
| Intensity | >15cd |
| Light arc | 135° |
| Light colour | Red |
Electrical
| Operating voltage | 10-32VDC |
| Power draw (W) | 2.5 |
| Current consumption @ 12 VDC | 180 mA |
| Current consumption @ 24 VDC | 60 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Vertical |
| Dimensions | 86,2 x 28 x 57,75 mm |
| Connection | 0.7m cable |
| Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Weight | 0.4 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | IEC 60945 |
General
| Vessel size (Lopolight range) | Over 50M |
| Lopolight part number | 301-141V |
| IMP part number | NL301-141V |
| UPC | 879343013691 |
| EAN | 5704438013698 |
No videos available for this product.
What is the visibility range of the Lopolight NL301-141V?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL301-141V need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 2.5 W.
Which approvals does the Lopolight NL301-141V carry?
Lopolight lists approvals to IEC 60945. Declarations of conformity and certificates are published on lopolight.com under Support.
