Lopolight NL301-141V-B 3nm 135° Red Stop Light, Vertical Mount, Black Lopolight NL301-141V-B 3nm 135° Red Stop Light, Vertical Mount, Black
Lopolight NL301-141V-B 3nm 135° Red Stop Light, Vertical Mount, Black

Lopolight

Lopolight NL301-141V-B 3nm 135° Red Stop Light, Vertical Mount, Black

£1,277.98
Tax included. Shipping calculated at checkout.
NL301-141V-B
Lopolight 3nm 135° Red Stop Light, Vertical Mount, Black (NL301-141V-B): LED navigation light, 3 nm visibility, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

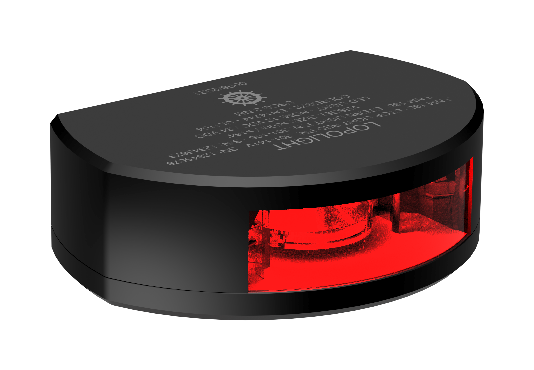

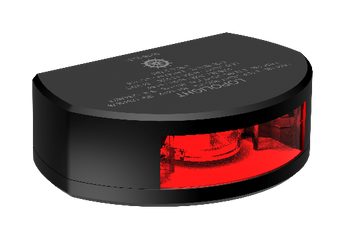

The Lopolight 3nm 135° Red Stop Light, Vertical Mount, Black (part number NL301-141V-B) is an LED navigation light from Lopolight of Denmark.

Key points: 3 nm visibility, 135° light arc, red light. It operates from 10-32 VDC and draws 2.5 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, vertical mounting. Approved to IEC 60945 (per Lopolight). Lopolight lists this part for vessel sizes: Over 50M.

PRODUCT DETAILS

  • 3 nm visibility (>15cd)
  • 135° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Approvals: IEC 60945
  • Vertical mounting
  • Connection: 0.7m cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Visibility3nm
Intensity>15cd
Light arc135°
Light colourRed

Electrical

Operating voltage10-32VDC
Power draw (W)2.5
Current consumption @ 12 VDC180 mA
Current consumption @ 24 VDC60 mA
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingVertical
Dimensions86,2 x 28 x 57,75 mm
Connection0.7m cable
MaterialsBlack anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Housing finishBlack anodized
Weight0.4 kg

Environmental

IP ratingIP68
Operating temperature-25°C to 55°C

Approvals

Approved toIEC 60945

General

Vessel size (Lopolight range)Over 50M
Lopolight part number301-141V-B
IMP part numberNL301-141V-B
UPC879343013738
EAN5704438013735

No videos available for this product.

What is the visibility range of the Lopolight NL301-141V-B?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL301-141V-B need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 2.5 W.
Which approvals does the Lopolight NL301-141V-B carry?
Lopolight lists approvals to IEC 60945. Declarations of conformity and certificates are published on lopolight.com under Support.
