Lopolight

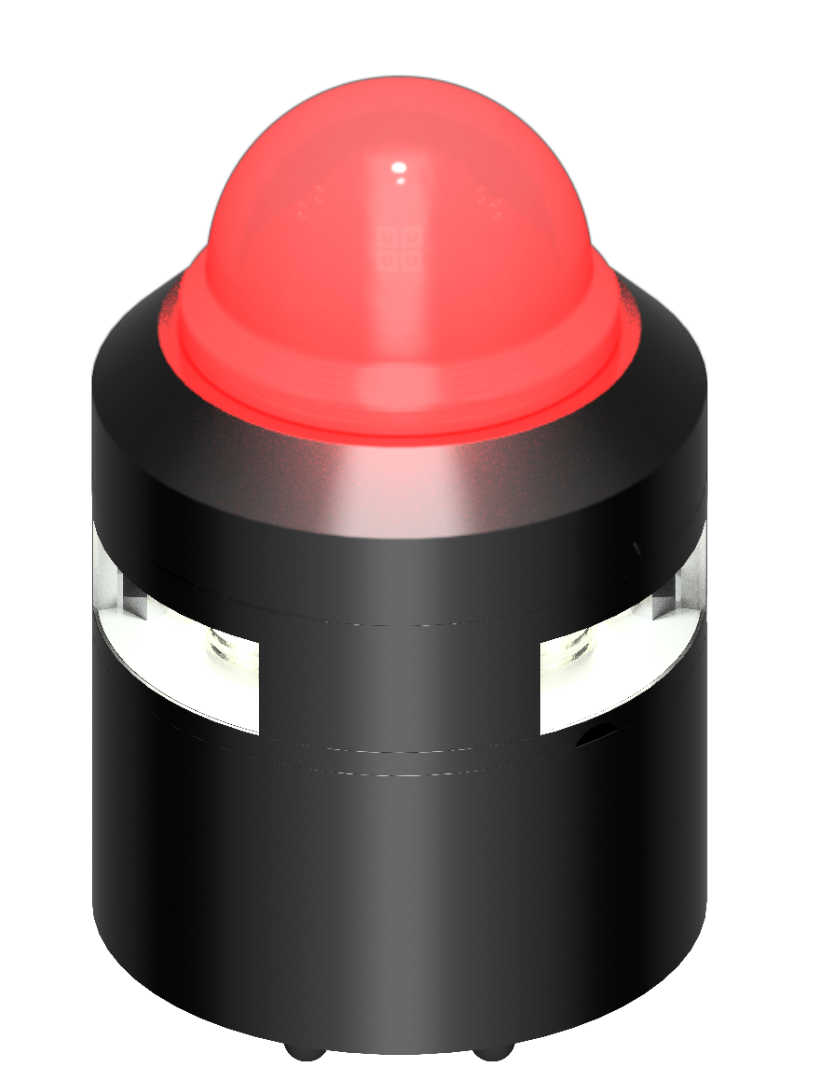

Lopolight NL301-411+200-012G2S-B Red Obstruction + 360° White/strobe, Black
£2,066.26
/
Tax included.
Shipping calculated at checkout.
NL301-411+200-012G2S-B
Lopolight Red Obstruction + 360° White/strobe, Black (NL301-411+200-012G2S-B): LED navigation light, 3 nm visibility, 20-32 VDC, IP68.
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight Red Obstruction + 360° White/strobe, Black (part number NL301-411+200-012G2S-B) is an LED navigation light from Lopolight of Denmark.
Key points: 3 nm visibility, 360° light arc. It operates from 20-32 VDC and draws 2.7 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to IEC 60945 (per Lopolight). Lopolight lists this part for vessel sizes: All Sizes.
PRODUCT DETAILS
- 3 nm visibility (>15cd)
- 360° light arc
- 20-32 VDC operating voltage
- IP68 protection
- Approvals: IEC 60945
- Horizontal mounting
- Connection: Plug connector
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 3nm |
| Intensity | >15cd |
| Light arc | 360° |
Electrical
| Operating voltage | 20-32VDC |
| Power draw (W) | 2.7 |
| Current consumption @ 12 VDC | 0 mA |
| Current consumption @ 24 VDC | 111 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Horizontal |
| Dimensions | Ø92,5mm x 138,5mm |
| Connection | Plug connector |
| Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Housing finish | Black anodized |
| Weight | 1.4 kg |
Environmental
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | IEC 60945 |
General
| Vessel size (Lopolight range) | All Sizes |
| Lopolight part number | 301-411+200-012G2S-B |
| IMP part number | NL301-411+200-012G2S-B |
| UPC | 879343013752 |
| EAN | 5704438013759 |
No videos available for this product.
What is the visibility range of the Lopolight NL301-411+200-012G2S-B?
Lopolight specifies 3 nautical mile(s) visibility with intensity >15cd for this part.
What supply voltage does the Lopolight NL301-411+200-012G2S-B need?
Lopolight lists an operating voltage of 20-32 VDC with a power draw of 2.7 W.
Which approvals does the Lopolight NL301-411+200-012G2S-B carry?
Lopolight lists approvals to IEC 60945. Declarations of conformity and certificates are published on lopolight.com under Support.
