Lopolight

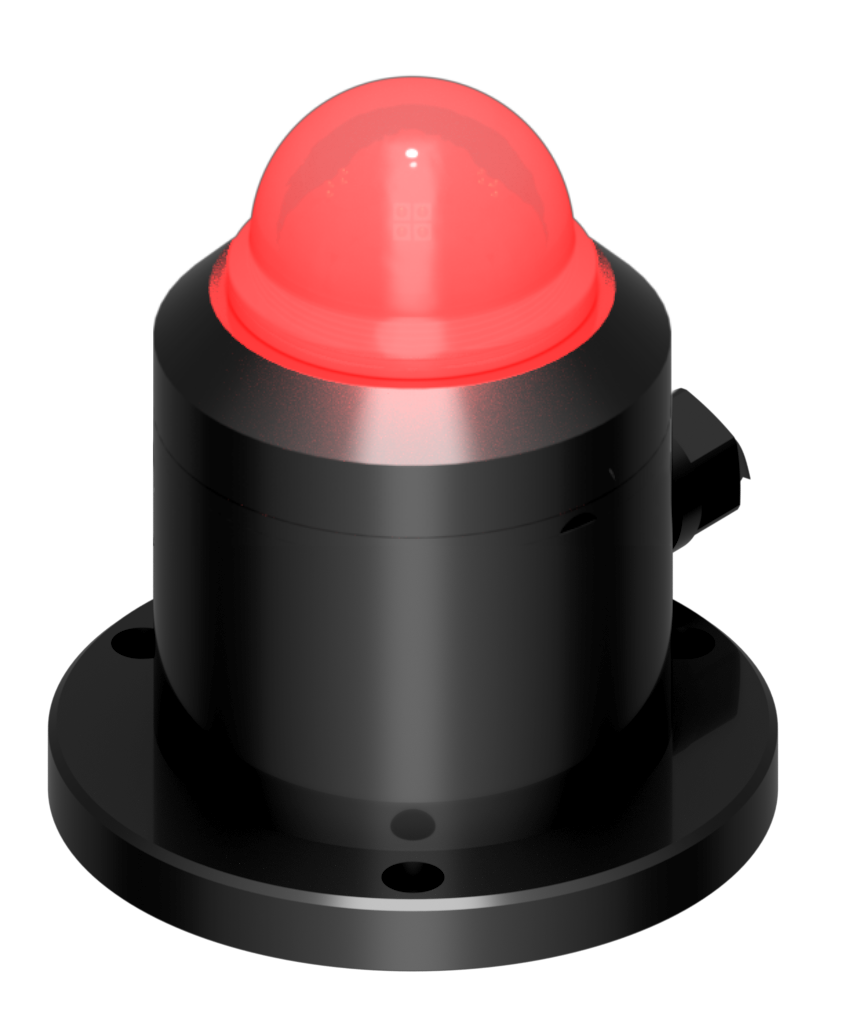

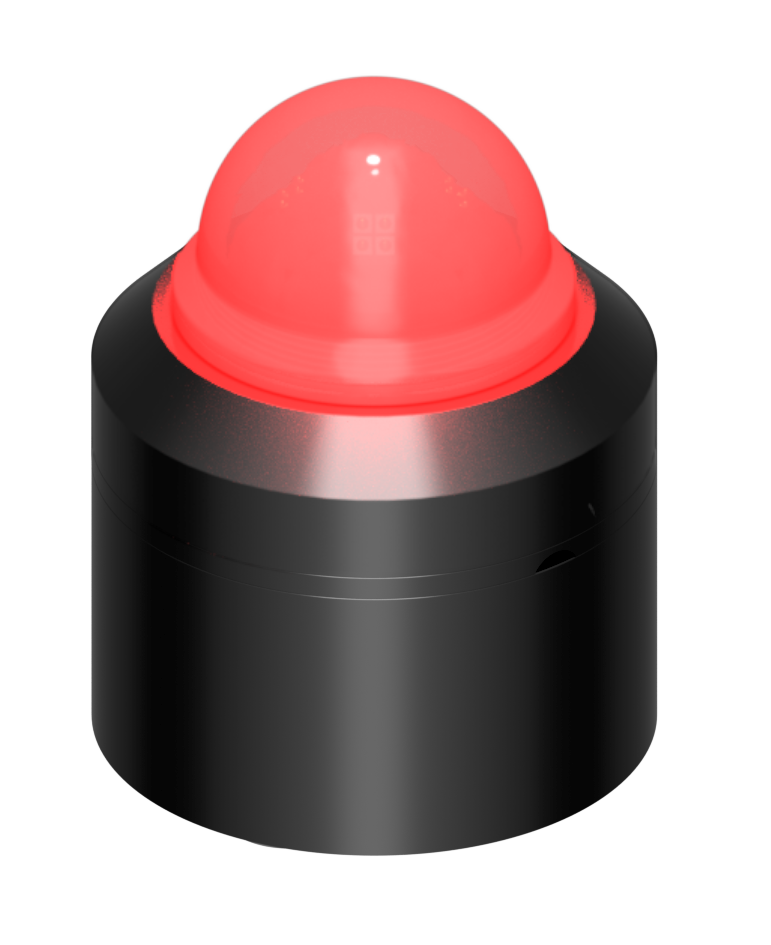

Lopolight NL301-411-B 360° Hor + Hemispherical View - Red Obstruction, 3nm, Black with 0.7m Cable
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Lopolight 360° Hor + Hemispherical View - Red Obstruction, 3nm, Black with 0.7m Cable (part number NL301-411-B) is an LED navigation light from Lopolight of Denmark.
Key points: 3 nm visibility, 360° light arc, red light. It operates from 20-32 VDC. Lopolight lists it as IP67 rated, operating temperature -25°C to 55°C, horizontal mounting. Approved to COLREG72, IEC 60945, USCG (per Lopolight). Lopolight lists this part for vessel sizes: 20-50M, Over 50M.
Supplied with: 1 Navigation light, Installation guide.
PRODUCT DETAILS
- 3 nm visibility
- 360° light arc
- 20-32 VDC operating voltage
- IP67 protection
- Approvals: COLREG72, IEC 60945, USCG
- Horizontal mounting
- Connection: Plug connector
- 1 Navigation light, Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Visibility | 3nm |
| Light arc | 360° |
| Light colour | Red |
Electrical
| Operating voltage | 20-32VDC |
| Current consumption @ 12 VDC | 0 mA |
| Current consumption @ 24 VDC | 350 mA |
Mechanical
| Mounting | Horizontal |
| Connection | Plug connector |
| Housing finish | Black anodized |
| Weight | 1.12 kg |
Environmental
| IP rating | IP67 |
| Operating temperature | -25°C to 55°C |
Approvals
| Approved to | COLREG72,IEC 60945,USCG |
General
| Vessel size (Lopolight range) | 20-50M,Over 50M |
| Lopolight part number | 301-411-B |
| IMP part number | NL301-411-B |
| UPC | 879343038014 |
| EAN | 5704438037885 |
