Lopolight
Lopolight NL400-083-36 10M 6W Spreader Light, Dimmable, 36° Reflector 10m Cable
£476.00
/
Tax included.
Shipping calculated at checkout.
NL400-083-36 10M
Lopolight 6W Spreader Light, Dimmable, 36° Reflector 10m Cable (NL400-083-36 10M): LED deck / spreader light, 10-32 VDC, IP68.
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

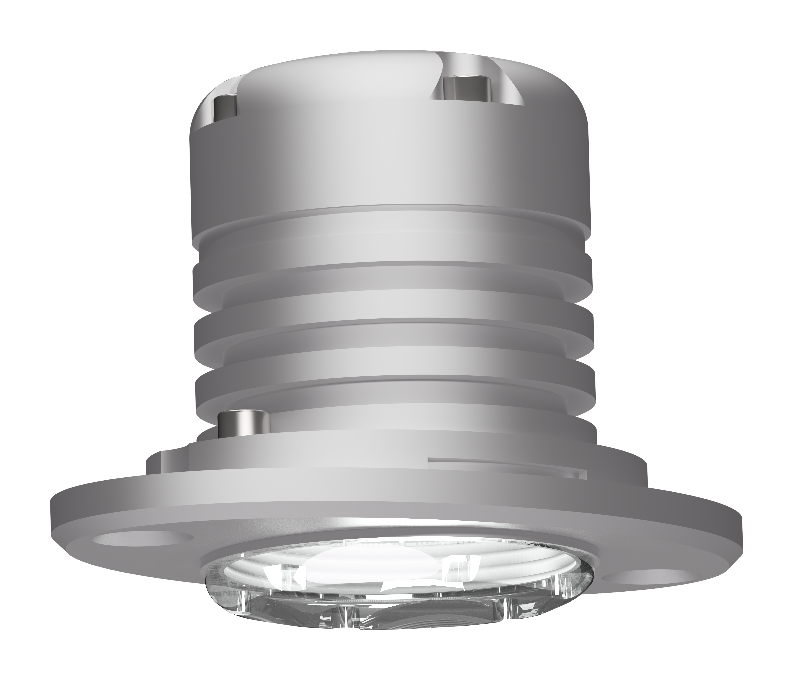

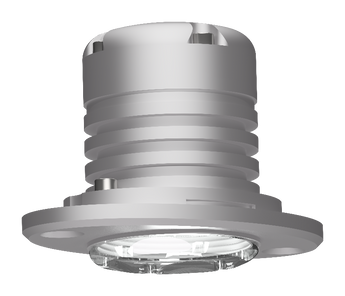

The Lopolight 6W Spreader Light, Dimmable, 36° Reflector 10m Cable (part number NL400-083-36 10M) is an LED deck / spreader light from Lopolight of Denmark.
Key points: 36° light arc. It operates from 10-32 VDC and draws 6 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, flush mounting.
Supplied with: Installation guide.
PRODUCT DETAILS
- 36° light arc
- 10-32 VDC operating voltage
- IP68 protection
- Flush mounting
- Connection: 10m cable
- Installation guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Light arc | 36° |
| Light arc | 36° |
Electrical
| Operating voltage | 10-32VDC |
| Operating voltage | 10-32VDC |
| Power draw (W) | 6 |
| Power draw (W) | 6 |
| Current consumption @ 12 VDC | 500 mA |
| Current consumption @ 12 VDC | 500 mA |
| Current consumption @ 24 VDC | 270 mA |
| Current consumption @ 24 VDC | 270 mA |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
| Minimum feed wire gauge | 0.5mm2 AWG22 |
Mechanical
| Mounting | Flush |
| Mounting | Flush |
| Connection | 10m cable |
| Connection | 10m cable |
| Weight | 1.22 kg |
| Weight | 1.22 kg |
Environmental
| IP rating | IP68 |
| IP rating | IP68 |
| Operating temperature | -25°C to 55°C |
| Operating temperature | -25°C to 55°C |
General
| Lopolight part number | 400-083-36 10M |
| Lopolight part number | 400-083-36 10M |
| IMP part number | NL400-083-36 10M |
| IMP part number | NL400-083-36 10M |
| UPC | 879343013585 |
| UPC | 879343013585 |
| EAN | 5704438013582 |
| EAN | 5704438013582 |
No videos available for this product.
What supply voltage does the Lopolight NL400-083-36 10M need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 6 W.
