Lopolight NL400-083-36-B 6W Spreader Light, Dimmable, 36° Reflector Black Lopolight NL400-083-36-B 6W Spreader Light, Dimmable, 36° Reflector Black
Lopolight NL400-083-36-B 6W Spreader Light, Dimmable, 36° Reflector Black

Lopolight

Lopolight NL400-083-36-B 6W Spreader Light, Dimmable, 36° Reflector Black

£415.18
Tax included. Shipping calculated at checkout.
NL400-083-36-B
Lopolight 6W Spreader Light, Dimmable, 36° Reflector Black (NL400-083-36-B): LED deck / spreader light, 10-32 VDC, IP68.

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

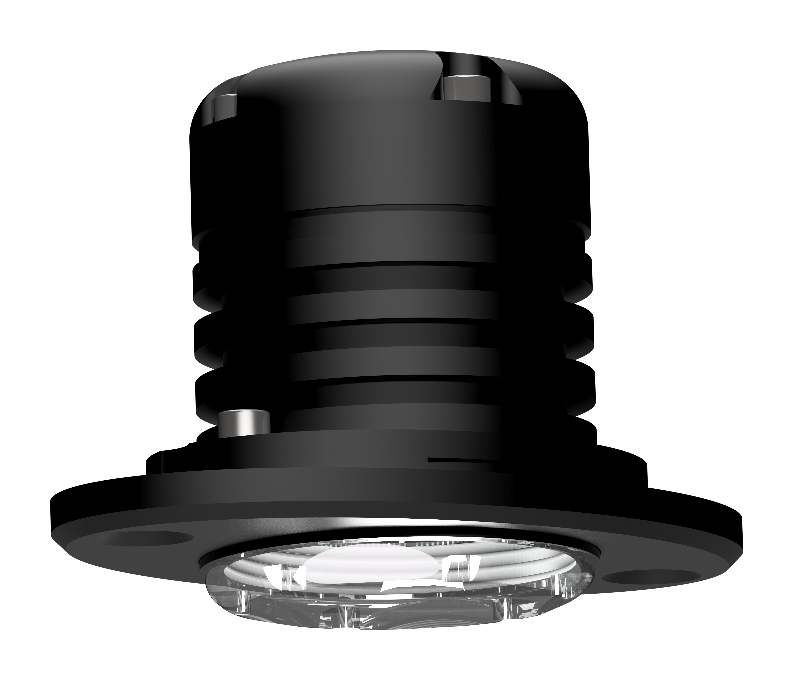

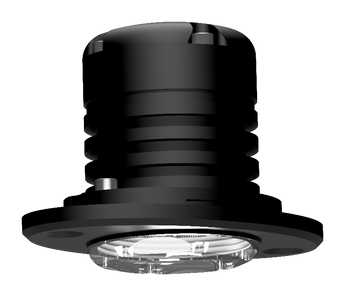

The Lopolight 6W Spreader Light, Dimmable, 36° Reflector Black (part number NL400-083-36-B) is an LED deck / spreader light from Lopolight of Denmark.

Key points: 36° light arc. It operates from 10-32 VDC and draws 6 W. Lopolight lists it as IP68 rated, operating temperature -25°C to 55°C, flush mounting.

Supplied with: Installation guide.

PRODUCT DETAILS

  • 36° light arc
  • 10-32 VDC operating voltage
  • IP68 protection
  • Flush mounting
  • Connection: 0.7m cable
  • Installation guide

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Performance

Light arc36°
Light arc36°

Electrical

Operating voltage10-32VDC
Operating voltage10-32VDC
Power draw (W)6
Power draw (W)6
Current consumption @ 12 VDC500 mA
Current consumption @ 12 VDC500 mA
Current consumption @ 24 VDC270 mA
Current consumption @ 24 VDC270 mA
Minimum feed wire gauge0.5mm2 AWG22
Minimum feed wire gauge0.5mm2 AWG22

Mechanical

MountingFlush
MountingFlush
Connection0.7m cable
Connection0.7m cable
Housing finishBlack anodized
Housing finishBlack anodized
Weight0.5 kg
Weight0.5 kg

Environmental

IP ratingIP68
IP ratingIP68
Operating temperature-25°C to 55°C
Operating temperature-25°C to 55°C

General

Lopolight part number400-083-36-B
Lopolight part number400-083-36-B
IMP part numberNL400-083-36-B
IMP part numberNL400-083-36-B
UPC879343013578
UPC879343013578
EAN5704438013575
EAN5704438013575

No videos available for this product.

What supply voltage does the Lopolight NL400-083-36-B need?
Lopolight lists an operating voltage of 10-32 VDC with a power draw of 6 W.
