Lowrance
Lowrance TripleShot Skimmer Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
TripleShot Skimmer® Transducer for HOOK² / Reveal
You will cover more water in less time and find fish and structure more easily with TripleShot 3-in-1 sonar. The TripleShot Skimmer® Transducer features wide-angle, High CHIRP sonar with double the sonar coverage of most fish finders, plus SideScan and DownScan Imaging™, offering views beneath and to the sides of your boat.
HOOK² / Reveal TripleShot Skimmer Transducer
Key features
- Supports High CHIRP/200kHz, SideScan and DownScan Imaging™ (455/800kHz)
- Wide-angle CHIRP provides double the sonar coverage of most fishfinders
- Get picture-like views of structure beneath and to the sides of your boat with SideScan and DownScan Imaging™
- Built-in temperature sensor
PRODUCT DETAILS
- Supports High CHIRP/200kHz, SideScan and DownScan Imaging™ (455/800kHz)
- Wide-angle CHIRP provides double the sonar coverage of most fishfinders
- Get picture-like views of structure beneath and to the sides of your boat with SideScan and DownScan Imaging™
- Built-in temperature sensor

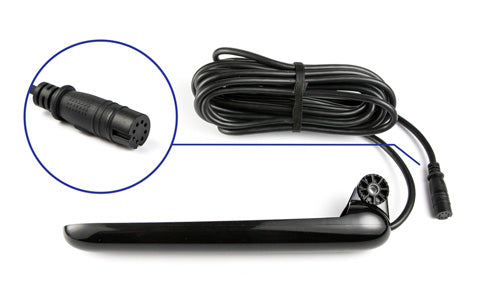

- Lowrance TripleShot Skimmer transom-mount transducer (6.1 m cable, 8-pin connector)
- Transom mounting hardware
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
Sonar Capability
| Downscan | Yes |
| Sidescan | Yes |
| Chirp | Yes |
| Traditional | Yes |
Sonar
| Sonar Types | Wide-angle High CHIRP 2D + SideScan + DownScan Imaging |
| Operating Frequency | High CHIRP / 200 kHz (2D) + 455 / 800 kHz (SideScan & DownScan) |
| Beamwidth (2D) | 40° |
| Maximum Depth (2D) | Up to 152 m (500 ft) |
| Maximum Depth (DownScan) | Up to 91 m (300 ft) |
| SideScan Range | Up to 183 m (600 ft) side to side |
| Functions | Depth and water temperature (built-in) |
Physical
| Mount Type | Transom |
| Cable Length | 6.1 m (20 ft) |
Connectivity
| Connector | 8-pin |
Compatibility
| Compatible Displays | HOOK2 and HOOK Reveal TripleShot units |
