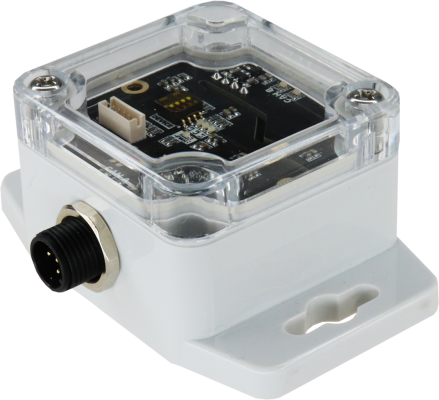

LXNav CAN2CAN Engine Data Gateway (J1939 to NMEA 2000)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The LXNAV CAN2CAN is an engine monitoring gateway that reads engine information from a J1939 network and converts it to the standard NMEA 2000 network, so engine data can be shown on LXNAV E-series displays or any compatible NMEA 2000 display or chartplotter.
LXNAV lists the converted data as including engine speed, oil and coolant temperatures and pressures, engine hours, fuel rate, battery voltage and a range of engine alarms. The unit has galvanic isolation between its two ports.
- Function: J1939 to NMEA 2000 gateway
- Supply voltage: 8-32 V
- Connector: M12 5-pin A-coded, standard NMEA 2000 pin-out
- Rating: IPX67
- Operating temperature: -20 to +65 °C
- Galvanic isolation; the J1939 port needs its own power supply (per LXNAV manual)
PRODUCT DETAILS
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Product details
| Country of origin | Slovenia |
| Commodity code | 9026102100 |
| Weight | 0.06 kg |
| Barcode (EAN) | 3830076030482 |
| Type | Engine data gateway, J1939 to NMEA 2000 |
