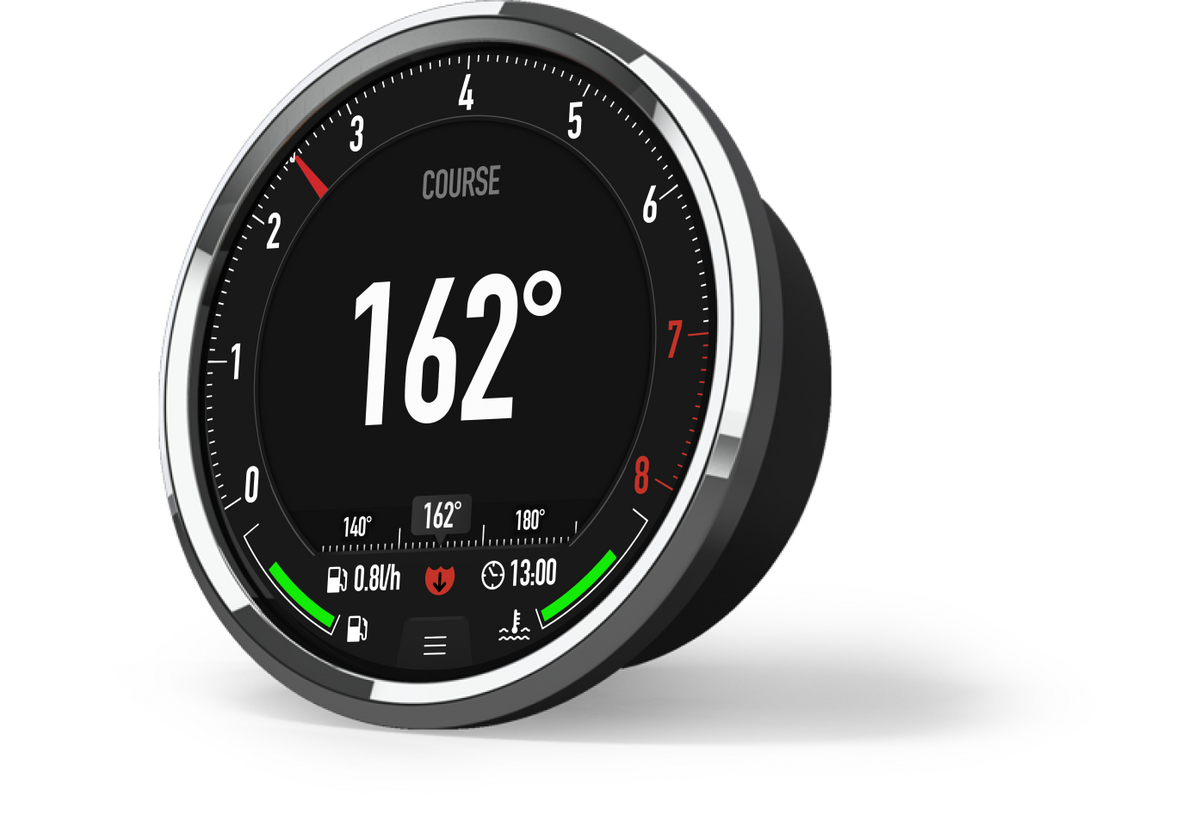

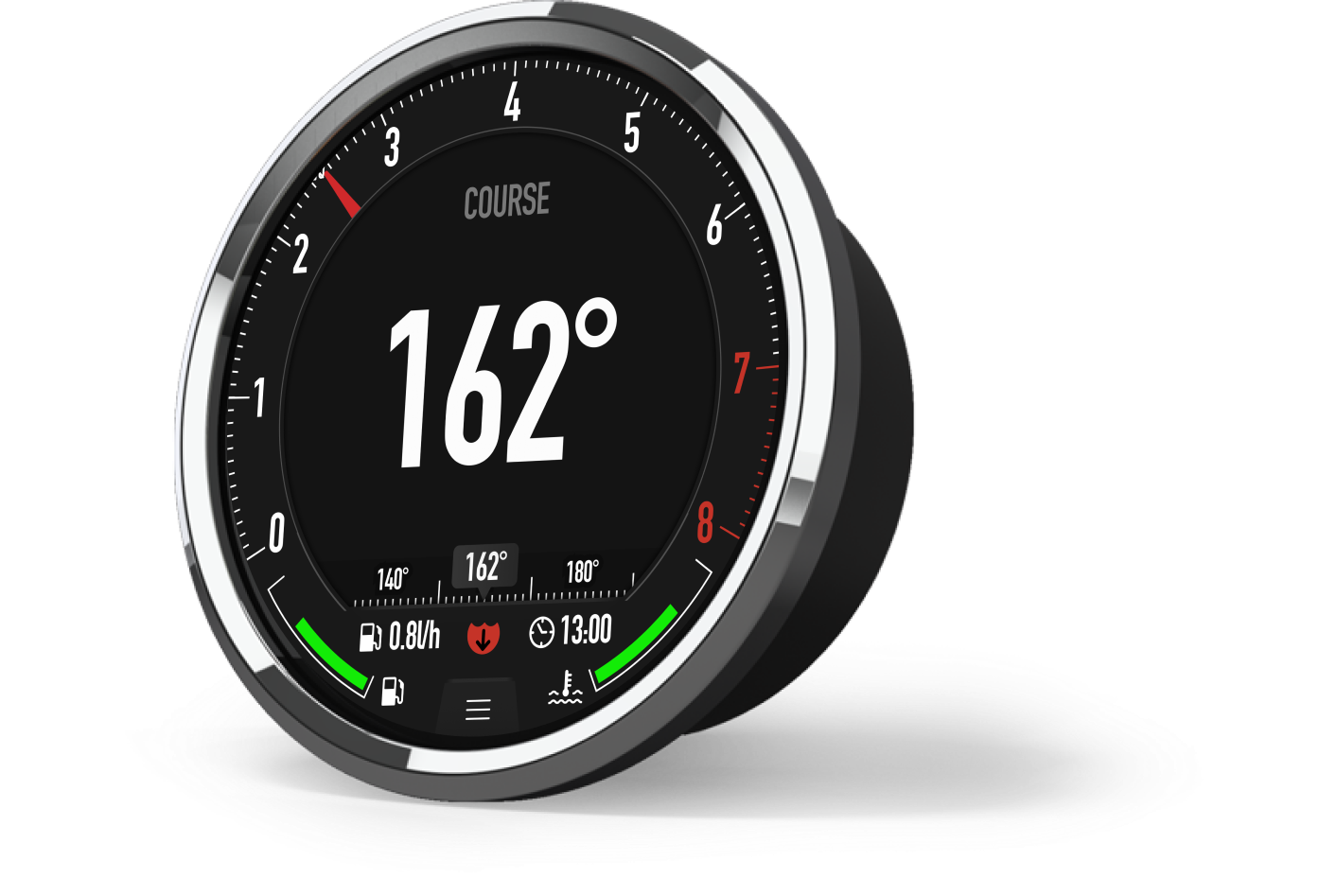

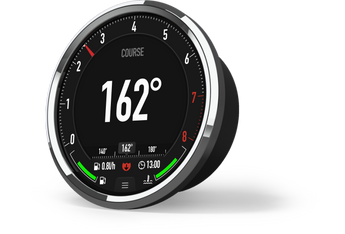

LXNav E360 E360 Touchscreen Gauge

The LXNAV E360 is a 4 inch round capacitive touchscreen gauge that combines instrument displays with a chartplotter. It reads data from NMEA 2000 devices such as engines, depth sensors, fluid level sensors and battery shunts, with a sunlight-readable display.

LXNAV lists engine monitoring (single or dual engine), fluid levels, battery status via an LXNAV SmartSHUNT or other compatible NMEA 2000 shunt, anchor watch, an integrated OpenSeaMap chart (with Navionics charts supported through an SD card) and an iAssist function that switches screens based on priority. An optional Jog Wheel is available for control.

• Display: 4" capacitive touchscreen, 720 x 720 pixels
• Voltage: 8-32 V DC; 360 mA at 12 V
• Rating: IPX6
• Operating temperature: -20 to +60 °C
• Connections: 1 x NMEA 2000 (micro-C 5 pin), Wi-Fi, USB-C, microSD card slot
• Supplied with quick start guide and mounting hardware
