This product has been discontinued by Simrad and is no longer available to buy.
Simrad

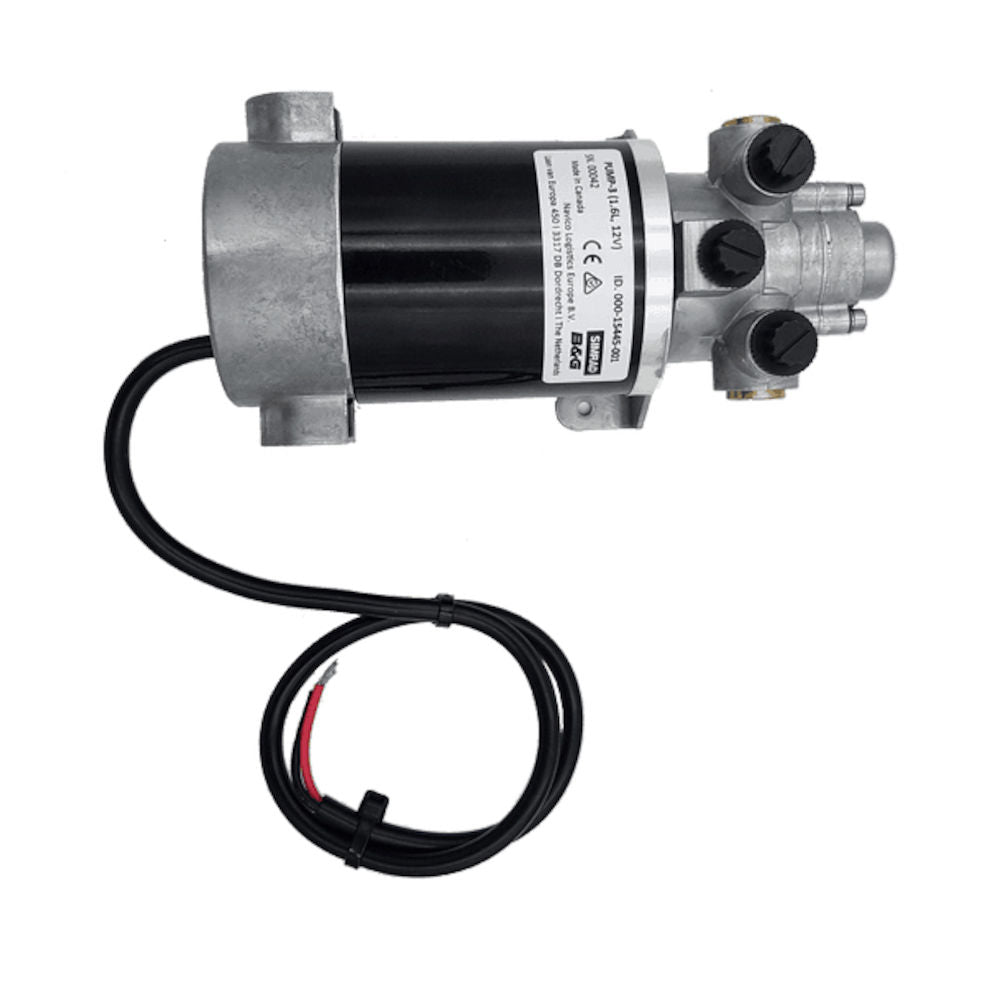

PUMP-3,12V,1.6L
Description
The Simrad PUMP-3 is a reversible hydraulic steering pump for boats up to 50 ft, working with the NAC-3 (or AC42) autopilot computer to drive the vessel's hydraulic steering as part of a complete autopilot system. The 12 V DC gear pump delivers a flow rate of 1.6 litres (98 cu in) per minute and is rated for hydraulic cylinder displacements between 160 and 550 cc.
It uses O-Ring Boss (ORB) connections and is supplied with three ORB-5 to 9/16 UNF fittings for straightforward plumbing into existing hydraulic steering. The PUMP-3 is SteadySteer compatible, allowing the helm to override automatic steering naturally when fitted to a suitable system.
PRODUCT DETAILS
- 12 V reversible hydraulic gear pump for boats up to 50 ft
- Flow rate 1.6 L/min for cylinder displacements of 160 to 550 cc
- O-Ring Boss (ORB) connections, includes 3 x ORB-5 to 9/16 UNF fittings
- Works with the NAC-3 / AC42 autopilot computer
- SteadySteer compatible
- Quiet, efficient hydraulic steering output
No exploded diagram available for this product.
No compatible transducers listed for this product.
Mechanical
| Type | Reversible hydraulic gear pump |
| Flow rate | 1.6 L (98 cu in) / min |
| Cylinder displacement range | 160 - 550 cc (9.8 - 33.5 cu in) |
| Connections | O-Ring Boss (ORB); includes 3 x ORB-5 to 9/16 UNF fittings |
Electrical
| Voltage | 12 V DC |
General
| Recommended boat length | Up to 50 ft |
| Compatibility | Requires NAC-3 / AC42 autopilot computer; SteadySteer compatible |
| Warranty | 2 years |
