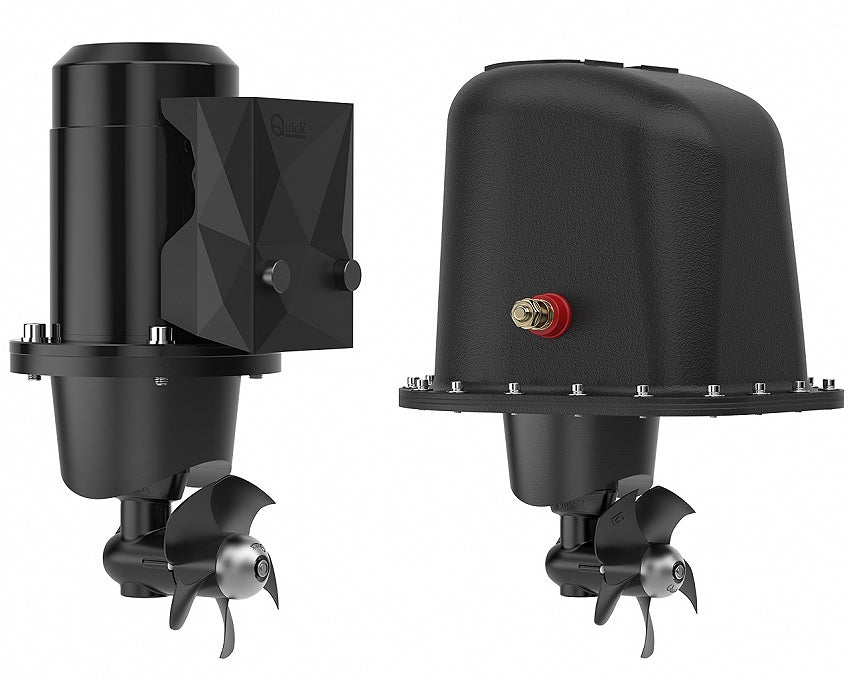

Quick FGBT11025120T00 BTQ110-25 bow thruster 25 kgf 12 V, two black thrusters, one with a protective cap

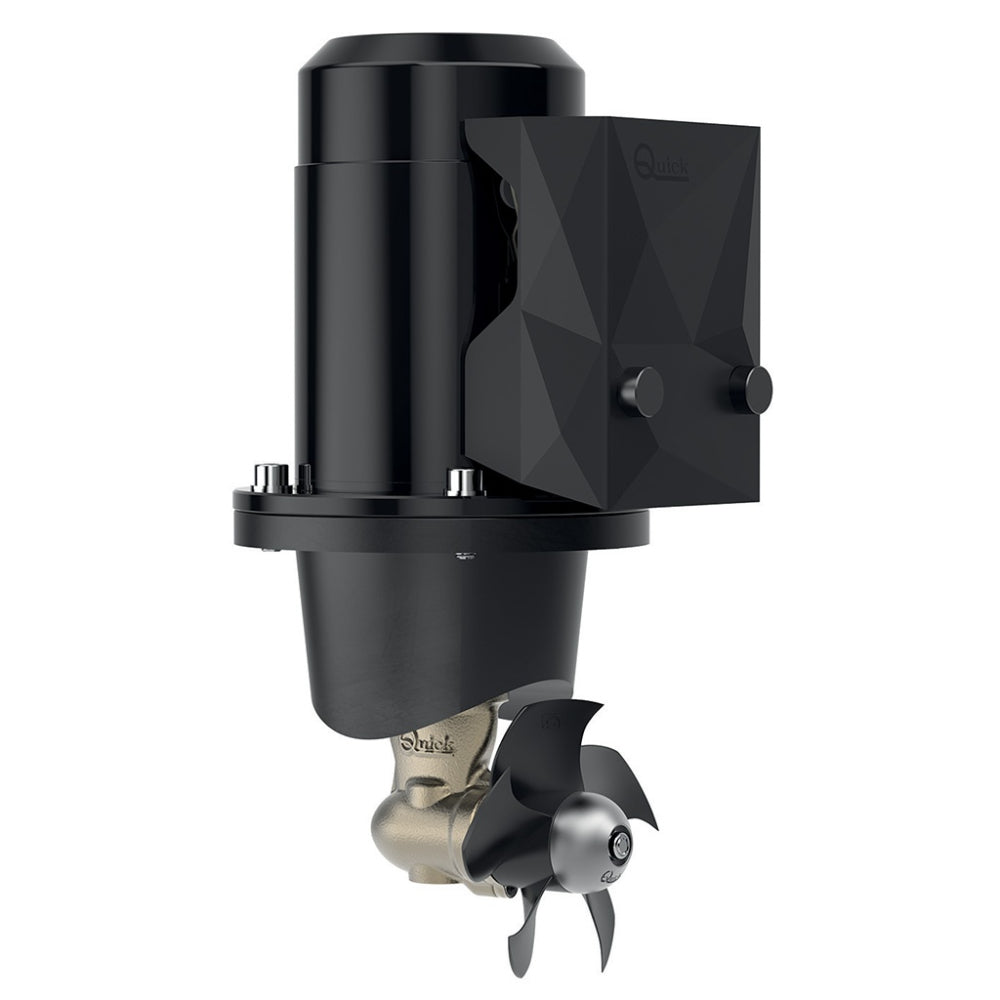

Quick FGBT11025120T00 BTQ110-25 bow thruster 25 kgf 12 V, black motor on a bracket above a bronze leg and propeller

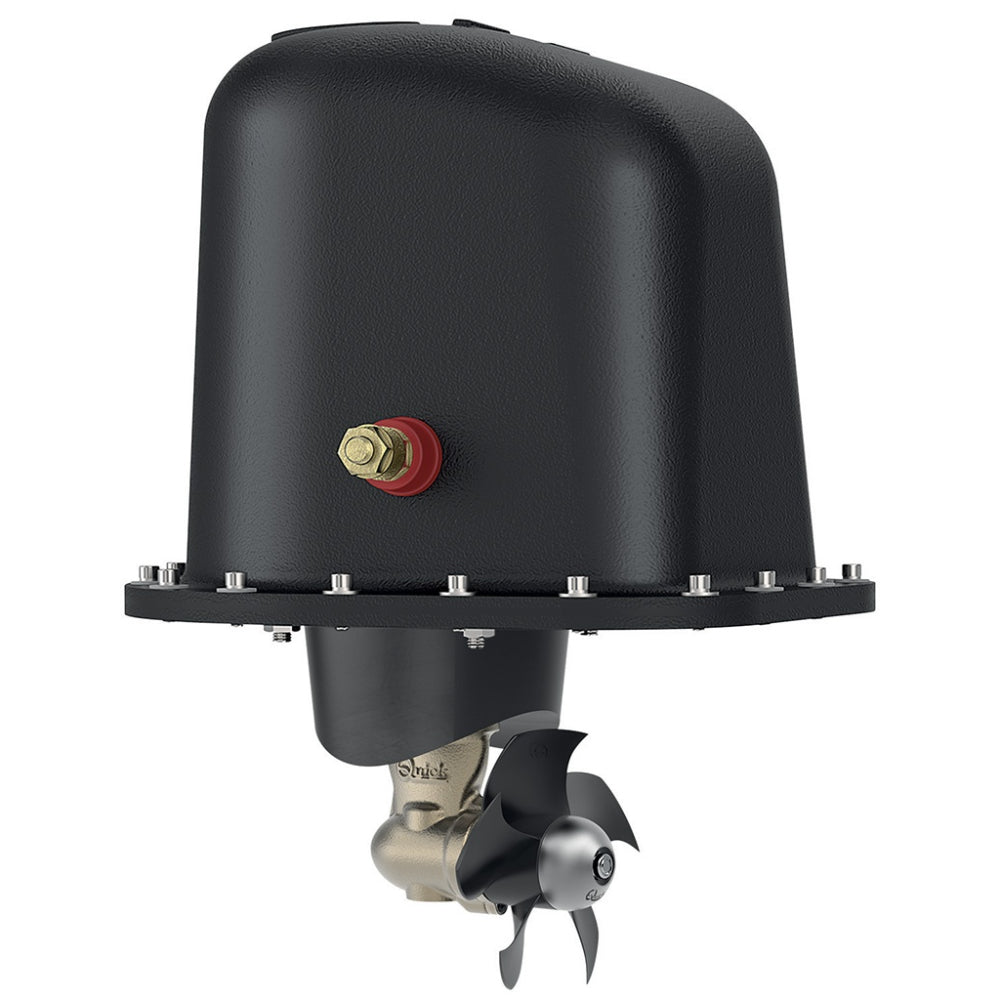

Quick FGBT11025120T00 BTQ110-25 bow thruster 25 kgf 12 V, black capped motor housing with a red terminal

Quick

Quick BTQ110-25 Bow Thruster (25 kgf, 12V, Ø110mm, 1.3kW)

Name: Quick BTQ110-25 Bow Thruster (25 kgf, 12V, Ø110mm, 1.3kW)
Brand: Quick
SKU: FGBT11025120T00
Price: 953.27 GBP
Availability: InStock

£953.27

Tax included. Shipping calculated at checkout.

FGBT11025120T00

Quantity

✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Quick BTQ110-25 is a DC bow thruster delivering 25 kgf of thrust from a 1.3kW motor on a 12V supply. It uses a single propeller and fits a 110mm diameter tunnel. Supplied as the thruster unit only.

PRODUCT DETAILS

25 kgf thrust
1.3kW motor
12V DC supply
Single propeller
Fits Ø110mm tunnel
Supplied as thruster unit only
Quick part number BTQ110-25 (FGBT11025120T00)

Quick BTQ110-25 Bow Thruster (25 kgf, 12V, Ø110mm, 1.3kW) exploded diagram

No.	Part name	Quick code	Buy link
1A	OSP MOT 1300W 12V BTQ 110+T	`FVEMFEL13120000`	Buy
1B	OSP MOT 1500W 12V BTQ 125+T	`FVEMFEL15120000`	Buy
1C	OSP MOT 2200W 12V BTQ125-140+T	`FVEMFEL22121400`	Buy
1D	OSP MOTOR 2200W 12V BTQ 125+T	`FVEMFEL22120000`
2	OSP REV. CONTACTOR BOX KIT T6411-12 BTQ	`FVST64111200A00`
3A	OSP CASING ‘A’ KIT BT BLACK	`FVSGCARBTQR1A00`	Buy
3B	OSP CASING ‘C’ KIT BT BLACK	`FVSGCARBTQR1C00`	Buy
4	OSP COUPLING HALF KIT BTQ 110/125 PL	`FVSGG110125PA00`	Buy
5	OSP PROPELLER FLANGE KIT BTQ110-125	`FVSGFLBTQ110A00`	Buy
6A	OSP GEARBOX KIT BTQ110	`FVSGGBBT1100A00`	Buy
6B	OSP GEARBOX KIT BTQ125	`FVSGGBBT1250A00`	Buy
7A	OSP PROPELLER KIT D110	`FVSGEL110000A00`	Buy
7B	OSP PROPELLER KIT D125	`FVSGEL125000A00`	Buy
8	OSP PROPELLER ANODE KIT BTQ110-125	`FVSGANBTQ110A00`	Buy
