Quick BTR QSY 185-100 Retractable Bow Thruster (100 kgf / 24V / Ø185mm / 8kW / Proportional (AMC))
£8,230.67
/
Tax included.
Shipping calculated at checkout.
FGBTRS181052A00
Quick BTR QSY 185-100 retractable bow thruster, 24V, 100 kgf, 185 mm tunnel, proportional control.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

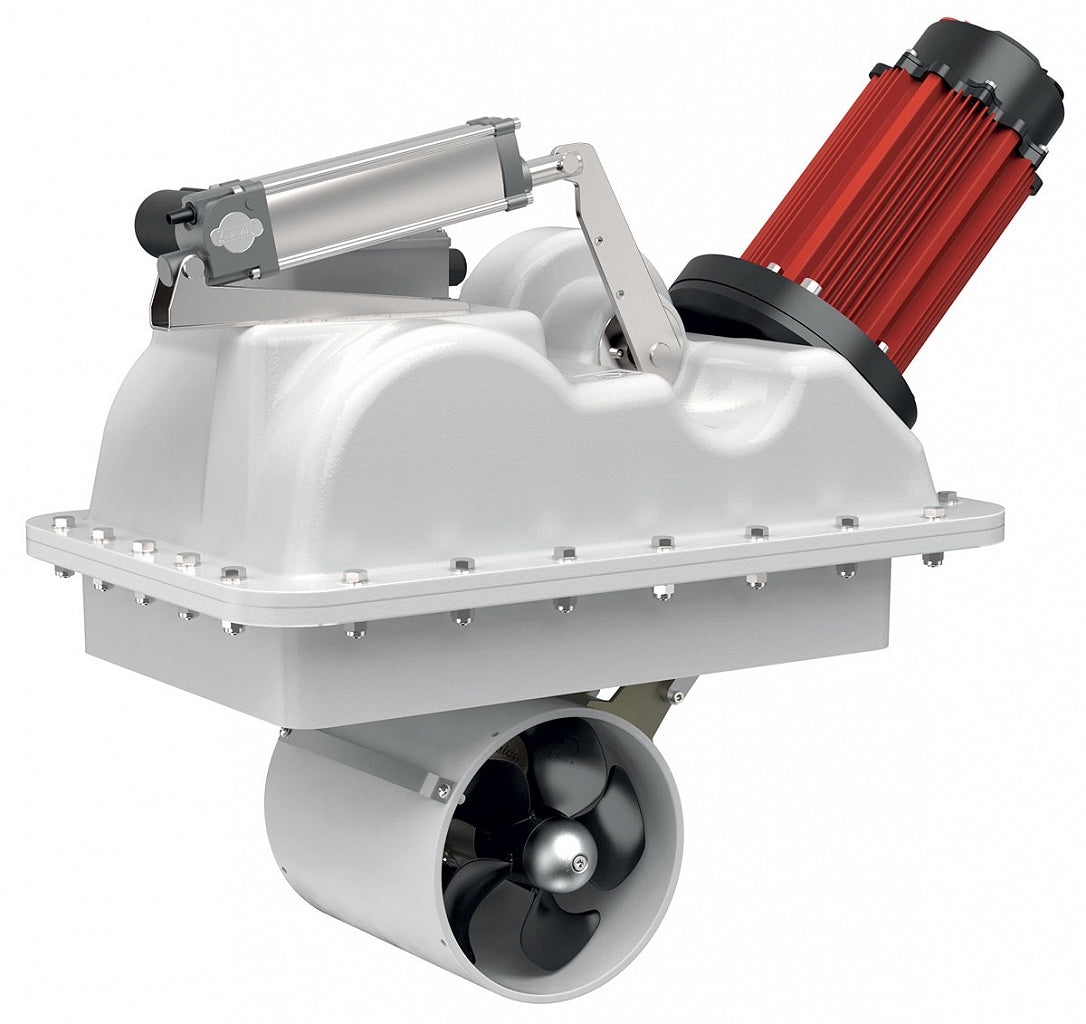

The Quick BTR QSY 185-100 is a 24V retractable bow thruster with twin counter-rotating propellers and a 8 kW synchronous (QSY) motor, giving 100 kgf of thrust in a 185 mm diameter tunnel. This is the proportional-control version.
Quick's QSY thrusters use a synchronous motor ('QSY - Quick Synchronous Motor'), which allows an extended duty rating in standard environmental conditions of up to 10 minutes continuous operation (quickitaly.com).
The retractable BTR QSY has a counter flange that is sold separately and can be supplied in composite, aluminium or steel; the motor is mounted to the structure inside the keel, and a single moving body crosses the in-out barrier. Quick describes high-quality materials (NiBrAl and AISI316) and high galvanic protection through sacrificial anodes (quickitaly.com).
Listed by Quick as the AMC version.
PRODUCT DETAILS
- 100 kgf thrust, 8 kW QSY synchronous motor, 24V
- Proportional control version
- 185 mm diameter tunnel, retractable design
- Up to 10 minutes continuous operation in standard conditions (QSY rating, per Quick)
- Genuine Quick part, part number FGBTRS181052A00
- Retractable thruster, O-ring, hinge, hatch bracket, steel wire rope, installation and user manual, warranty conditions (standard supply per Quick BTR QSY manual; counter flange sold separately)
| No. | Part name | Quick code | Buy link |
|---|---|---|---|
| 1A | OSP MOT KIT BTRSY 4KW 12V D185 PRP | FVEMRSY40118A00 | |
| 1B | OSP MOT KIT BTRSY 4KW 12V D185 ON-OFF | FVEMRSY40118B00 | |
| 1C | OSP MOT KIT SY 4KW 24V D185 PRP | FVEMSY402418A00 | |
| 1D | OSP MOT KIT SY 4KW 24V D185 ON-OFF | FVEMSY402418B00 | |
| 1E | OSP MOT KIT SY 8KW 24V D185 PRP | FVEMSY802418A00 | |
| 1F | OSP MOT KIT SY 8KW 24V D185 ON-OFF | FVEMSY802418B00 | |
| 2A | OSP MOT KIT SY 8KW 24V D250 PRP | FVEMSY802425A00 | |
| 2B | OSP MOT KIT SY 8KW 24V D250 ON-OFF | FVEMSY802425B00 | |
| 2C | OSP MOT KIT SY 16KW 48V D300 PRP | FVEMSY16K483A00 | |
| 2D | OSP MOT KIT SY 16KW 48V D300 ON-OFF | FVEMSY16K483B00 | |
| 3A | OSP FLANGE KIT BTR185 | FVEFGMBTR185000 | Buy |
| 3B | OSP FLANGE KIT BTR250D00 | FVEFGMBTR250000 | Buy |
| 3C | OSP FLANGE KIT BTR300 | FVEFGMBTR300000 | Buy |
| 4A | OSP CONSTANT VELOCITY JOINT Ø185 | FVSGG185BTR0A00 | Buy |
| 4B | OSP CONSTANT VELOCITY JOINT Ø250 | FVSGG250BTR0A00 | Buy |
| 4B | OSP CONSTANT VELOCITY JOINT Ø300 | FVSGG300BTR0A00 | Buy |
| 5A | OSP ACTUATOR 12V Ø185 | FVEAL1851200000 | Buy |
| 5B | OSP ACTUATOR 24V Ø185 | FVEAL1852400000 | Buy |
| 5C | OSP ACTUATOR 24V Ø250 | FVEAL2502400000 | Buy |
| 5D | OSP ACTUATOR 24V Ø300 | FVEAL3002400000 | Buy |
| 5E | OSP ACTUATOR 48V Ø300 | FVEAL3004800000 | Buy |
| 6B | OSP HINGE VERT. FIX. ANGLE BRACKET BTR185 | FVSLPVNG1850A00 | |
| 6C | OSP HINGE VERT. FIX. ANGLE BRACKET BTR250 | FVSLPVNG2500A00 | |
| 6D | OSP HINGE VERT. FIX. ANGLE BRACKET BTR300 | FVSLPVNG3000A00 | |
| 7A | OSP HINGE + SUPP. BRACKET KIT BTR185 | FVSGCN185000A00 | Buy |
| 7B | OSP HINGE + SUPP. BRACKET KIT BTR250 | FVSGCN250000A00 | Buy |
| 7C | OSP HINGE + SUPP. BRACKET KIT BTR300 | FVSGCN300000A00 | Buy |
| 8A | OSP COMP. STAINLESS STEEL WIRE ROPE KIT BTR185 | FVSFBTR18500A00 | Buy |
| 8B | OSP COMP. STAINLESS STEEL WIRE ROPE KIT BTR250 | FVSFBTR25000A00 | Buy |
| 8C | OSP COMP. STAINLESS STEEL WIRE ROPE KIT BTR300 | FVSFBTR30000A00 | |
| 9A | OSP ANODES FOR PROPELLER KIT BTR185 | FVSGANBTR18AA00 | Buy |
| 9B | OSP ANODES FOR PROPELLER KIT BTR250E00 | FVSGANBTR25EA00 | Buy |
| 9C | OSP ANODES FOR PROPELLER KIT BTR300 | FVSGANBTR30AA00 | Buy |
| 10A | OSP GEARBOX KIT BTQ185 DP | FVSGGBBT185DA00 | Buy |
| 10B | OSP GEARBOX KIT BTR250 E00 | FVSGGBBTR25EA00 | Buy |
| 10C | OSP GEARBOX KIT BTQ 300 | FVSGGBBT3000A00 | Buy |
| 11A | OSP PROPELLER D185 LH QUICK 5 BLADES BLACK | FVSGEL185L05A00 | Buy |
| 11B | OSP BTR THRUSTER D250 LH QUICK 5 BLADES E00 | FVSGEL250LE5A00 | Buy |
| 12A | OSP THRUSTER D185 RH QUICK 5 BLADES | FVSGEL185R05A00 | Buy |
| 12B | OSP THRUSTER D250 RH QUICK 5 BLADES E00 | FVSGEL250RE5A00 | Buy |
| 13 | OSP THRUSTER KIT LH BTR 300 | FVSGEL300L00A00 | Buy |
| 14 | OSP THRUSTER KIT RH BTR 300 | FVSGEL300R00A00 | Buy |
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Thrust | 100 kgf |
Electrical
| Motor power | 8 kW |
| Supply voltage | 24V DC |
| Recommended fuse | 175 A CNL DIN |
Mechanical
| Tunnel diameter | 185 mm |
| Propellers | Twin counter-rotating (technopolymer) |
Control
| Control type | Proportional |
General
| Thruster weight | 34 kg |
No videos available for this product.
What does QSY mean?
QSY stands for Quick Synchronous Motor. Quick states QSY thrusters have an extended duty rating in standard environmental conditions, reaching 10 minutes of continuous operation.
What voltage and fuse does it need?
24V DC; Quick's manual recommends a 175 A CNL DIN fuse.
Proportional or ON/OFF?
This listing is the Proportional version. Quick's recommended accessories include the AMC EX cable and AMC QSY ADP cable (see manual).
Can I run the thruster continuously?
No. Quick's manual states the thruster is not designed for continuous use. It has built-in protections that limit its running time (see the control panel manual), and Quick states these protections must not be bypassed or modified, as doing so voids the warranty. Do not run the thruster out of the water for more than 10 seconds.
Is installation DIY-friendly?
Quick recommends that the tunnel and thruster are installed by competent, skilled personnel, and the installer bears responsibility for any problems caused by defective installation. The installation and user manual (linked in Downloads) covers the tunnel, gearleg and wiring.
