Quick Duke DK6 3524DY Vertical Windlass with Drum (3500W, 24V, 12mm)
£8,145.38
/
Tax included.
Shipping calculated at checkout.
FSDK3524DY12A00
Quick Duke DK6 3524DY: vertical-axis windlass, 3500 W 24 V, 12 mm chain, with drum Ø200 mm.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

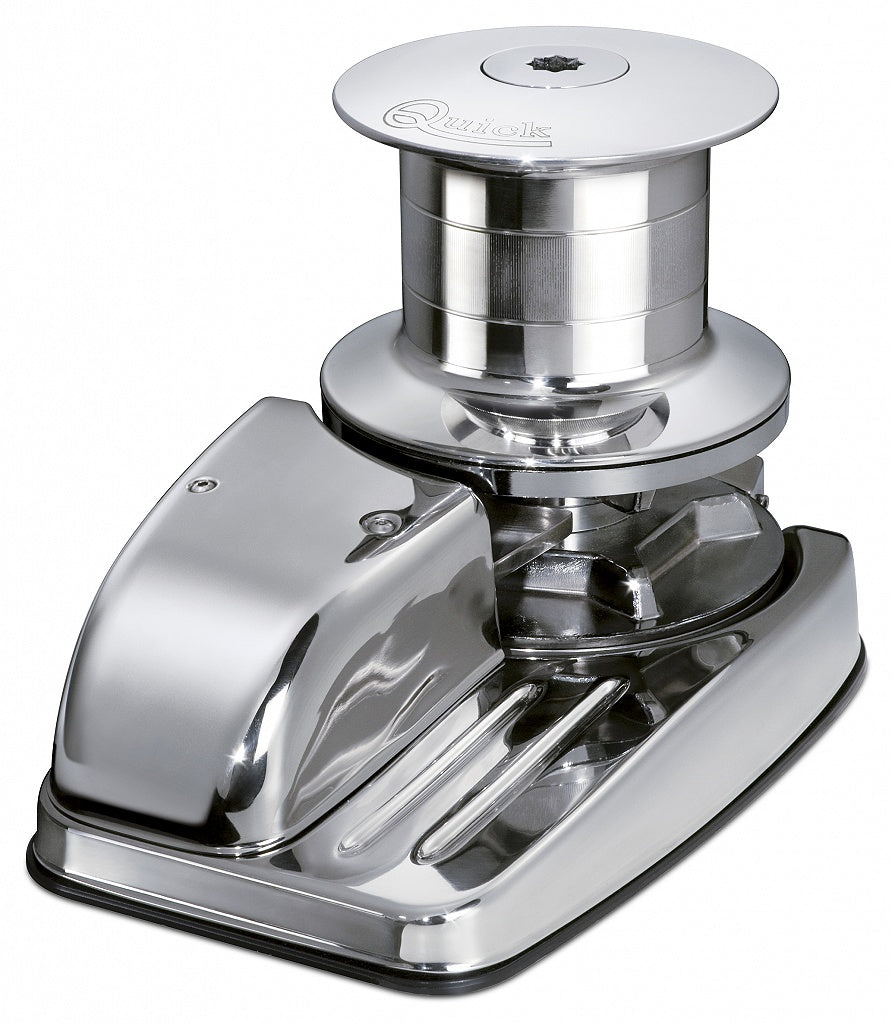

The Quick Duke DK6 3524DY is a vertical-axis windlass with a 3500 W, 24 V DC motor, supplied with a gypsy for 12 mm chain and a drum Ø200 mm.
Quick gives an indicative boat length of 22 to 29 m for this power; the indication may vary with boat type and anchor-rode type.
PRODUCT DETAILS
- Supplied with drum Ø200 mm
- Left chain pipe
- Gypsy for 12 mm chain
- Stainless steel AISI 316 and anodised aluminium base
- Stainless steel AISI 316 drum and gypsy cover
- With and without drum
- Integrated sensor and magnet for chain counter
- Safety mechanical band brake
- Anodised aluminium gearbox
- Genuine Quick part, part number FSDK3524DY12A00
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Series | Duke DK6 |
| Model code | DK6 3524DY |
| Type | vertical-axis windlass |
| Configuration | Left chain pipe - With drum Ø 200 mm |
| Weight | 87 kg (with drum) |
Motor
| Motor power | 3500 W |
| Motor supply voltage | 24 V |
| Motor type | DC |
Anchor rode
| Gypsy chain size | 12 mm |
| Chain pipe | Left |
Drum
| Drum diameter | 200 mm |
Fitment
| Indicative boat length | 22 to 29 m |
Installation
| Deck thickness | 30 to 80 mm |
No videos available for this product.
Which chain size does this version take?
This part number is listed for 12 mm chain. Quick's installation manual lists the compatible chain standards for each gypsy size; check your chain against it before ordering.
Does it come with a drum?
Yes, this version is supplied with a drum.
What cable and breaker does it need?
Quick's installation manual sets the minimum motor cable cross-section and the DC circuit-breaker rating for each motor power and voltage. Size them from the manual for your cable run; they are not repeated here.
