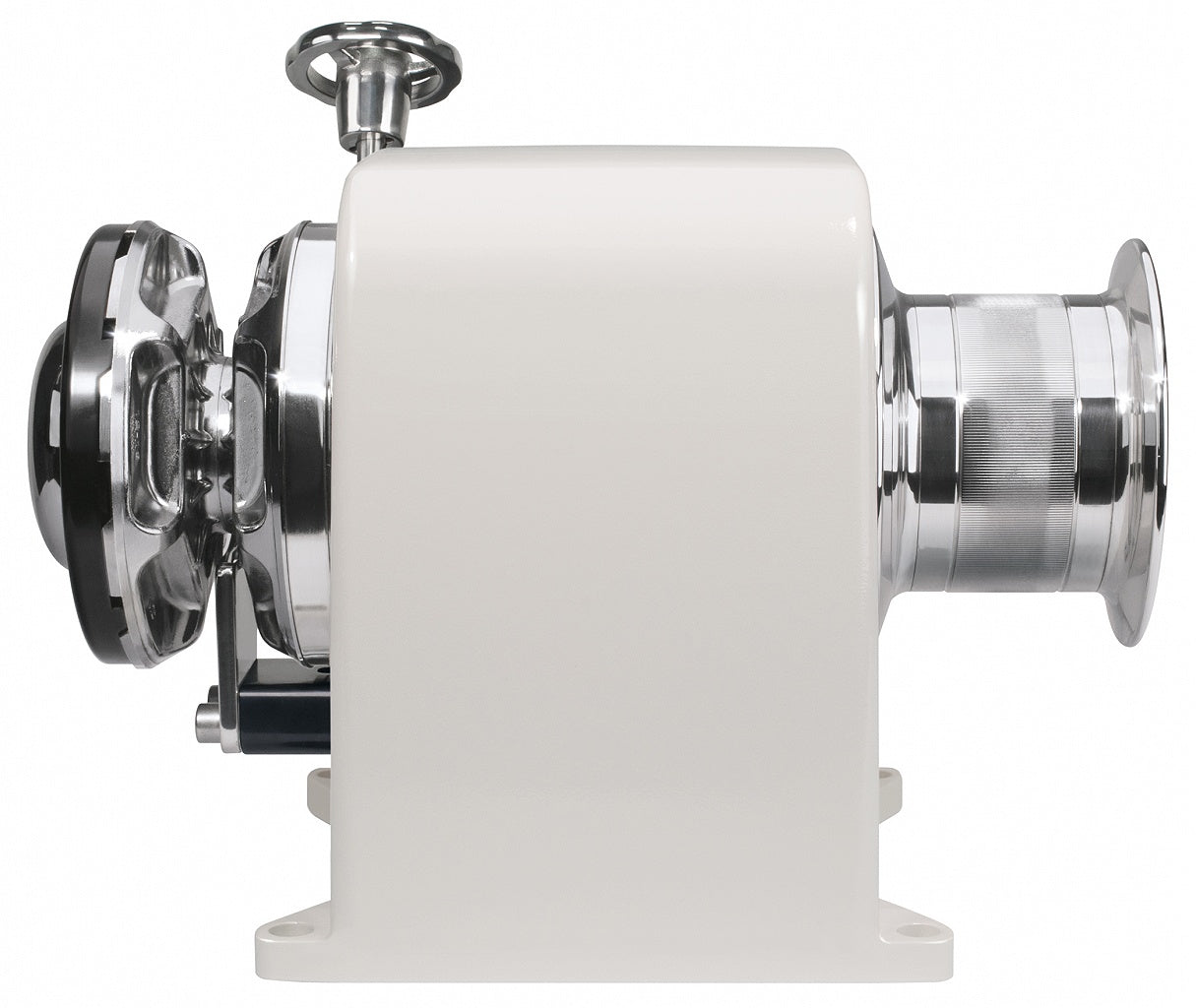

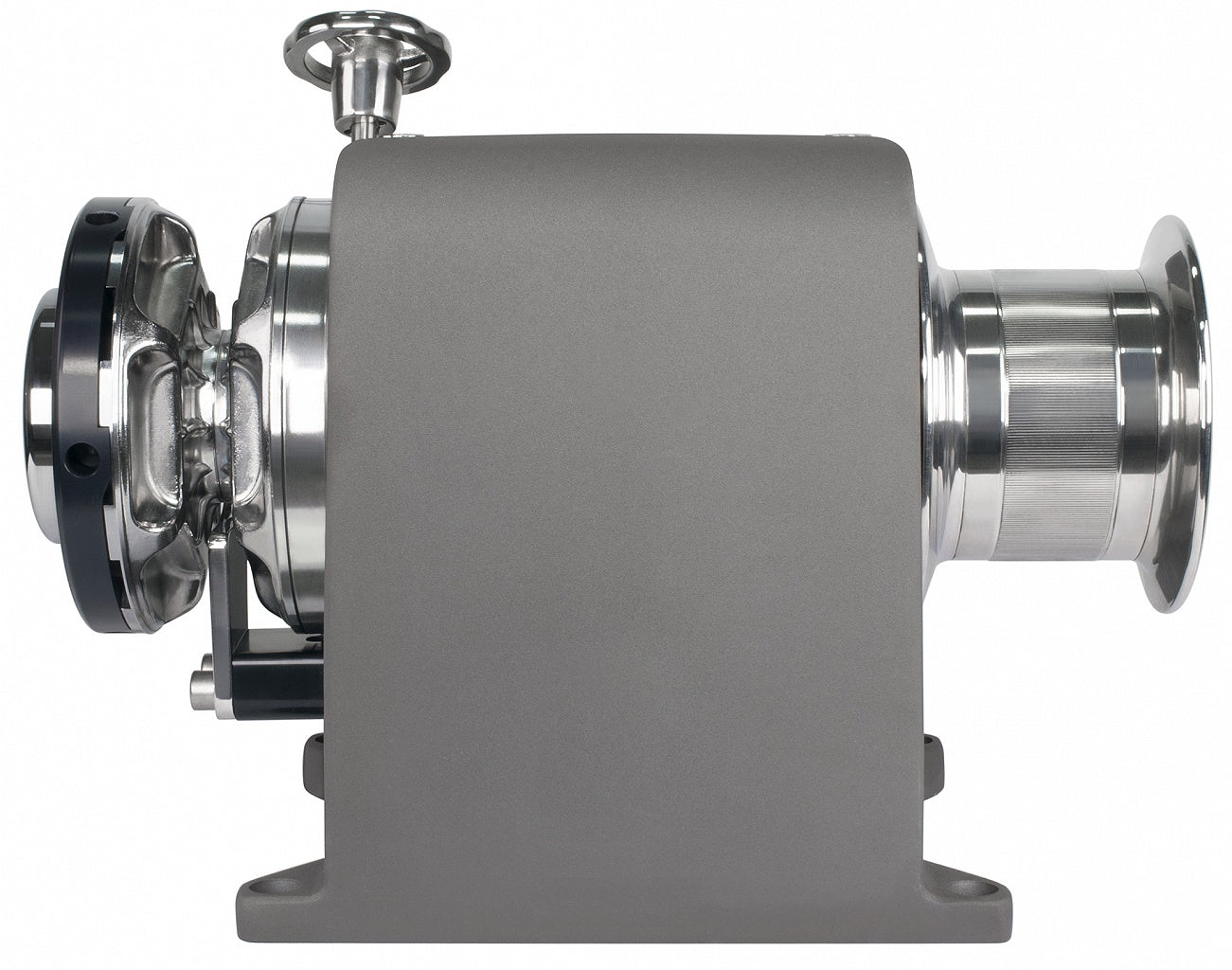

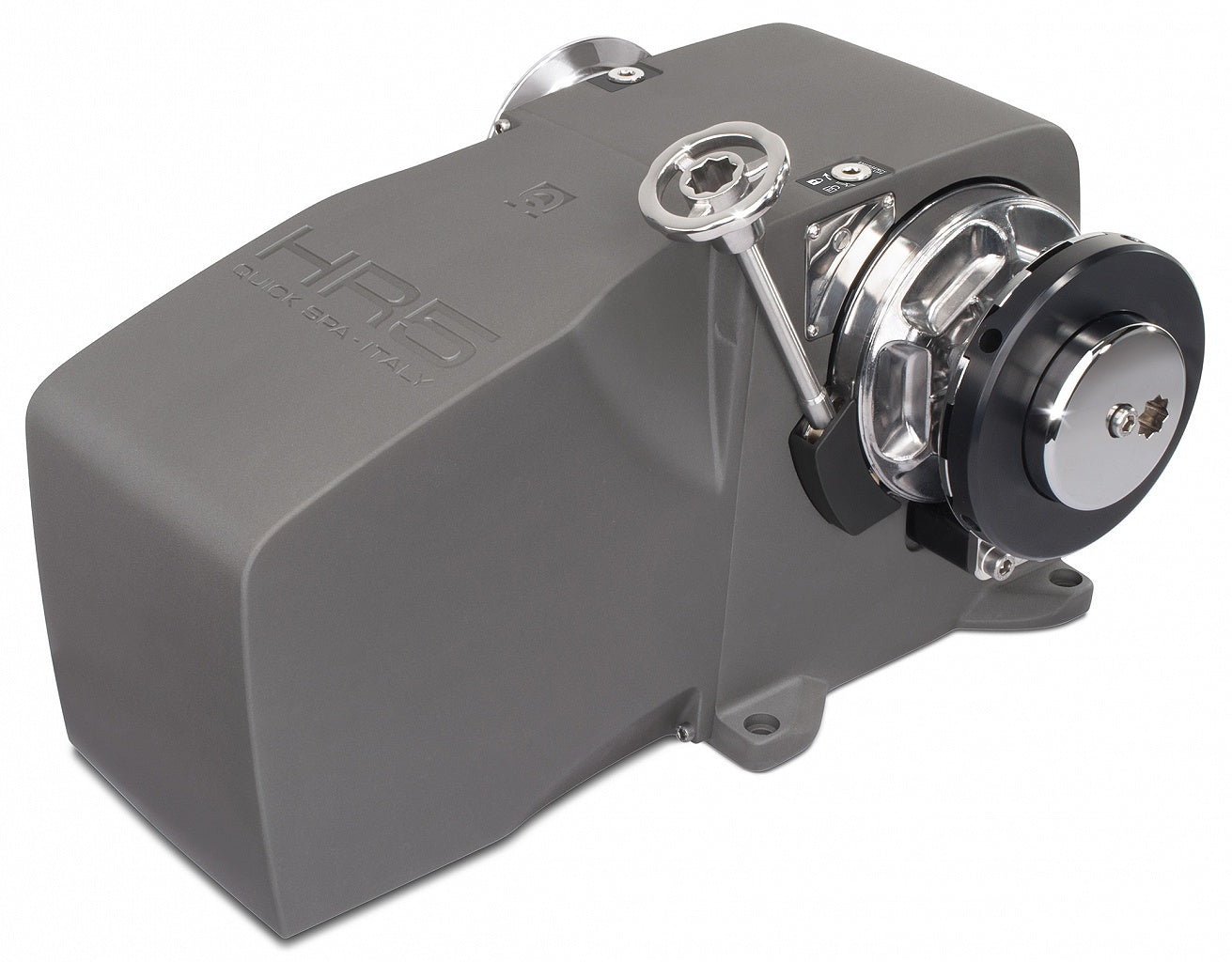

Quick Heroes HR5 3524 XD-BD Horizontal Windlass (3500W, 24V, 14mm, Anodised)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Quick Heroes HR5 3524 XD-BD is a horizontal on-deck windlass with a 3500 W, 24 V DC motor, supplied with a gypsy for 14 mm chain and a drum.
Gypsy and drum configuration: With left drum and right gypsy and drum.
Quick lists the HR5 series for boats of roughly 12 to 24 m overall; the indication may vary with boat type and anchor-rode type.
For this motor (3500 W, 24 V) the manual's technical data gives: maximum instantaneous pull 3500 kg, maximum working load 1500 kg, working load 500 kg and current draw 145 A at working load. Speeds and cable/breaker sizing are in the specifications; always size cables and breakers from the installation manual.
PRODUCT DETAILS
- Gypsy for 14 mm chain
- Painted aluminium base (RAL 9010)
- With and without drum
- Rope and chain on a single gypsy
- Emergency ratchet-operated manual lift system
- Integrated solenoids unit
- Manual Free-Fall system
- Safety mechanical band brake
- IP66 watertight motor
- Genuine Quick part, part number FSH53524XD4DA00
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Series | Heroes HR5 |
| Model code | HR5 3524 XD-BD |
| Type | horizontal on-deck windlass |
| Configuration | With left drum and right gypsy and drum |
Motor
| Motor power | 3500 W |
| Motor supply voltage | 24 V |
| Motor type | DC |
Anchor rode
| Gypsy chain size | 14 mm |
Materials
| Finish | Anodised |
Fitment
| Indicative boat length (whole series) | 12 to 24 m |
Performance
| Maximum instantaneous pull | 3500 kg |
| Maximum working load | 1500 kg |
| Working load | 500 kg |
| Current consumption at working load | 145 A |
| Maximum recovery speed | 39.2 m/min |
| Recovery speed at working load | 19.3 m/min |
Installation
| Circuit breaker (DC, delayed type) | 100 A |
