Quick Prince DP2 P 524D Vertical Windlass with Drum (500W, 24V, 6mm)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

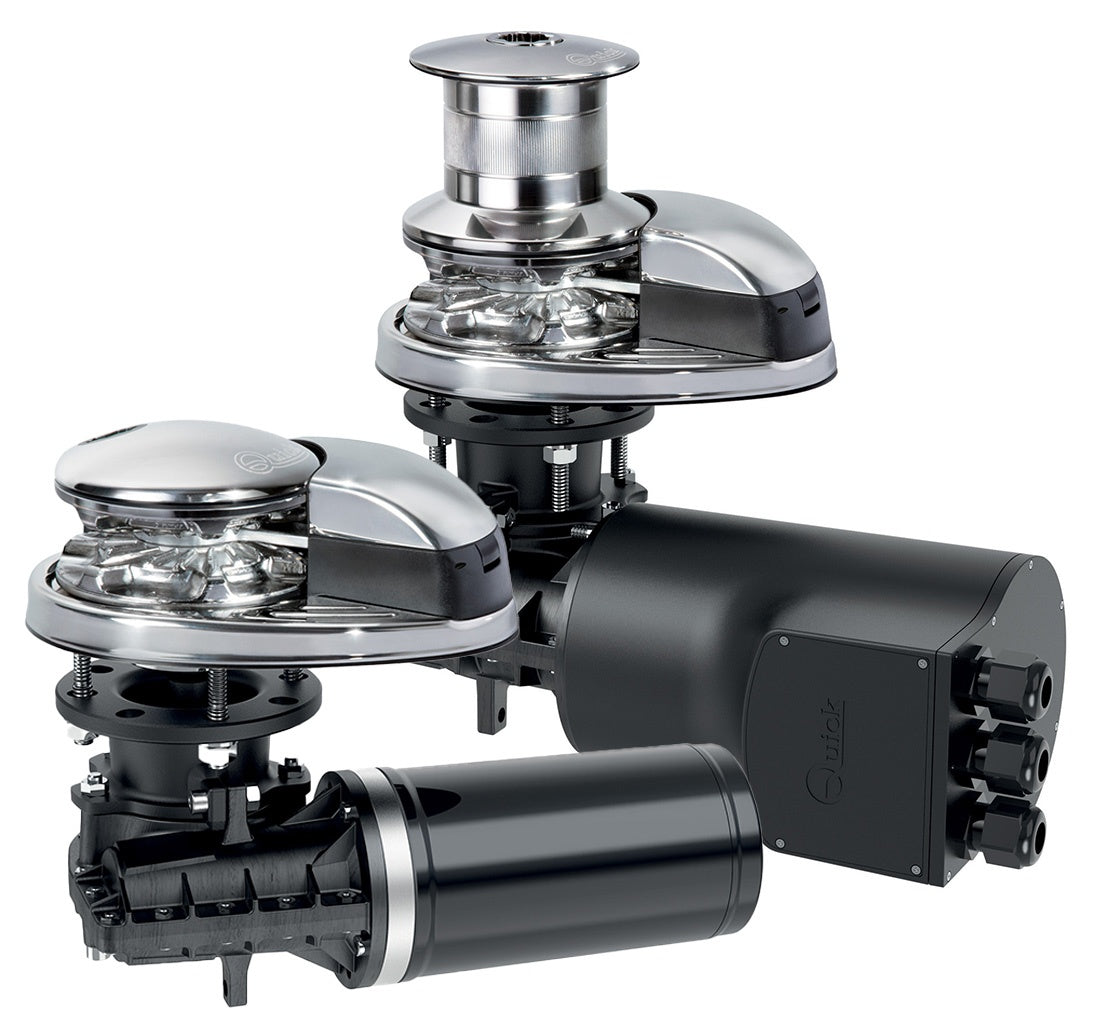

The Quick Prince DP2 P 524D is a vertical-axis windlass with a 500 W, 24 V DC motor, supplied with a gypsy for 6 mm chain and a drum Ø105 mm.
Quick gives an indicative boat length of 5 to 9 m for this power; the indication may vary with boat type and anchor-rode type.
For this motor (500 W, 24 V) the manual's technical data gives: maximum instantaneous pull 660 kg, maximum working load 220 kg, working load 70 kg and current draw 40 A at working load. Speeds and cable/breaker sizing are in the specifications; always size cables and breakers from the installation manual.
PRODUCT DETAILS
- Supplied with drum Ø105 mm
- Gypsy for 6 mm chain
- Stainless steel AISI 316 base
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Genuine Quick part, part number FSDP20524D06B00
- Contactor units (supplied as standard per Quick's DP2 series page)
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Series | Prince DP2 |
| Model code | DP2 P 524D |
| Type | vertical-axis windlass |
| Configuration | With drum Ø 105 mm |
| Weight | 9.8 kg (with drum) |
Motor
| Motor power | 500 W |
| Motor supply voltage | 24 V |
| Motor type | DC |
Anchor rode
| Gypsy chain size | 6 mm |
Drum
| Drum diameter | 105 mm |
Fitment
| Indicative boat length | 5 to 9 m |
Performance
| Maximum instantaneous pull | 660 kg |
| Maximum working load | 220 kg |
| Working load | 70 kg |
| Current consumption at working load | 40 A |
| Maximum recovery speed | 28.2 m/min |
| Recovery speed at working load | 24.1 m/min |
| Speeds measured with | gypsy for 6 mm chain |
Installation
| Circuit breaker (DC, delayed type) | 40 A |
| Deck thickness | 25 to 50 mm |
