Quick Prince DP2E1000 Vertical Windlass Kit (800W, 12V, 8mm)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

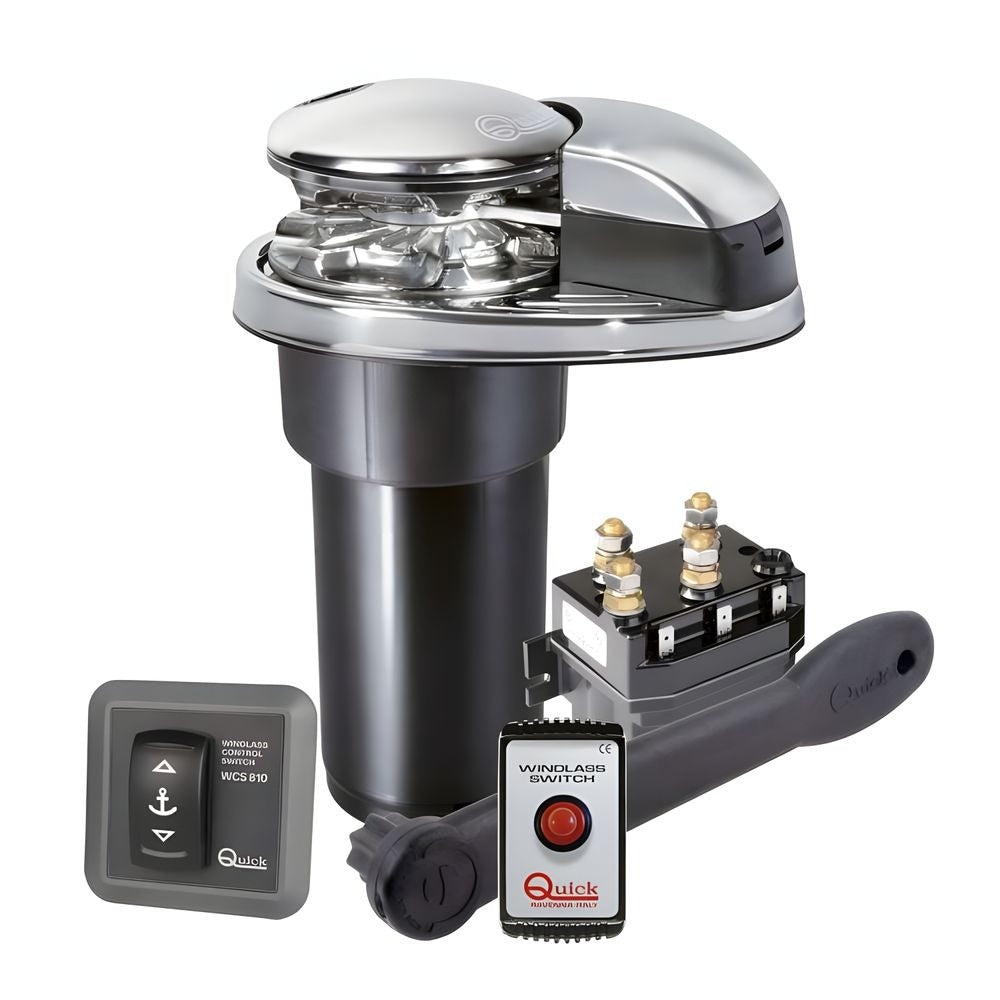

The Quick Prince DP2E1000 kit supplies the 800W, 12V DP2E vertical windlass together with the main electrical components needed to install it: a reversing contactor unit, an 80A hydraulic-magnetic circuit breaker, a rocker switch, the nylon clutch handle, a base gasket, mounting hardware, a drilling template and the user manual. The windlass has an AISI 316 stainless steel base and hard-oxide anodised aluminium construction, free-fall operation, a chain counter sensor and magnet, and an inspection lid. Quick rates the DP2E 1000 at a maximum pull of 820 kg and a working load of 95 kg, with a maximum chain speed of 22.5 m per minute and 15.2 m per minute at working load. The 8 mm gypsy takes DIN 766 and ISO 8 mm chain or 5/16 inch BBB chain together with 1/2 inch rope spliced to the chain, and it suits deck thicknesses of 20 to 40 mm.
PRODUCT DETAILS
- 800W 12V Quick DP2E 1000 vertical windlass with 8 mm gypsy
- Kit includes reversing contactor unit, 80A circuit breaker and rocker switch
- Maximum pull 820 kg; working load 95 kg; maximum working load 290 kg
- Chain speed up to 22.5 m/min (15.2 m/min at working load)
- Takes DIN 766 / ISO 8 mm chain or 5/16 inch BBB chain with 1/2 inch rope
- AISI 316 base and hard-oxide anodised aluminium; free-fall and chain counter sensor
- Suits deck thicknesses of 20 to 40 mm
- Quick part number DP2E1000 kit (FSDP2E100008A05)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Motor power | 800W |
| Voltage | 12V DC |
| Current at working load | 84 A |
| Circuit breaker | 80 A |
| Minimum motor cable section | 25 mm2 (AWG 3) |
Performance
| Maximum pull | 820 kg (1807.8 lb) |
| Maximum working load | 290 kg (639.3 lb) |
| Working load | 95 kg (209.4 lb) |
| Maximum chain speed | 22.5 m/min (73.8 ft/min) |
| Chain speed at working load | 15.2 m/min (49.9 ft/min) |
Gypsy
| Gypsy size | 8 mm |
| Chain | DIN 766 8 mm, ISO 8 mm, 5/16 inch BBB |
| Rope | 1/2 inch rope spliced to chain |
Installation
| Deck thickness | 20 to 40 mm |
| Weight (windlass, without drum) | 8.3 kg |
In the kit
| Contents | DP2E windlass 800W 12V, reversing contactor unit, 80A hydraulic-magnetic circuit breaker, rocker switch, nylon clutch handle, base gasket, mounting hardware, drilling template, user manual |
