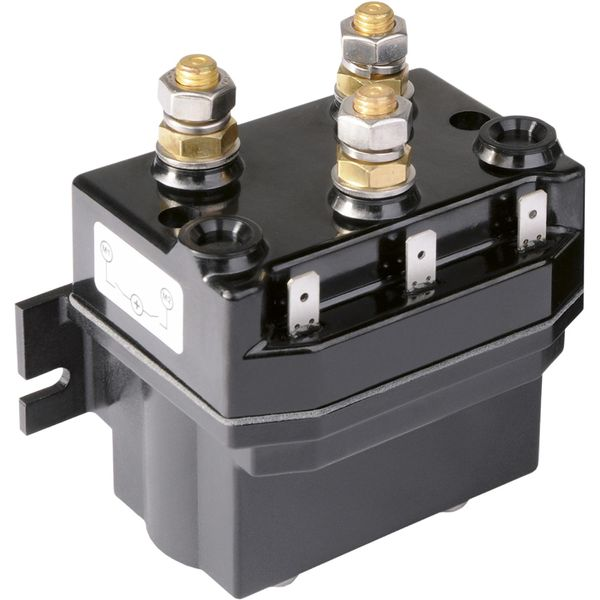

Quick T6315-12 Contactor Unit (12V / 150A / IP66)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Quick T6315-12 is a 12V contactor unit (solenoid) for operating the electric motor of a windlass or capstan, with a maximum motor power of 2500W. It is the contactor box listed in Quick's installation manual for the Aleph AL3 windlass in its 12V version. The IP66 case (excluding the terminals) is designed to be installed in a position protected from water entry, and the unit has a 12V coil, a 48Vdc maximum contact voltage and an 800A interruption capacity at 48Vdc.
PRODUCT DETAILS
- 12V contactor unit (solenoid) for windlass and capstan motors up to 2500W
- Contactor box listed by Quick for the Aleph AL3 windlass (12V version)
- 150A working intermittent current (45% of work cycle)
- 800A interruption capacity at 48Vdc, 12Vdc coil
- IP66 protection (excluding terminals)
- Genuine Quick part, part number FTT631512000B00
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Model | T6315-12 |
| Maximum windlass/capstan motor power | 2500W |
| Maximum contact voltage | 48Vdc |
| Interruption capacity | 800A @ 48Vdc |
| Working intermittent current (45% of work cycle) | 150A |
| Coil rated voltage | 12Vdc |
| Recommended fuse | 2.5A fast |
General
| Degree of protection | IP66 (excluding terminals) |
| Weight | 850g |
| Width | 100.3mm (82.5mm excluding mounting bracket) |
| Depth | 66.5mm (61.3mm excluding mounting bracket) |
| Mounting hole centres | 86mm |
