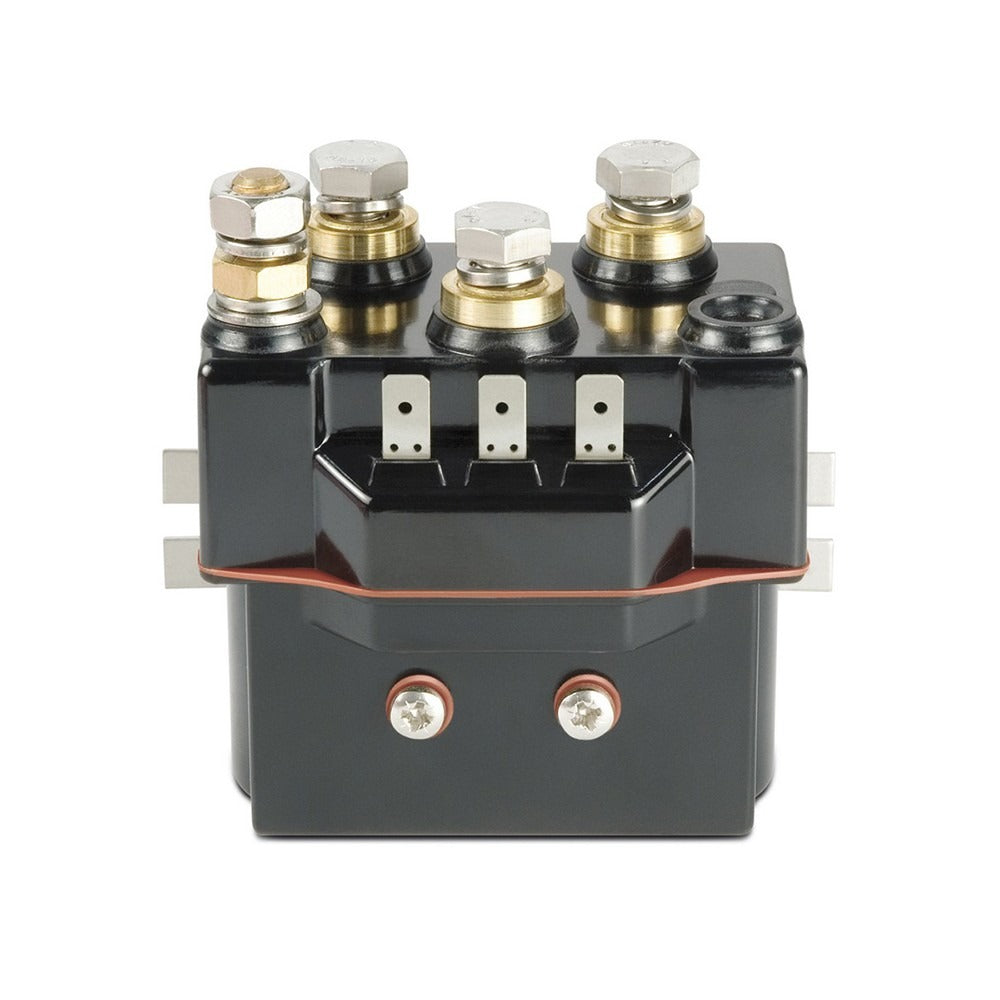

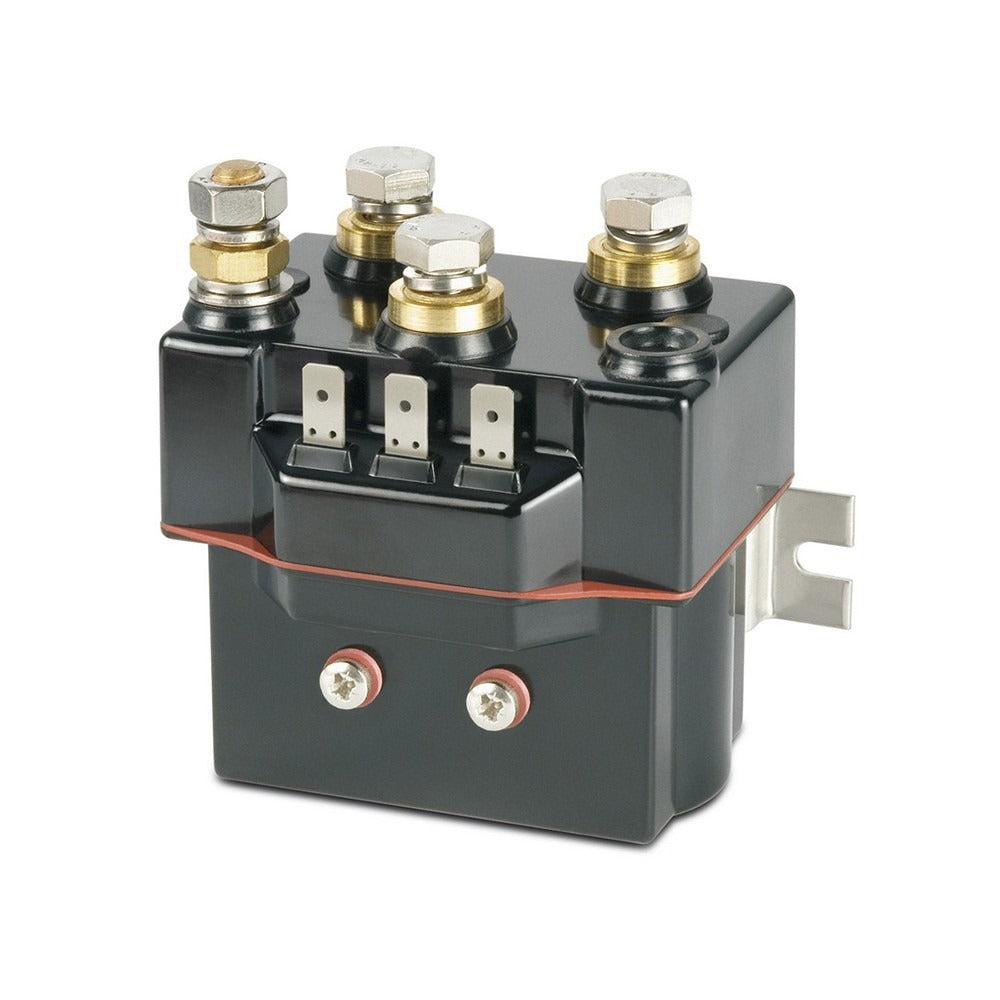

Quick T6411-PT Reversing Contactor Unit (24V / 3500W / IP66)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Quick T6411-PT is a 24V DC double pole, double throw reversing contactor unit for operating dual-direction electric windlass and capstan motors of up to 3500W, and it suits both permanent magnet and series wound motors. It is typically used with a remote up/down control panel, a chain counter, a wireless handheld remote or foot switches to drive the motor in the required direction. External connections make installation straightforward, and although the casing is waterproof to IP66, installation in a dry area is recommended.
PRODUCT DETAILS
- 24V DC reversing contactor unit for windlass and capstan motors
- Double pole, double throw
- Maximum motor power 3500W
- Suits permanent magnet or series wound motors
- External connections for straightforward installation
- Waterproof IP66 casing; installation in a dry area recommended
- Quick part number T6411-PT (FTT6411PT000A00)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Model | T6411-PT |
| Type | Reversing contactor, double pole double throw |
| Voltage | 24V DC |
| Maximum motor power | 3500W |
| Motor types | Permanent magnet or series wound |
General
| Degree of protection | IP66 (dry installation recommended) |
| Connections | External |
