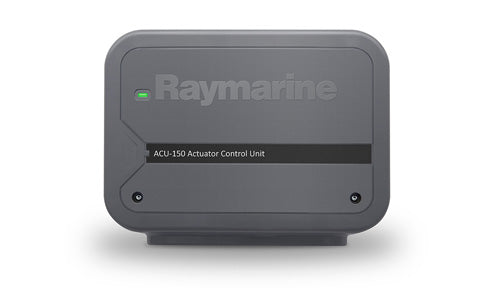

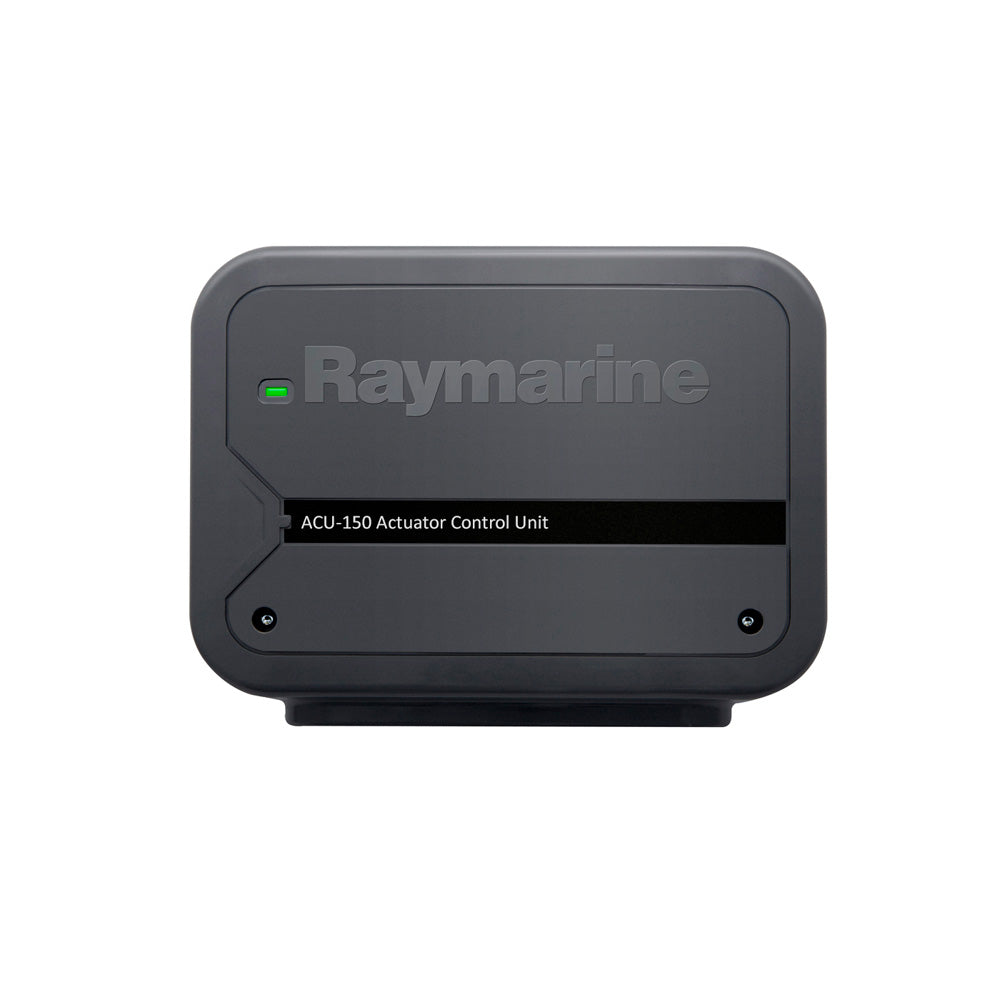

Raymarine ACU-150 Actuator Control Unit
Manufacturer Part No:
E70430 |
£594.63 ex-VAT
The ACU-150 Autopilot control unit suitable for Type 1 hydraulic pumps. Max continuous current 12 amps. Has clutch output and can supply SeaTalk ng with 12 volt power. Not supplied with rudder reference sensor.
Autopilot Control Unit (ACU)
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering type:
Supported Drives
| ACU-100 | Wheel, tiller and 0.5 ltr Hydraulic |
| ACU-150 | Type-1 Hydraulic Drive Unit |
| ACU-200 | Type 1 Raymarine hydraulic, linear and rotary mechanical drives |
| ACU-300 | For solenoid controlled steering systems and Raymarine constant running hydraulic pumps |
| ACU-400 | Type 2 and 3 Raymarine hydraulic, linear, and rotary mechanical drives |
ACU-100, ACU-150
1. ACU unit x 1
2. Documentation pack x 1
3. Screws (pan head type) x 2
4. SeaTalkng® spur to bare wires cable 1 m (3.3 ft) x 1
ACU-200, ACU-300, ACU-400
1. ACU unit. x 1
2. Rudder reference unit x 1
3. Cable ties. x 10
4. Mounting screws x 2
5. Document pack x 1
