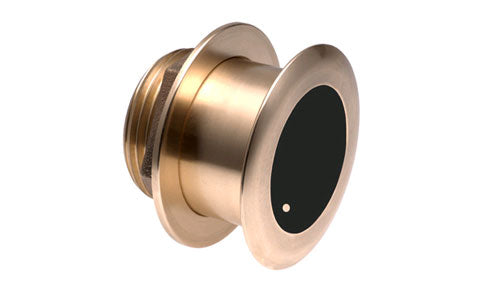

Raymarine B164 1Kw 50-200 kHz 20 Degree Tilted Bronze Through Hull Transducer
Manufacturer Part No:
A102113 |
£939.63 ex-VAT
B164 Depth and Temperature Through Hull Bronze Transducer. Compatible hull material: fiberglass and wood. Max Power: 1000 watts. Frequency: 200/50 kHz Cable: 30ft (9.1m) cable with connector for connection to CP370, CP300, DSM30, DSM300. Hole diameter for installation: 2.375 inch 60mm. 20 Degree Tilt - Fits vessels with hull deadrise of 16 to 24 degrees. With 3 internal ceramics the B164 provides the increased performance of a 1kW transducer, while maintaining the benefits of a low-profile, deadrise compensated housing. Given their flush design, low-profile transducers may be more easily subjected to surface aeration at higher speeds
Features
- 1 kW power, 50/200 kHz multiple-ceramics
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No affect on your boats running performance
- Interfaces to any 600 W or 1 kW echosounder
- Bronze transducer housing
- Depth and fast-response water-temperature sensor
- Boat Size: 8 m to 11 m (25’ to 35’)
- 0°, 12°, or 20° Tilt
Specifications
- Weight: 2.7 kg (6 lb)
- Hull Deadrise: Up to 28°
- Acoustic Window: Urethane
