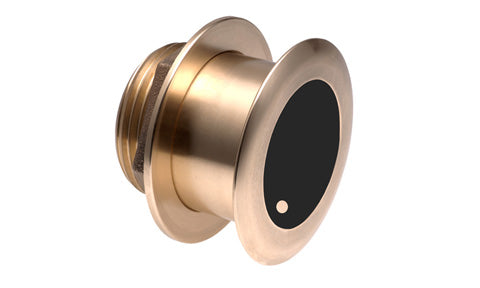

Raymarine B175H 1Kw Depth Through Hull High CHIRP Transducer 0 Degree Tilt
Manufacturer Part No:
A80044 |
£1,083.75 ex-VAT
The B175H is a low profile Bronze through hull single element CHIRP transducer. It has a 0 degree tilted element suitable for hulls with 0-7 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 1000 watts. Frequency: 130-210 kHz. Beamwidth: 9-15 degrees. Cable: 30ft (9.1m) cable. Require cable A80328 if its the only transducer being connected or cable A102146 if its one of two transducers being connected to a CP450C, CP470 and CP570.
Features
- High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
- Available in 0°, 12°, or 20° tilted versions
- 80 kHz of total bandwidth from one transducer
- Depth & fast-response water-temperature sensor
- Bronze transducer housing
- Boat Size: Up to 11 m (36’)
- Hull Type: Fiberglass or wood
Specifications
- Hull Deadrise: Up to 28°
- Acoustic Window: Urethane
- Weight: 2.7 kg (6 lb)
