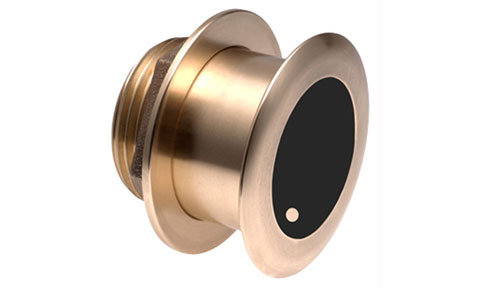

Raymarine B175H-W 1Kw Depth Through Hull High CHIRP Transducer 20 Degree Tilt

Raymarine B175H-W 1Kw Depth Through Hull High CHIRP Transducer 20 Degree Tilt

Manufacturer Part No: A80321 | £1,396.67 ex-VAT

The B175H-W Wide Beam is a low profile Bronze through hull single element CHIRP transducer. It has a 20 degree tilted element suitable for hulls with 16-24 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 1000 watts. Frequency: 150-250 kHz. Beamwidth: constant 25 degrees. Cable: 30ft (9.1m) cable. Require cable A80328  if its the only transducer being connected or cable A102146 if its one of two transducers being connected to a CP450C, CP470 and CP570.




Features

  • Depth & fast-response water-temperature sensor
  • High—CHIRPS from 150 kHz to 250 kHz
    • 25° constant beamwidth
  • 100 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
  • Boat Size: 8 m (25’) and above
  • Hull Type: Fiberglass or wood



Specifications

  • Hull Deadrise: Up to 28°
  • Acoustic Window: Urethane
  • Weight: 2.7 kg (6 lb)
