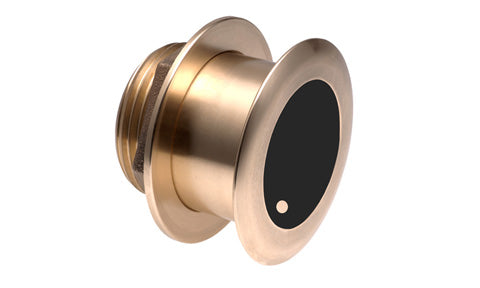

Raymarine B175L 1kW Depth Through Hull Low CHIRP Transducer 0 Degree Tilt
The B175L is a low profile Bronze through hull single element CHIRP transducer. It has a 0 degree tilted element suitable for hulls with 0-7 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 1000 watts. Frequency: 40-75 kHz. Beamwidth: 21-32 degrees. Cable: 30ft (9.1m) cable. Require cable A80328 if its the only transducer being connected or cable A102146 if its one of two transducers being connected to a CP450C, CP470 and CP570.
.jpg)
Features
- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
- Available in 0° or 12° tilted versions only
- 35 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
- Bronze transducer housing
- Boat Size: Up to 8 m (25’)
- Hull Type: Fiberglass or wood

Specifications
- Hull Deadrise: Up to 28°
- Acoustic Window: Urethane
- Weight: 2.7 kg (6 lb)
