Raymarine B175L and B175H Through Hull CHIRP 12 Degree Tilt Transducers with Y cable

Raymarine B175L and B175H Through Hull CHIRP 12 Degree Tilt Transducers with Y cable

Manufacturer Part No: T70072 | £1,843.33 ex-VAT

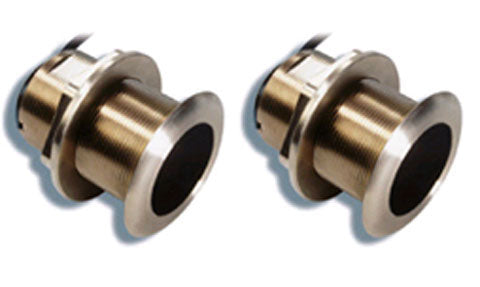

Pack made up of 1 x B175L low profile Bronze through hull single element CHIRP transducer with  12 degree tilted element suitable for hulls with 8-15 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 1000 watts. Frequency: 40-75 kHz. Beamwidth: 21-32 degrees. Cable: 30ft (9.1m). 1 x B175H low profile Bronze through hull single element CHIRP transducer with 12 degree tilted element suitable for hulls with 8-15 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 1000 watts. Frequency: 130-210 kHz. Beamwidth: 9-15 degrees. Cable: 30ft (9.1m). 1 x Y Cable used to connect the two transducers to CP450C, CP470 or CP570




Features

  • Depth & fast-response water-temperature sensor
  • Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
  • Available in 0° or 12° tilted versions only
  • 35 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
  • Bronze transducer housing
  • Boat Size: Up to 8 m (25’)
  • Hull Type: Fiberglass or wood



Specifications

  • Hull Deadrise: Up to 28°
  • Acoustic Window: Urethane
  • Weight: 2.7 kg (6 lb)



Features

  • High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
  • Available in 0°, 12°, or 20° tilted versions
  • 80 kHz of total bandwidth from one transducer
  • Depth & fast-response water-temperature sensor
  • Bronze transducer housing
  • Boat Size: Up to 11 m (36’)
  • Hull Type: Fiberglass or wood



Specifications

  • Hull Deadrise: Up to 28°
  • Acoustic Window: Urethane
  • Weight: 2.7 kg (6 lb)
