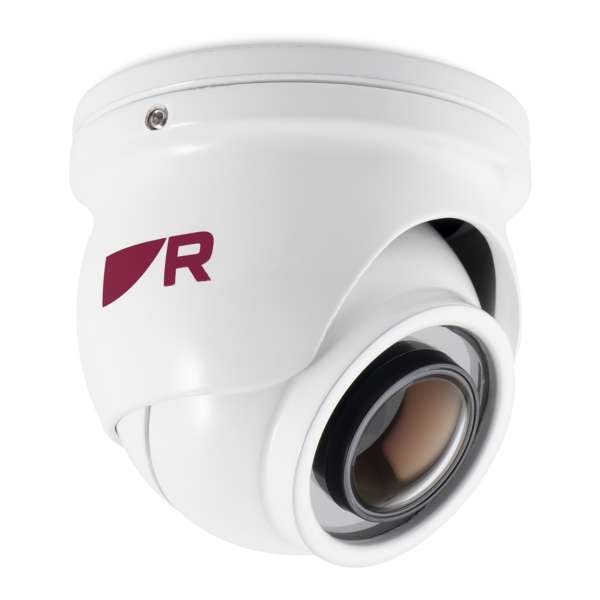

Raymarine E70660 CAM300 Eyeball CCTV day and night video camera, large view of white dome with R logo and lens

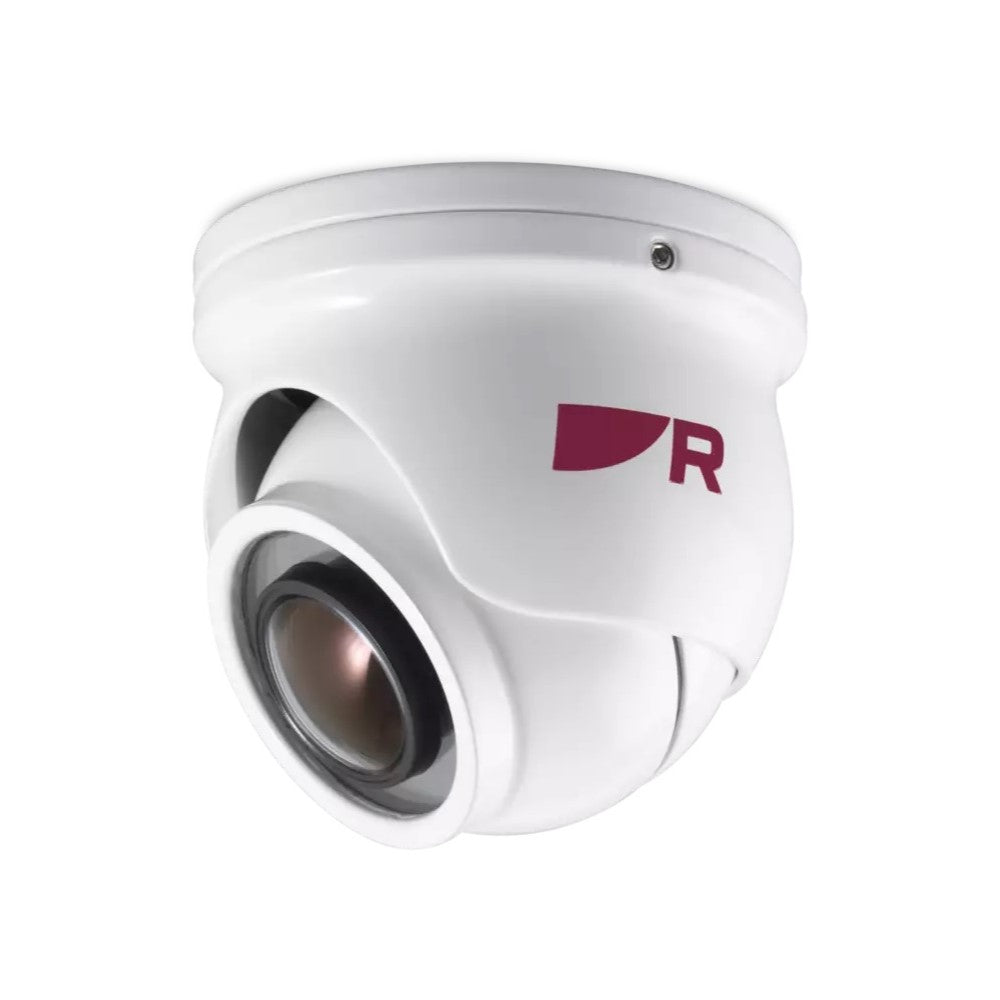

Raymarine E70660 CAM300 Eyeball CCTV day and night video camera, side view of white dome with R logo and lens

Not sure what replaces it? Talk to us.

Contact HME

or call us on +442380455129

Raymarine

Raymarine CAM300 Eyeball CCTV Day and Night Video Camera

Name: Raymarine CAM300 Eyeball CCTV Day and Night Video Camera
Brand: Raymarine
SKU: E70660
Availability: Discontinued

E70660

The CAM300 is Raymarine's compact HD eyeball IP camera for day and night marine viewing. A 3MP CMOS sensor delivers up to 1080p video over a single PoE cable, while six 850nm infrared emitters give clear near-field vision up to 10 m in darkness. Its ultra-compact IPx6 minidome blends discreetly into any vessel and streams straight to a compatible Axiom display.

Description

The Raymarine CAM300 is an ultra-compact, high-definition day and night IP camera built for the marine environment. Measuring just 52.9 mm tall on a 59.5 mm base, it tucks discreetly under a hardtop, in a cockpit or below deck while delivering crisp 1080p imagery from its 1/4" CMOS sensor and 1.8 mm wide-angle lens with a 125° horizontal field of view.

True day and night operation uses a mechanical IR cut filter, and six 850 nm infrared emitters illuminate the scene up to 10 m in complete darkness. A single cable carries both data and Power over Ethernet (PoE Class 1), simplifying installation, and the rugged IPx6 housing withstands exposed deck conditions. Connected to a compatible Axiom or Axiom 2 multifunction display, the CAM300 supports ClearCruise augmented reality when paired with an AR200 sensor, and its ONVIF Profile S compliance allows integration with third-party recording systems.

PRODUCT DETAILS

Ultra-compact eyeball minidome just 52.9 mm tall on a 59.5 mm base
1/4 inch 3MP CMOS sensor delivering up to 1080p HD video
1.8 mm wide-angle lens with a 125 degree horizontal field of view
True day and night operation with a mechanical IR cut filter
Six 850 nm infrared emitters for near-field vision up to 10 m in darkness
Single-cable Power over Ethernet (PoE Class 1) connection
Rugged IPx6 housing for exposed marine installations
ClearCruise augmented reality ready with an AR200 sensor
ONVIF Profile S compatible for third-party security systems

CAM300 camera with approx. 670 mm (2.2 ft) fitted RJ45 and power cable
Mounting screws (x3) - self-tapping 3.5 mm x 32 mm A4
Waterproof gasket
Hex wrench (Allen key), M3
Documentation

No exploded diagram available for this product.

No compatible transducers listed for this product.

Raymarine AR200 ClearCruise Augmented Reality GPS and Heading Sensor

Raymarine Axiom 2 Pro 9 RVM

Raymarine Axiom 2 XL 16 Chartplotter Kit

Raymarine Axiom 2 XL 19 Chartplotter Kit

Raymarine Axiom 2 XL 24 Chartplotter

Raymarine Axiom 2 Pro 16 S

Raymarine Axiom 2 Pro 12 RVM

Raymarine Axiom 2 XL 22 Chartplotter Kit

Raymarine Axiom 2 Pro 9 S

Raymarine Axiom 2 Pro 16 RVM

Raymarine Axiom 2 XL 16 Chartplotter

Raymarine Axiom 2 XL 22 Chartplotter

Raymarine Axiom 2 XL 19 Chartplotter

Raymarine Axiom 2 XL 24 Chartplotter Kit

Raymarine Axiom 2 Pro 12 S

Camera

Sensor / DSP	1/4" CMOS Sensor
Total pixels	2304 (H) x 1296 (V)
Scanning system	Progressive scan
Illumination	6 x 850nm Infrared - 10 meter range
Lens / Field of View	1.8mm Standard (125 deg Horizontal FoV x 70 deg Vertical FoV)
Day / Night	True day / night operation with mechanical IR cutout filter
ONVIF version	21.06 master version

Video

Compression	H.264
Resolutions	2304 x 1296 (3MP) Max
Video processing	H.264 Codec / Dual Stream
Frame rate	30 fps

Power

Nominal supply voltage	12 V DC
Operating voltage range	10.8 V to 15.6 V DC
Power consumption	1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON)
Current	<150 mA (Maximum) @ 12 V DC
Power over Ethernet	PoE Class 1 (1.8 W Max) device (IEEE802.3af)
Inline fuse rating	250 mA

Physical

Base diameter	59.5 mm (2.34 in)
Height	52.9 mm (2.08 in)
Weight	0.420 kg (0.926 lbs)

Environmental

Operating temperature	-20 C (-4 F) to +65 C (149 F)
Storage temperature	-30 C (-22 F) to +65 C (149 F)
Relative humidity	up to 85% @ 65 C (149 F)
Waterproof rating	IPx6

Which displays is the CAM300 compatible with?

The CAM300 is compatible with Raymarine Axiom 2 Pro (LightHouse 4 v4.3.54 or later), Axiom 2 XL (LightHouse 4 v4.4.70 or later) and the wider Axiom, Axiom+, Axiom Pro and Axiom XL range, as well as eS, gS and earlier a/c/e Series displays running supported LightHouse software. It is also ONVIF Profile S compatible for third-party security systems. (Source: 81411 Rev 3.)

How far can the CAM300 see in the dark?

Six 850 nm infrared emitters illuminate the scene up to 10 metres in complete darkness, and true day/night operation with a mechanical IR cut filter gives a colour image by day and a clear monochrome image at night. (Source: 81411 Rev 3.)

How is the CAM300 powered and connected?

The CAM300 uses a single cable for both data and power. It is a Power over Ethernet (PoE Class 1, IEEE802.3af) device, and a RayNet to RJ45 adapter cable is required to connect it to a compatible Raymarine multifunction display or network switch. (Source: 81411 Rev 3.)

What resolution video does the CAM300 produce?

The CAM300 uses a 1/4" 3MP CMOS sensor and produces H.264 video at up to 2304 x 1296, displaying up to 1080p on a compatible Axiom display at 30 fps. (Source: 81411 Rev 3.)

Can the CAM300 be used for augmented reality?

Yes. When paired with a Raymarine AR200 sensor on a compatible Axiom display, the CAM300 supports ClearCruise augmented reality, overlaying AIS targets, waypoints and chart objects onto the live video. The CAM300 Augmented Reality Pack (T70581) bundles both items together. (Source: 81411 Rev 3.)

Is the CAM300 waterproof?

Yes. The CAM300 has an IPx6-rated housing and is tested to EN 60945 Section 8 (Exposed), making it suitable for exposed marine installations. (Source: 81411 Rev 3.)
