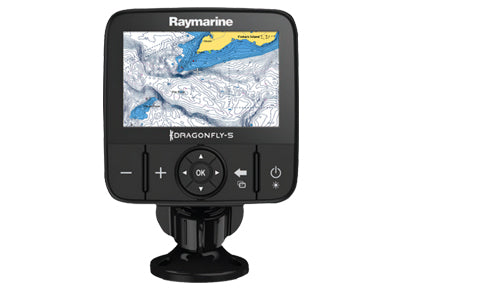

Raymarine Dragonfly-5m GPS Chart Plotter
Manufacturer Part No:
E70295 |
Sorry no longer available
The Dragonfly 5m - no charts - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded displays deliver brighter colours, sharper contrast and are guaranteed to never fog up.
Raymarine Dragonfly-5m GPS Chart Plotter
Sorry no longer available
The Dragonfly 5m - no charts - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded displays deliver brighter colours, sharper contrast and are guarant...
Raymarine Dragonfly-5m GPS Chart Plotter with Navionics EU Silver Chart
Sorry no longer available
The Dragonfly 5m - Navionics Silver chart for the whole of Europe including the Mediterranean - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded di...
Raymarine Dragonfly-5m GPS Chart Plotter with C-Map Essential EU Chart
Sorry no longer available
The Dragonfly 5m - C-map essentials Europe chart - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded displays deliver brighter colours, sharper cont...
Raymarine Dragonfly-5m GPS Chart Plotter with Navionics ROW Silver Chart
Sorry no longer available
The Dragonfly 5m - Navionics Silver chart for rest of world (not US) - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded displays deliver brighter c...
Raymarine Dragonfly-5m GPS Chart Plotter with C-Map Essential ROW Chart
Sorry no longer available
The Dragonfly 5m - C-map essentials rest of world chart - is purely a GPS Chartplotter The all-new Dragonfly 4m is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonflys all weather optically bonded displays deliver brighter colours, sharp...
Raymarine Dragonfly Mounting Bracket 4-5-7 Pro and Wi-Fish
Free UK Delivery √
Dragonfly Mounting Bracket for Dragonfly 4, 5, 7 Pro and Wi-Fish
£41.29 ex-VAT
Raymarine Dragonfly Power Cable Dragonfly-5m 1.5m
Free UK Delivery √
Dragonfly Power Cable Dragonfly-5m 1.5m
Raymarine Dragonfly 4 and 5 Flush Mount Kit
Free UK Delivery √
Dragonfly 4 and 5 Flush Mounting Kit for the Raymarine Dragonfly 4dv, 4dvs, 4 Pro, 5dvs, 5 Pro and 5m.
£37.13 ex-VAT
Raymarine Dragonfly 4 and 5 Suncover
Price Checked √ - Free UK Delivery √
Dragonfly 4 and 5 suncover for the Raymarine Dragonfly 4dv, 4dvs, 4 Pro, 5dvs, 5 Pro and 5m.
£33.79 ex-VAT
Raymarine Dragonfly 4 and 5 Flush Mount Suncover
Dragonfly 4 and 5 flush mounting suncover for the Raymarine Dragonfly 4 and 5 models when using flush mount kit.
£12.13 ex-VAT
Raymarine Dragonfly 4, 5 7 and Wi Fish Sonar Video
Raymarine Downvision Best DownVision Shots
Raymarine Dragonfly in Action Pittwater Wreck Australia
In The Box
1 Display unit
2 Locking collar
3 Pivot ball
4 M6 Hex bolt
5 Display bracket base
6 x3 M5 pozi-drive bolt
7 x3 M5 washer
8 x3 M5 locking nut
9 Ratchet arm
10 Mounting bracket
11 M5 Hex ratchet bolt
12 Ratchet plate
13 Compression washer
14 M5 washer
15 M5 locking nut
16 x3 Self tapping screws
17 Documentation
18 Transducer with combined power cable
1 Display unit
2 Locking collar
3 Pivot ball
4 M6 Hex bolt
5 Display bracket base
6 x3 M5 pozi-drive bolt
7 x3 M5 washer
8 x3 M5 locking nut
9 Documentation
10 1.5m (4.9ft) Power Cable
Dragonfly 4-5 and Wi-fish
Dragonfly 7 Pro
GENERAL SPECIFICATIONS
| Nominal Supply Voltage | 12 V DC | |
| Operating Voltage Range | 10.8 V DC to 15.6 V DC | |
| Power Consumption At Full Brightness | 4DV – 3 W RMS | 4DVS – 3.9 W RMS | 4Pro – 4.3 W RMS | 5DVS – 4.7 W RMS | 5M – 2.9 W RMS | 5Pro – 5.3 W RMS | 7Pro - 9 W RMS | |
| Connections | Power / Transducer combined input (5M model: Power input only) | |
| Waterproofing Standard | IPX6 and IPX7 | |
| Display Size | Dragonfly 4 (All models): 4.3 in | Dragonfly 5 (All models): 5.0 in | Dragonfly 7: 7.0in | |
| Display Resolution | Dragonfly 4 (All models): 480 x 272 WQVGA | Dragonfly 5 (All models): 800 x 480 WVGA | Dragonfly 7: 800 x 480 WVGA | |
| Aspect Ratio | Dragonfly 4 (All models): 16:9 | Dragonfly 5 (All models): 15:9 | Dragonfly 7: 15:9 | |
GPS & CARTOGRAPHY (PRO AND M MODELS ONLY)
| GPS Channels | 72 GPS / GLONASS Channels |
| Chart Compatibility | LightHouse vector and raster charts | Navionics Gold, Plus, Hotmaps and SonarChart | C-MAP by Jeppesen |
| Waypoints | 3,000 waypoints (split between up to 100 waypoint groups) |
| Tracks | 15 tracks (each track can contain up to 10,000 points) |
| Chart Media | MicroSD |
SONAR (ALL MODELS EXCEPT 5M)
| Sonar Type | CHIRP Sonar (All models except 5M) |
| Sonar Channels | 2 Channels - Sonar conical beam + DownVision™ wide fan beam (All models except 5M) |
| Depth Range | 183m (600ft) CHIRP DownVision™ and CHIRP Sonar Models 275m (900ft) |
| Warranty | 1 Year Warranty* |
Raymarine Dragonfly-4, Dragonfly-5, Dragonfly-7Pro, Wi-Fish Installation and operation instructions
Raymarine Dragonfly-6, Dragonfly-7 Installation and operation instructions
Raymarine Dragonfly CPT-DV & CPT-DVS hull, step, trolling motor bracket Installation
Raymarine Dragonfly surface mounting Installation instructions
