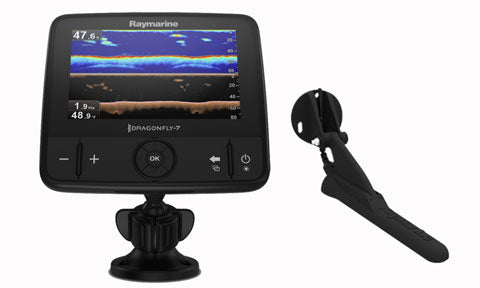

Raymarine Dragonfly-7 Pro GPS fishfinder with C-Map Essential ROW Chart
Manufacturer Part No:
E70320-CROW |
Sorry no longer available
The Dragonfly 7 PRO Combo - C-map essentials rest of world chart - offers dual CHIRP sonar channels (traditional sonar and Downvision) and a chartplotter. Unlike conventional fishfinders that transmit at a single frequency with each pulse, Dragonflys dual channel sonar uses CHIRP technology to transmit across a wide spectrum of sonar frequencies simultaneously – the result is much higher-resolution, life-like sonar images. Dragonfly PRO models feature built in Wi-Fi. Anglers can stream Dragonfly sonar data right to their smartphone or tablet with the Raymarine Wi-Fish mobile app. The Wi-Fish mobile app puts Dragonfly sonar vision right in the palm of your hand, plus you can rewind and capture sonar images to share online with friends. An all weather optically bonded display delivers brighter colours, sharper contrast, and will never fog up
Raymarine Dragonfly-7 Pro GPS fishfinder with CHIRP Down vision and Sonar
Price Checked √ - Free UK Delivery √
The Dragonfly 7 PRO Combo - no charts - offers dual CHIRP sonar channels (traditional sonar and Downvision) and a chartplotter. Unlike conventional fishfinders that transmit at a single frequency with each pulse, Dragonflys dual channel sonar uses CHIRP technology to transmit across a wide spectrum...
Raymarine Dragonfly-7 Pro GPS fishfinder with Navionics EU Silver Chart
Price Checked √ - Free UK Delivery √ Out of Stock until October 2020
The Dragonfly 7 PRO Combo - Navionics Silver chart for the whole of Europe including the Mediterranean - offers dual CHIRP sonar channels (traditional sonar and Downvision) and a chartplotter. Unlike conventional fishfinders that transmit at a single frequency with each pulse, Dragonflys dual channe...
Raymarine Dragonfly-7 Pro GPS fishfinder with C-Map Essential EU Chart
Price Checked √ - Free UK Delivery √
The Dragonfly 7 PRO Combo - C-map essentials Europe chart - offers dual CHIRP sonar channels (traditional sonar and Downvision) and a chartplotter. Unlike conventional fishfinders that transmit at a single frequency with each pulse, Dragonflys dual channel sonar uses CHIRP technology to transmit acr...
Raymarine Dragonfly-7 Pro GPS fishfinder with Navionics ROW Silver Chart
Sorry no longer available
The Dragonfly 7 PRO Combo - Navionics Silver chart for rest of world (not US) - offers dual CHIRP sonar channels (traditional sonar and Downvision) and a chartplotter. Unlike conventional fishfinders that transmit at a single frequency with each pulse, Dragonflys dual channel sonar uses CHIRP techno...
Raymarine Dragonfly-7 Pro GPS fishfinder with C-Map Essential ROW Chart
Sorry no longer available
The Dragonfly 7 PRO Combo - C-map essentials rest of world chart - offers dual CHIRP sonar channels (traditional sonar and Downvision) and a chartplotter. Unlike conventional fishfinders that transmit at a single frequency with each pulse, Dragonflys dual channel sonar uses CHIRP technology to trans...
Raymarine Dragonfly Mounting Bracket 4-5-7 Pro and Wi-Fish
Free UK Delivery √
Dragonfly Mounting Bracket for Dragonfly 4, 5, 7 Pro and Wi-Fish
£41.29 ex-VAT
Raymarine Dragonfly CPT-DV - CPT-DVS Trolling Motor Mount
Free UK Delivery √
Dragonfly Trolling Motor Bracket specifically designed for the Dragonfly CPT-DV and CPT-DVS transom mount transducers.
£33.79 ex-VAT
Raymarine Dragonfly CPT-DV - CPT-DVS Transom Mount Bracket
Free UK Delivery √
Dragonfly CPT-DV / CPT-DVS Transom Mount Bracket Electronics Accessories Raymarine Cpt Dragonfly DV & DVS. Color: Black, Product Type: Supports, Subcategories: Devices, Engineered for serious anglers, the CP470 sonar module bring best-in-class target separation and high resolution CHIRP son...
£28.33 ex-VAT
Raymarine Dragonfly CPT-DV - CPT-DVS Extension Cable 4m
Free UK Delivery √
Dragonfly CPT-DV / CPT-DVS 4m Extension Cable for units with 3-keyway connectors 4dvs, 4 Pro, 5dvs, 5 Pro and 7 Pro 4m Extension Cable f/CPT-DV & DVS Transducer & Dragonfly 4 - 5 & Wi-FishUse Raymarines 4m cable to extend the length of the standard cable provided wit
£33.79 ex-VAT
Raymarine Dragonfly 7 Pro Flush Mount Kit
Price Checked √ - Free UK Delivery √ On Offer
Dragonfly 7 Pro Flush Mounting Kit for the Raymarine Dragonfly 7 Pro Units
£49.63 ex-VAT
Raymarine Dragonfly 7 Pro Flush Mount Suncover
Free UK Delivery √
Dragonfly 7 Pro flush mounting suncover for the Raymarine Dragonfly 7 Pro when using flush mount kit.
£12.13 ex-VAT
Raymarine Dragonfly 7 Pro Suncover
Free UK Delivery √
Dragonfly 7 Pro suncover for the Raymarine Dragonfly 7 Pro units.
£33.79 ex-VAT
Raymarine CPT-70 Dragonfly Through Hull Plastic CHIRP Transducer
Price Checked √ - Free UK Delivery √
Dragonfly CPT-70 Urethane through hull transducer with fairing block with 10m cable, can be used with all Dragonfly units but requires adaptor cable A80278 when connecting to older units with red looking collars.
£255.46 ex-VAT
Raymarine CPT-80 Dragonfly Through Hull Bronze CHIRP Transducer
Price Checked √ - Free UK Delivery √
Dragonfly CPT-80 Bronze through hull transducer with fairing block with 10m cable, can be used with all Dragonfly units but requires adaptor cable A80278 when connecting to older units with red looking collars.
£305.46 ex-VAT
Raymarine CPT-80 and CPT-120 High Speed Fairing
Free UK Delivery √
High speed fairing block for CPT-80 and CPT-120 transducers
£80.00 ex-VAT
Raymarine Dragonfly CPT-DVS Spare Transducer
Price Checked √ - Free UK Delivery √
Dragonfly CPT-DVS Transom Mount transducer can be used with the Dragonfly 4 and 5 (all variants except 5M) and the new 7PRO model 6m cable. If using with an original Dragonfly 5.7" or 7" model, use the A80331 Adapter Cable. Cable Length (Ft/M) 13ft / 4m
£88.29 ex-VAT
Raymarine Dragonfly 4, 5 7 and Wi Fish Sonar Video
Raymarine Downvision Best DownVision Shots
Raymarine Dragonfly in Action Pittwater Wreck Australia
In The Box
1 Display unit
2 Locking collar
3 Pivot ball
4 M6 Hex bolt
5 Display bracket base
6 x3 M5 pozi-drive bolt
7 x3 M5 washer
8 x3 M5 locking nut
9 Ratchet arm
10 Mounting bracket
11 M5 Hex ratchet bolt
12 Ratchet plate
13 Compression washer
14 M5 washer
15 M5 locking nut
16 x3 Self tapping screws
17 Documentation
18 Transducer with combined power cable
1 Display unit
2 Locking collar
3 Pivot ball
4 M6 Hex bolt
5 Display bracket base
6 x3 M5 pozi-drive bolt
7 x3 M5 washer
8 x3 M5 locking nut
9 Documentation
10 1.5m (4.9ft) Power Cable
Dragonfly 4-5 and Wi-fish
Dragonfly 7 Pro
GENERAL SPECIFICATIONS
| Nominal Supply Voltage | 12 V DC | |
| Operating Voltage Range | 10.8 V DC to 15.6 V DC | |
| Power Consumption At Full Brightness | 4DV – 3 W RMS | 4DVS – 3.9 W RMS | 4Pro – 4.3 W RMS | 5DVS – 4.7 W RMS | 5M – 2.9 W RMS | 5Pro – 5.3 W RMS | 7Pro - 9 W RMS | |
| Connections | Power / Transducer combined input (5M model: Power input only) | |
| Waterproofing Standard | IPX6 and IPX7 | |
| Display Size | Dragonfly 4 (All models): 4.3 in | Dragonfly 5 (All models): 5.0 in | Dragonfly 7: 7.0in | |
| Display Resolution | Dragonfly 4 (All models): 480 x 272 WQVGA | Dragonfly 5 (All models): 800 x 480 WVGA | Dragonfly 7: 800 x 480 WVGA | |
| Aspect Ratio | Dragonfly 4 (All models): 16:9 | Dragonfly 5 (All models): 15:9 | Dragonfly 7: 15:9 | |
GPS & CARTOGRAPHY (PRO AND M MODELS ONLY)
| GPS Channels | 72 GPS / GLONASS Channels |
| Chart Compatibility | LightHouse vector and raster charts | Navionics Gold, Plus, Hotmaps and SonarChart | C-MAP by Jeppesen |
| Waypoints | 3,000 waypoints (split between up to 100 waypoint groups) |
| Tracks | 15 tracks (each track can contain up to 10,000 points) |
| Chart Media | MicroSD |
SONAR (ALL MODELS EXCEPT 5M)
| Sonar Type | CHIRP Sonar (All models except 5M) |
| Sonar Channels | 2 Channels - Sonar conical beam + DownVision™ wide fan beam (All models except 5M) |
| Depth Range | 183m (600ft) CHIRP DownVision™ and CHIRP Sonar Models 275m (900ft) |
| Warranty | 1 Year Warranty* |
