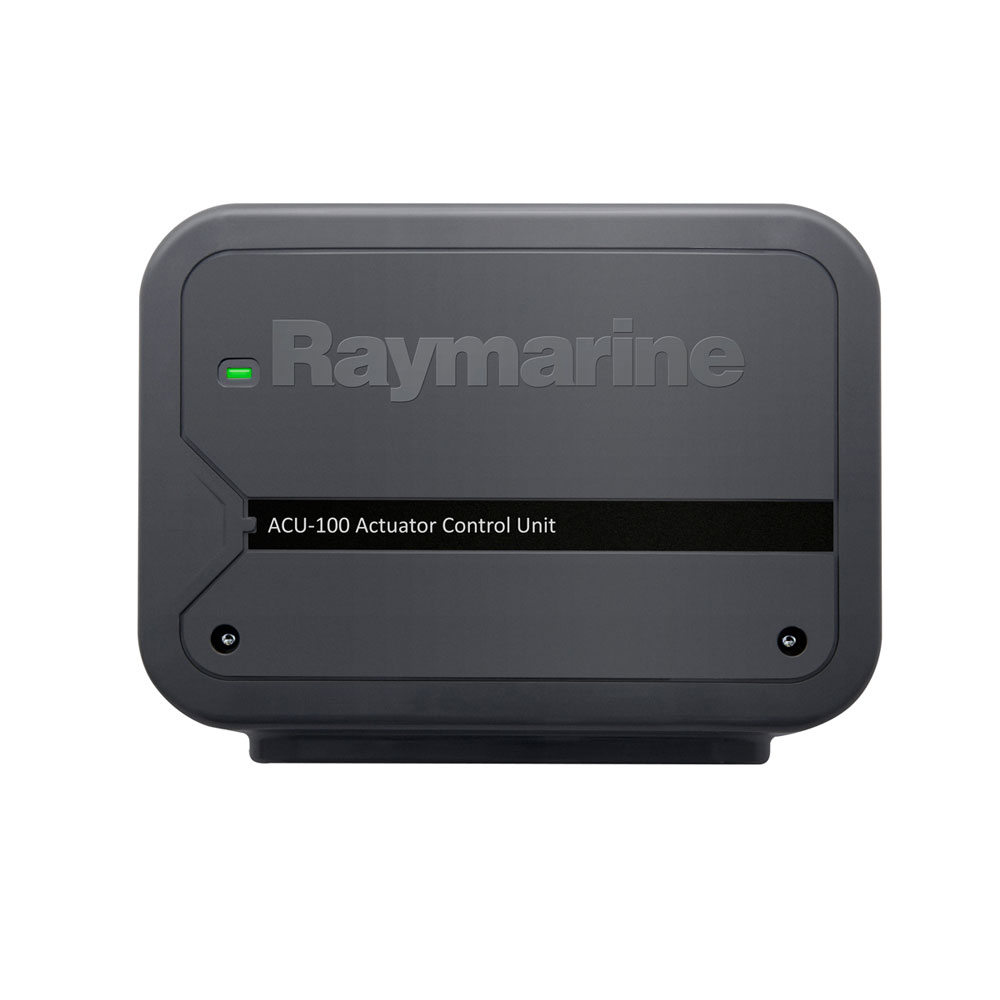

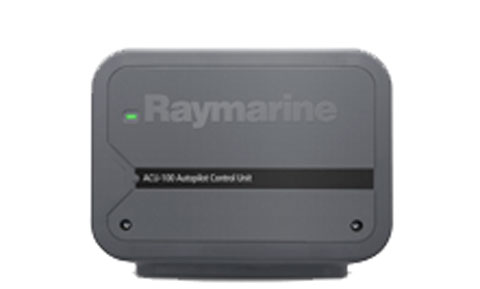

Raymarine Evolution ACU-100 Actuator Control Unit, Drive interface

Manufacturer Part No: E70098 | ID: 154771 | £390.83 ex-VAT
Price Checked √ - Free UK Delivery √ On Offer

The ACU-100 Autopilot control unit suitable for wheel drive, tiller drive and Type 0.5 hydraulic pump. Max continuous current 7 amps. No clutch output.

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering type:


Supported Drives

ACU-100    Wheel, tiller and 0.5 ltr Hydraulic
ACU-150 Type-1 Hydraulic Drive Unit
ACU-200 Type 1 Raymarine hydraulic, linear and rotary mechanical drives
ACU-300 For solenoid controlled steering systems and Raymarine constant running hydraulic pumps
ACU-400 Type 2 and 3 Raymarine hydraulic, linear, and rotary mechanical drives

ACU-100, ACU-150

1. ACU unit x 1

2. Documentation pack x 1

3. Screws (pan head type) x 2

4. SeaTalkng® spur to bare wires cable 1 m (3.3 ft) x 1

Raymarine Evolution EV1 Sensor Core 9-axis pitch, roll, yaw and heading sensor

The EV-1 Sensor Core is at the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-...


ID: 154118 | £555.00 ex-VAT

Raymarine Evolution EV2 Sensor Core 9-axis pitch, roll, yaw and heading sensor

The EV-2 is designed for the latest drive-by-wire steering systems. The intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to...


ID: 154119 | £1,585.83 ex-VAT

Raymarine Evolution ACU-100 Actuator Control Unit, Drive interface

Price Checked √ - Free UK Delivery √ On Offer

The ACU-100 Autopilot control unit suitable for wheel drive, tiller drive and Type 0.5 hydraulic pump. Max continuous current 7 amps. No clutch output.


ID: 154771 | £390.83 ex-VAT

Raymarine ACU-150 Actuator Control Unit

The ACU-150 Autopilot control unit suitable for Type 1 hydraulic pumps. Max continuous current 12 amps. Has clutch output and can supply SeaTalk ng with 12 volt power. Not supplied with rudder reference sensor.


ID: 158410 | £429.16 ex-VAT

Raymarine Evolution ACU-200 Actuator Control Unit, Drive interface

The ACU-200 Autopilot control unit suitable for Type 1 hydraulic, linear and rotary mechanical drives. Max continuous current 15 amps. Has clutch output and can supply SeaTalk ng with 12 volt power. Supplied with rudder reference sensor.


ID: 154120 | £633.33 ex-VAT

Raymarine Evolution ACU-300 Actuator Control Unit, Drive interface

The ACU-300 Autopilot control unit suitable for solenoid controlled steering systems and Raymarine constant running hydraulic pumps. Max continuous current 5 amps. Has no clutch output and can supply SeaTalk ng with 12 volt power. Supplied with rudder reference sensor.


ID: 154121 | £1,345.83 ex-VAT

Raymarine Evolution ACU-400 Actuator Control Unit, Drive interface

The ACU-400 Autopilot control unit suitable for Type 2 hydraulic, linear and rotary mechanical drives. Max continuous current 30 amps. Has clutch output and can supply SeaTalk ng with 12 volt power. Supplied with rudder reference sensor.


ID: 154122 | £1,428.33 ex-VAT

Raymarine Evolution Cabling Kit SeaTalk ng

The Evolution cabling kit is a basic SeaTalk ng backbone kit contains the following parts : 1 x ng power cable, 1 x 5m ng backbone cable, 1 x 1m ng spur cable, 1 x ng 5 way block, 2 x ng T-pieces and 2 x ng terminators.


ID: 154840 | £115.83 ex-VAT

Raymarine Evolution Cabling Kit EV-2 SeaTalk ng

The Evolution EV-2 SeaTalk ng cable kit contains 1 x SeaTalk ng Power Cable 0.4 meters, 2 x DeviceNet / SeaTalk ng Adaptor Cable (Female) and 2 x SeaTalk ng Terminators.


ID: 156166 | £60.83 ex-VAT

Raymarine Evolution EV-unit seal pack

Evolution EV-unit seal pack


ID: 155188 | £21.70 ex-VAT

Raymarine Evolution EV-unit wall bracket

Wall mounting bracket for Evolution EV1 or EV2 Sensor Core


ID: 155189 | £35.08 ex-VAT

Raymarine RS150/EV1/EV2Microtalk Puck Mounting Kit

RS150/EV1/EV2/MicroTalk Puck Mount Clamshell Riser


ID: 157646 | £25.00 ex-VAT
