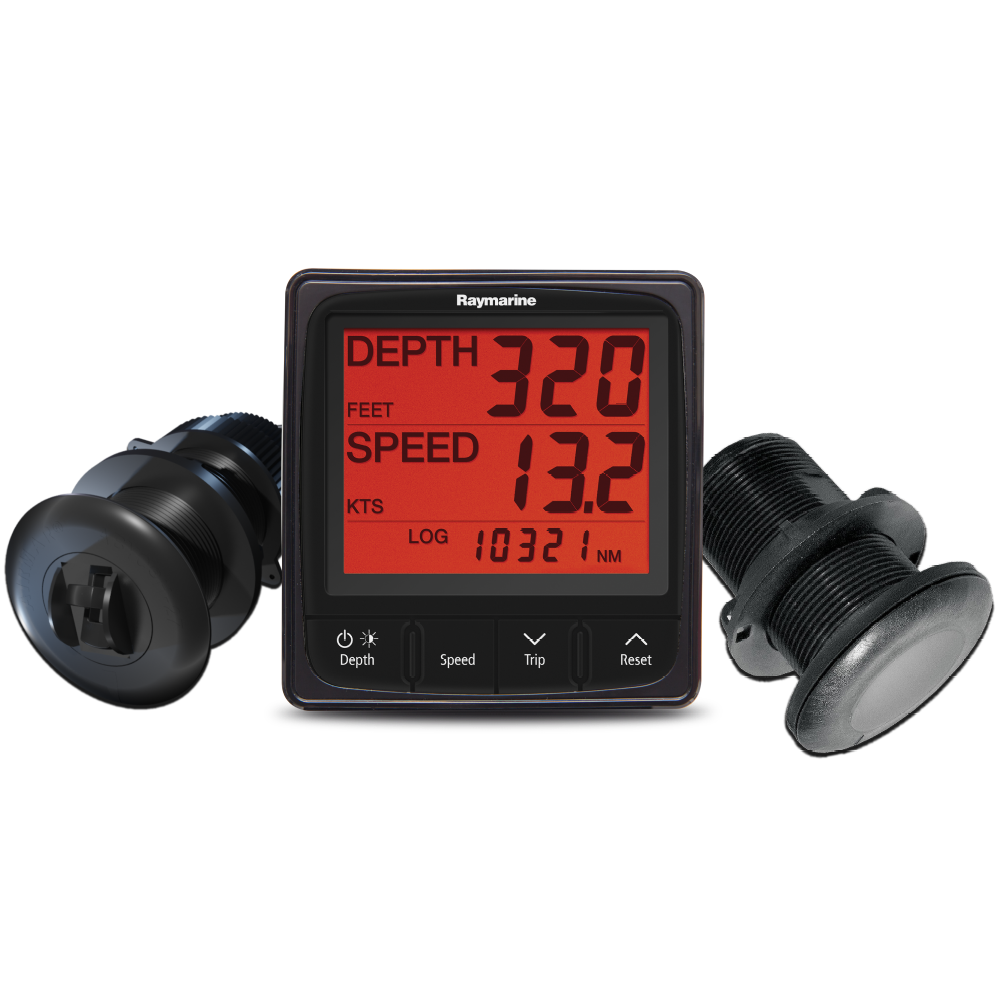

Raymarine i50 Tridata Display with P120 and P319 Through Hull Transducers

Raymarine i50 Tridata Display with P120 and P319 Through Hull Transducers

Manufacturer Part No: T70582 | £564.63 ex-VAT
Price Checked √ - Free UK Delivery √

The i50 Tridata allows you to see depth and speed data. Has Easy to read 3-line display, dedicated depth and speed displays Trip/log, sea temperature and SOG. Large numerals and digits with excellent viewing angles for both day and night conditions and simple, push-button controls make i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design. Red back lighting for enhanced night time visibility. Units are both SeaTalk 1 and SeaTalk ng compatible. Boxed with P319 Low Profile Through Hull Plastic Depth Transducer and P120 Speed Temperature Low Profile Plastic Through Hull Retractable Transducer

In the Box

1.  Instrument display

2.  Suncover (to match i70s, p70s, p70Rs, eS Series)

3.  Front bezel (to match i70s, p70s, p70Rs, eS Series)

4.  Gasket

5.  Suncover (to match a, c, e Series)

6.  Front bezel (to match a, c, e Series)

7.  SeaTalkng spur cable

8.  SeaTalkng blanking plug

9.  4 x fixing screws

10.  Documentation

Dimensions

A  110 mm (4.22”)

B  115 mm (4.52”)

C  14 mm (0.55”)

D  30 mm (1.18”)

E  35 mm (1.38”)

F  90 mm (3.54”)

G  17 mm (0.67”)

Specifications

  • Weight:
    • Plastic—0.6 kg (1.3 lb)
    • Bronze—0.9 kg (2.0 lb)
  • Hull Deadrise: Up to 8°
  • Acoustic Window: Urethane
  • Hole Diameter: 51 mm (2”)

Specifications

  • Weight:
    • 0.7 kg (1.4 lb)—Plastic
    • 1.3 kg (2.8 lb)—Bronze
    • 1.6 kg (3.5 lb)—Stainless Steel
  • Speed Range: 2 knots to 45 knots (2 MPH to 52 MPH)
  • Acoustic Window: Urethane
  • Hull Deadrise: Up to 22°
  • Data Update Rate: 1 per second
  • Pressure Rating: 3 m (10’)
  • Pulse Rate: 17,000 p/nm* (4.8 Hz per knot)—*p/nm = pulses per nautical mile
  • Supply Voltage: 9 VDC to 16 VDC
  • Supply Current: <200 mA
  • Standard Cable Length: 6 m (20’) NMEA 2000 cable, 9 m (30’) Analog
  • Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
  • Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
  • CE Regulation: Complies to IERC60945
