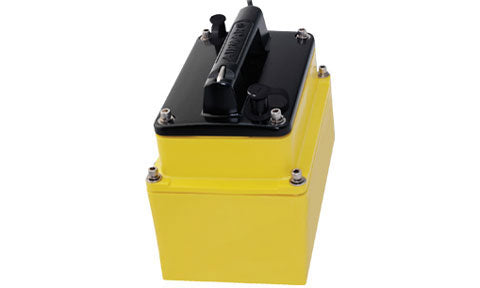

Raymarine M265LM 1kW Depth In Hull CHIRP Low-Medium Transducer with Mounting Kit

Raymarine M265LM 1kW Depth In Hull CHIRP Low-Medium Transducer with Mounting Kit

Manufacturer Part No: A80038 | £1,768.33 ex-VAT

The M265LH CHIRP Depth In Hull Transducer. Compatible hull material: fiberglass. Max Power: 1000 watts. Frequency: Low 42-65 kHz and Medium 85-135 kHz Beamwidth: Low 16-25 degrees, Medium 11-16 degrees. Cable: 30ft (9.1m) cable with connector for connection to CP450C, CP470 and CP570. Comes with In-Hull Mounting Kit




Features

  • Depth only
  • Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° beamwidth
  • Medium—CHIRPS from 85 kHz to 135 kHz 16° to 11° beamwidth
  • 73 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
  • Fishing Profile: Recreational and commercial inshore and offshore fishing (deep-water canyon and sea-mount tracking)
  • Plastic / Urethane transducer housing
  • Hull Type: Solid fiberglass only



Specifications

  • Hull deadrise: 0° to 30°
  • Acoustic window: Layered plastic urethane
  • Weight: 6.2 kg (13.5 lb)
