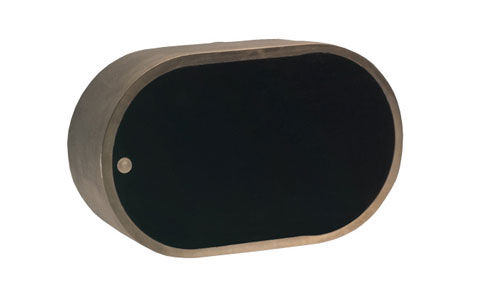

Raymarine PM275LH-W 1kW Depth Pocket Mount CHIRP Low-High Transducer

Raymarine PM275LH-W 1kW Depth Pocket Mount CHIRP Low-High Transducer

Manufacturer Part No: A80325 | £1,768.33 ex-VAT

The PM275LH-W Wide Beam CHIRP Depth Pocket Keel Mount Transducer. Compatible hull material: fiberglass and wood. Max Power: 1000 watts. Frequency: Low 42-65 kHz and High 150-250. Beamwidth: Low 16-25 degrees, High constant 25 degrees. Cable: 30ft (9.1m) cable with connector for connection to CP450C, CP470 and CP570.




Features

  • Ideal for marking baitfish and game fish in shallow to mid-water depths of 300ft - 600ft
  • Depth & fast-response water-temperature sensor
  • Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° beamwidth
  • High—CHIRPS from 150 kHz to 250 kHz 25° constant beamwidth
  • 123 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Boat Size: 8 m (25’) and above
  • Hull Type: Fiberglass or wood



Specifications

  • Hull deadrise: n/a
  • Acoustic window: Urethane
  • Weight: 5.25 kg (11.585 lb)
  •
