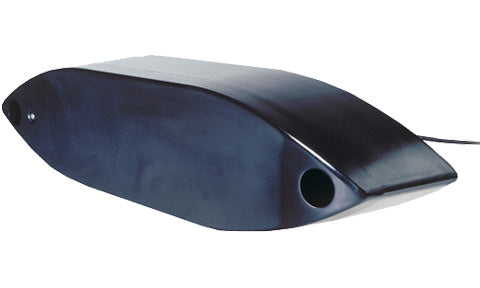

![Raymarine R509LM 3kW Depth In Hull CHIRP Low-Medium Transducer with Mounting Kit](https://media.hudsonmarine.co.uk/uploads/Raymarine/Fishfinder Transducers/A80211-Raymarine R509LM 3kW Depth In Hull CHIRP Low-Medium Transducer with Mounting Kit.jpg)
Raymarine R509LM 3kW Depth In Hull CHIRP Low-Medium Transducer with Mounting Kit
The R509LM CHIRP Depth In Hull Transducer. Compatible hull material: fiberglass. Max Power: 3000 watts. Frequency: Low 28-60 kHz and Medium 80-130 kHz Beamwidth: Low 9-23 degrees, Medium 8-13 degrees. Cable: 30ft (9.1m) cable with connector for connection to CP450C, CP470 and CP570. Comes with In-Hull Mounting Kit
![](https://d1ftp75gsnhq96.cloudfront.net/uploads/Airmar/r209-r309-r509-install%20%281%29.jpg)
Features
- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 28 kHz to 60 kHz 23° to 9° port-starboard beamwidth (11° to 5° fore-aft beamwidth)
- Medium—CHIRPS from 80 kHz to 130 kHz 13° to 8° beamwidth
- 82 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 28, 38, 50, 88, and 107 kHz plus everything else in the bandwidth
- Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
- Epoxy transducer housing with High-Performance Fairing
- Boat Size: 12 m (40’) and above
- Hull Type: Fiberglass, wood, or metal
![](https://d1ftp75gsnhq96.cloudfront.net/uploads/Airmar/Ko%CC%88rbild-8.jpg)
Specifications
- Hull deadrise: 0° to 25°
- Acoustic Window: Epoxy/urethane
- Weight: 20.8 kg (46 lb)
