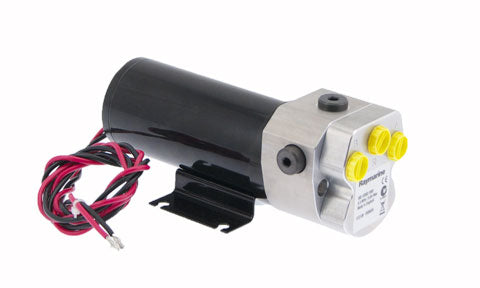

Raymarine Type 1 24 Volt Hydraulic Pump for Ram Capacity 80cc-230cc
The Type 1 24 Volt hydraulic pump is rugged hydraulic pump for hydraulic steering system fitted with a ram capacity of between 80cc-230cc. Works with ACU-200 and SPX 30.

Hydraulic Steering Systems
Raymarine Evolution pilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system.
If your system is hydraulic...
You'll need to find out the size (in cc) of the hydraulic cylinder ram(s) mounted to the rudder or inboard engined boats, or to the drive unit on outboard engined boats. Your steering system documentation will have this information.

In the Box
• hydraulic pump
• 1 / 4 in BSP bonded rubber / metal seals (x3)
• 1 / 4 in BSP to 1 / 4 in NPT adaptors (x3)
