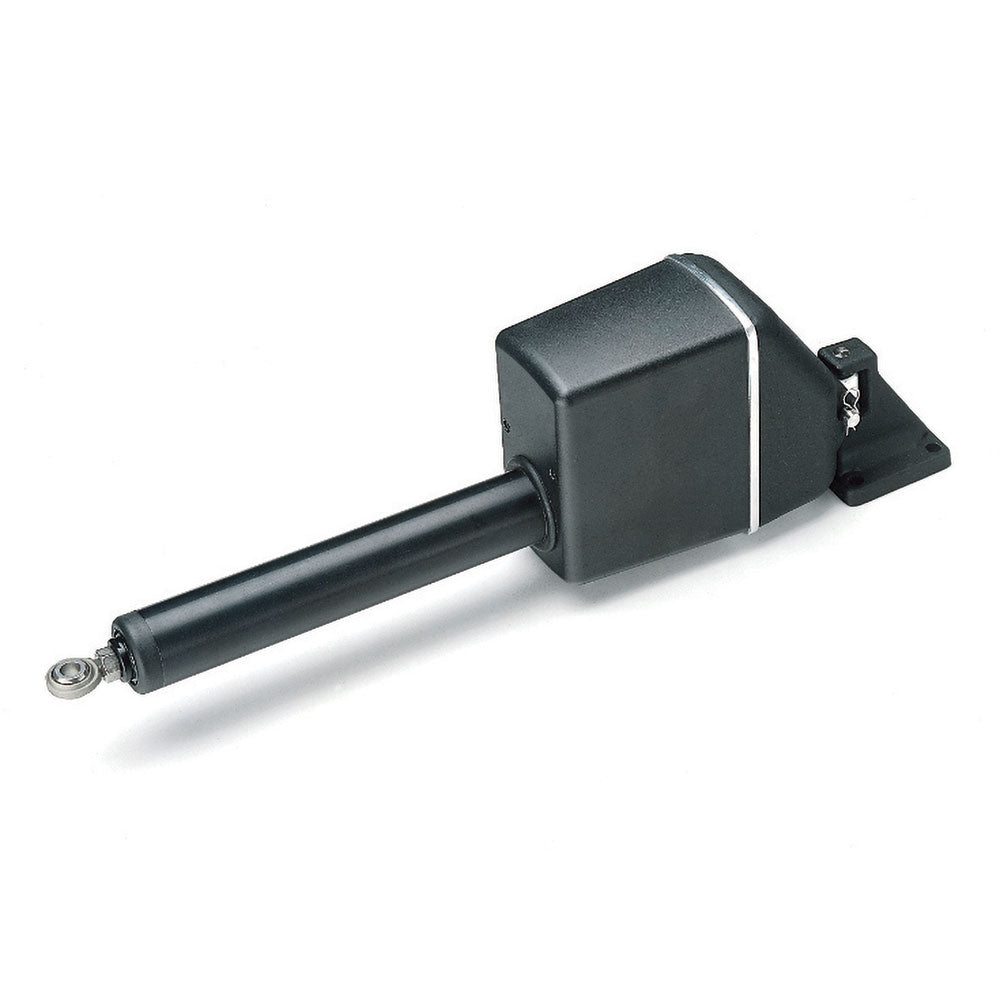

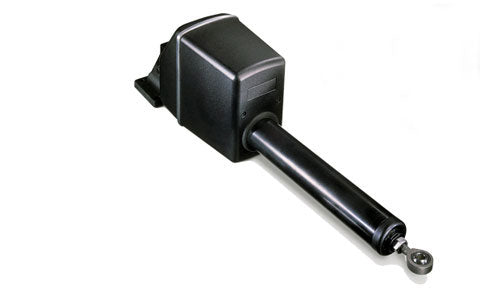

Raymarine Type 2 12 Volt Autopilot Short Shaft Linear Drive, Up to 15,000kg Displacement

Raymarine Type 2 12 Volt Autopilot Short Shaft Linear Drive, Up to 15,000kg Displacement

Manufacturer Part No: M81131 | £1,719.63 ex-VAT
Price Checked √ - Free UK Delivery √

The Type 2 12 volt short shaft linear drive unit is one of the most commonly used drive types for sailing vessels. Raymarine mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation. Mounted below decks, the linear drive moves the rudder directly by pushing the tiller arm or a rudder quadrant.. Suitable for wheel steered boats up to 15,000 kg displacement. Works with ACU-400 and SPX 30.

Mechanical Linear Drives

Raymarine's most commonly used drive types for sailing vessels. Raymarine mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation. Mounted below decks, the linear drive moves the rudder directly by pushing the tiller arm or a rudder quadrant.

A linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering manufacturer may be required. Must be able to back-drive steering system from the rudder.

In the Box

1. Linear drive

2. Mounting foot -

consisting of: foot, pivot pin, washer (x2), R-clip (x

3. Tiller Drive Pin -

consisting of: tiller pin, R-clip, top washer, lock washer, nut

Raymarine Linear Drive Front Anchorage Pin

Front Anchorage Pin S/Assy

£60.46 ex-VAT

Raymarine M12 Rod End (Rose Joint)

M12 Rod End. Part 30 Exploded Diagram

£88.79 ex-VAT

Raymarine Type 1 Linear Drive Motor

Type 1 Linear Drive Motor. Includes Drive pulley, Drive motor and Ferrite. Parts 31, 32 and 33 exploded diagram.

£299.83 ex-VAT

Raymarine Type 2 (12v) Linear Drive Motor

Type 2 (12v) Linear Drive Motor. Includes Drive pulley, Drive motor and Ferrite. Parts 31, 32 and 33 exploded diagram.

£225.83 ex-VAT

Raymarine Type 2 (24v) Linear Drive Motor

Type 2 (24v) Linear Drive Motor. Includes Drive pulley, Drive motor and Ferrite. Parts 31, 32 and 33 exploded diagram.

£225.83 ex-VAT

Raymarine Short Stroke Linear Drive Module

Short Stroke Linear Drive Module. Part 29 Exploded Diagram

£1,250.00 ex-VAT

Raymarine Long Stroke Linear Drive Module

Long Stroke Linear Drive Module. Part 29 Exploded Diagram

Raymarine Linear Drive Belt

Linear Drive Belt. Part 16 Exploded Diagram

£29.33 ex-VAT

Raymarine Linear Drive Clutch Coil Asssembly

Linear Drive Clutch Coil Asssembly. Part 10 Exploded Diagram.

£186.29 ex-VAT

Raymarine Linear Drive Heavy Duty Gear Kit

Linear Drive Heavy Duty Gear Kit. Parts 13, 14,15 and 31 Exploded Diagram.

£150.83 ex-VAT

Raymarine Linear Drive Mounting Foot

Linear Drive Mounting Foot

£154.00 ex-VAT

Raymarine Linear Drive Thrust Bearing

Linear Drive Thrust Bearing. Parts 19, 20, 21 and 22 Exploded Diagram.

£102.67 ex-VAT
