Raymarine Wi-FiSH black box Wi-Fi CHIRP DownVision Fishfinder

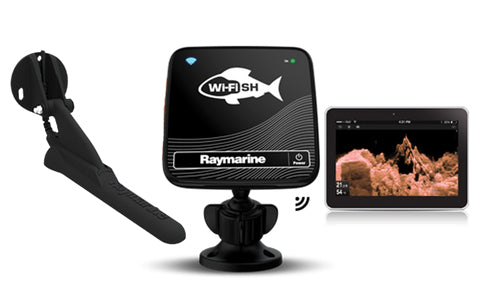

The Wi-Fish is a black box CHIRP sonar with Wi-Fi streaming to a compatible smartphone or tablet. Using Raymarines Wi-Fish mobile app, fisherman can view, pause, and rewind sonar imagery, making it easy to record their favourite fishing spots and share with friends online. Supplied with a CHIRP Transom mount transducer.
In The Box
1 Display unit
2 Locking collar
3 Pivot ball
4 M6 Hex bolt
5 Display bracket base
6 x3 M5 pozi-drive bolt
7 x3 M5 washer
8 x3 M5 locking nut
9 Ratchet arm
10 Mounting bracket
11 M5 Hex ratchet bolt
12 Ratchet plate
13 Compression washer
14 M5 washer
15 M5 locking nut
16 x3 Self tapping screws
17 Documentation
18 Transducer with combined power cable
1 Display unit
2 Locking collar
3 Pivot ball
4 M6 Hex bolt
5 Display bracket base
6 x3 M5 pozi-drive bolt
7 x3 M5 washer
8 x3 M5 locking nut
9 Documentation
10 1.5m (4.9ft) Power Cable
Dragonfly 4-5 and Wi-fish
Dragonfly 7 Pro
GENERAL SPECIFICATIONS
| Nominal Supply Voltage | 12 V DC | |
| Operating Voltage Range | 10.8 V DC to 15.6 V DC | |
| Power Consumption At Full Brightness | 4DV – 3 W RMS | 4DVS – 3.9 W RMS | 4Pro – 4.3 W RMS | 5DVS – 4.7 W RMS | 5M – 2.9 W RMS | 5Pro – 5.3 W RMS | 7Pro - 9 W RMS | |
| Connections | Power / Transducer combined input (5M model: Power input only) | |
| Waterproofing Standard | IPX6 and IPX7 | |
| Display Size | Dragonfly 4 (All models): 4.3 in | Dragonfly 5 (All models): 5.0 in | Dragonfly 7: 7.0in | |
| Display Resolution | Dragonfly 4 (All models): 480 x 272 WQVGA | Dragonfly 5 (All models): 800 x 480 WVGA | Dragonfly 7: 800 x 480 WVGA | |
| Aspect Ratio | Dragonfly 4 (All models): 16:9 | Dragonfly 5 (All models): 15:9 | Dragonfly 7: 15:9 | |
GPS & CARTOGRAPHY (PRO AND M MODELS ONLY)
| GPS Channels | 72 GPS / GLONASS Channels |
| Chart Compatibility | LightHouse vector and raster charts | Navionics Gold, Plus, Hotmaps and SonarChart | C-MAP by Jeppesen |
| Waypoints | 3,000 waypoints (split between up to 100 waypoint groups) |
| Tracks | 15 tracks (each track can contain up to 10,000 points) |
| Chart Media | MicroSD |
SONAR (ALL MODELS EXCEPT 5M)
| Sonar Type | CHIRP Sonar (All models except 5M) |
| Sonar Channels | 2 Channels - Sonar conical beam + DownVision™ wide fan beam (All models except 5M) |
| Depth Range | 183m (600ft) CHIRP DownVision™ and CHIRP Sonar Models 275m (900ft) |
| Warranty | 1 Year Warranty* |
Raymarine Dragonfly-4, Dragonfly-5, Dragonfly-7Pro, Wi-Fish Installation and operation instructions
Raymarine Dragonfly-6, Dragonfly-7 Installation and operation instructions
Raymarine Dragonfly CPT-DV & CPT-DVS hull, step, trolling motor bracket Installation
Raymarine Dragonfly surface mounting Installation instructions
