Balmar

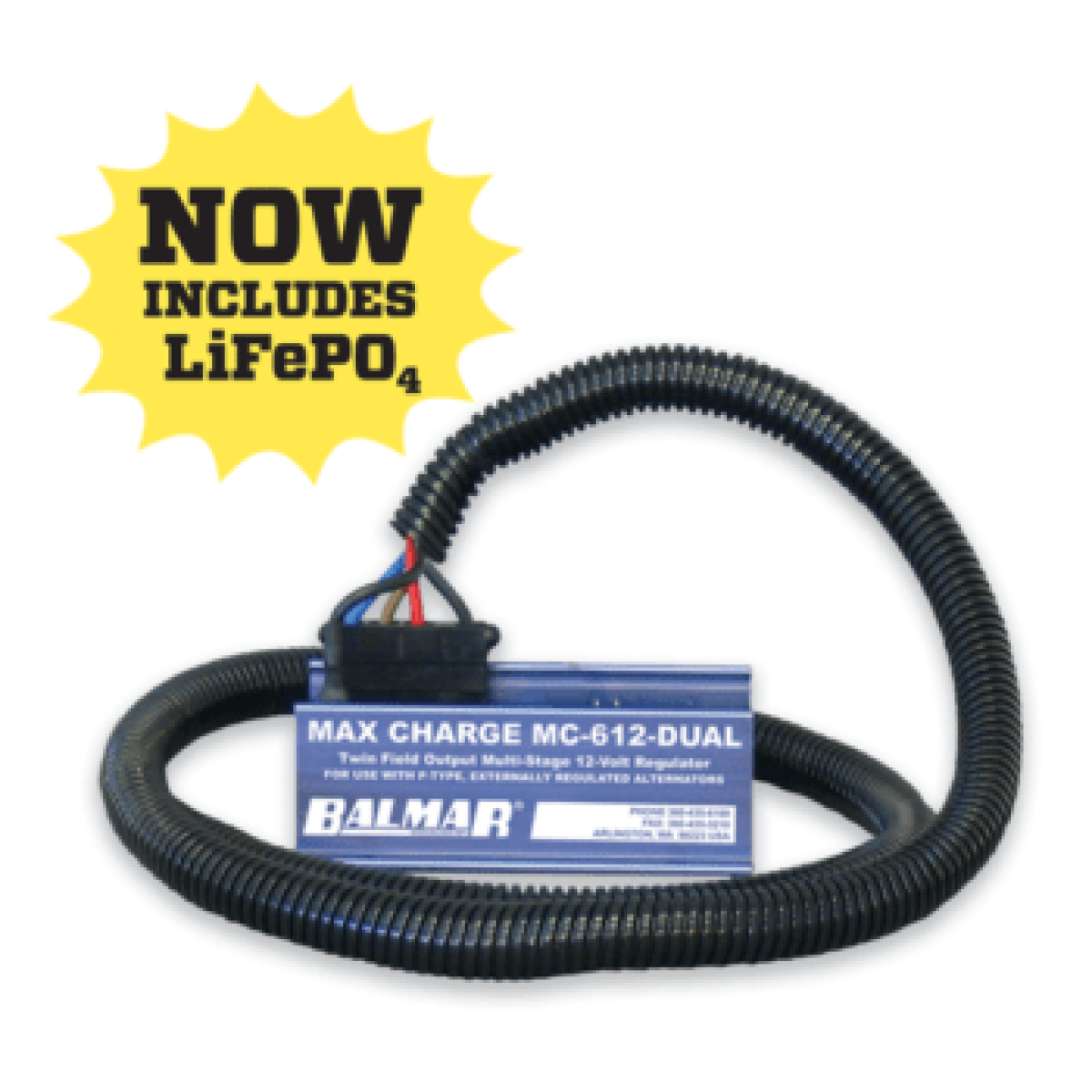

Regulator, Dual MC-612 Multi-Stage, 12v, w/Harnesses
£559.34
/
Tax included.
Shipping calculated at checkout.
MC-612-DUAL-H
12V multi-stage Max Charge regulator that drives two alternators on a single engine, supplied complete with two wiring harnesses.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Balmar Max Charge MC-612-DUAL is a multi-stage voltage regulator designed for single-engine, dual-alternator installations where both alternators charge the same large battery bank. It provides two field output connectors, two power input connectors and two system ground connections, so both 12-volt externally regulated P-type alternators can be driven from a single regulator without splitting and splicing field wires. Its microprocessor-controlled charging ramps gently to full bulk voltage, then reduces to absorption and float for a complete, controlled charge.
User-selectable programs cover deep cycle flooded, standard flooded, gel, AGM, spiral wound AGM and LiFePO4 batteries, along with a universal default program and a program for vessels running voltage-sensitive halogen equipment. When used with optional MC-TS-A alternator and MC-TS-B battery temperature sensors, the regulator monitors temperature and adjusts output accordingly, and the flexible sensing configuration lets you monitor either two alternators and one battery bank, or one alternator and two battery banks. It also features Balmar's Belt Load Manager to limit field output and protect drive belts. This version is supplied complete with two wiring harnesses for connecting both alternators.
PRODUCT DETAILS
- Controls two 12V externally regulated P-type alternators on a single engine
- Supplied with two wiring harnesses to connect both alternators
- Dual field outputs, power inputs and grounds remove the need to split field wires
- User-selectable programs for deep cycle flooded, standard flooded, gel, AGM, spiral wound AGM and LiFePO4 batteries
- Flexible sensing: two alternators and one bank, or one alternator and two banks
- Belt Load Manager limits field output to protect drive belts
- Over-temperature protection with optional MC-TS-A and MC-TS-B temperature sensors
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Electrical
| System voltage | 12 V |
| Compatible alternator field type | Externally regulated P-type (positive field) |
| Configuration | Single engine, dual alternator (two field outputs, two power inputs, two grounds) |
| Charging program | Multi-stage (bulk, absorption, float) |
| Battery programs | Deep cycle flooded, standard flooded, gel, AGM, spiral wound AGM, LiFePO4, plus universal default and halogen |
Programming
| Sensing options | Two alternators and one bank, or one alternator and two banks |
| Belt Load Manager | Adjustable maximum field percentage |
Temperature Compensation
| Alternator temp sensor | Optional MC-TS-A (not included) |
| Battery temp sensor | Optional MC-TS-B (not included) |
Physical
| Wiring harnesses | Two included |
General
| Series | Max Charge |
| Manufacturer | Balmar |
No videos available for this product.
What is the MC-612-DUAL-H for?
It is a 12-volt multi-stage regulator for single-engine installations that use two alternators to charge the same large battery bank. Its dual field outputs drive both alternators from one regulator, so there is no need to split and splice the field wire. This -H version includes the two wiring harnesses required.
What comes in the box?
The MC-612-DUAL-H is supplied with the regulator and two wiring harnesses, one for each alternator. Alternator and battery temperature sensors (MC-TS-A and MC-TS-B) are optional and purchased separately.
Can it monitor two battery banks?
Yes. Using the optional temperature sensors, the flexible sensing configuration lets you monitor either two alternators and one battery bank, or one alternator and two battery banks, depending on which setting best suits your installation.
