Balmar
Regulator, MC-618 Multi-Stage, 12v, w/o Harness
£436.80
/
Tax included.
Shipping calculated at checkout.
MC-618
Fifth-generation Max Charge multi-stage 12V voltage regulator for externally regulated P-type alternators, supplied without a wiring harness.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

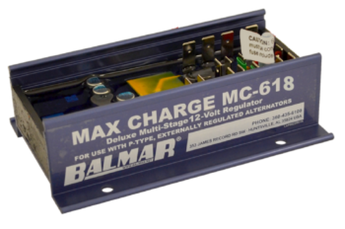

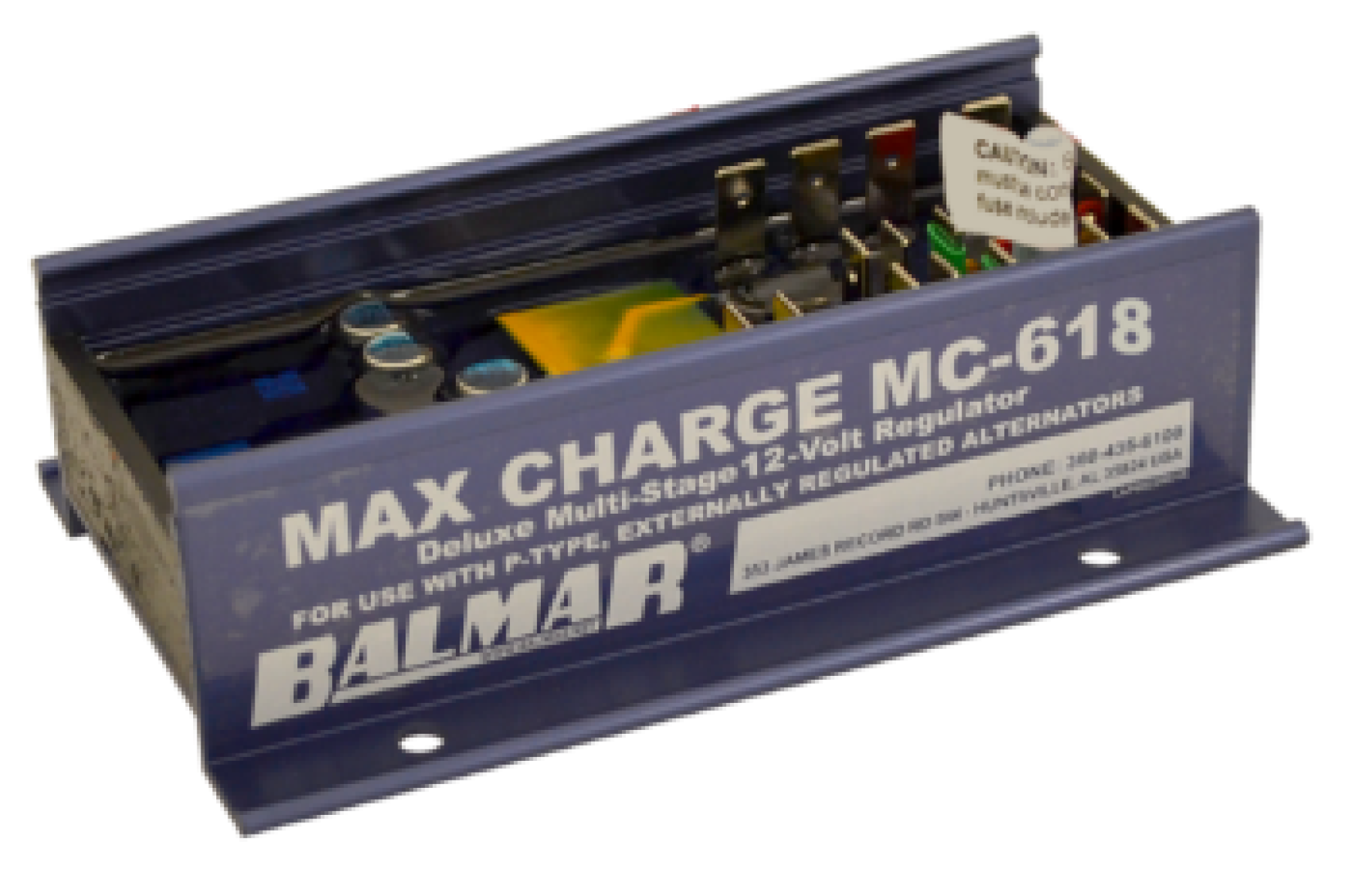

The Balmar MC-618 is the latest generation of Balmar's smart, multi-stage Max Charge voltage regulator, developed to deliver precise, battery-specific charging control for Balmar high-output 12-volt alternators and other externally regulated P-type alternators. It replaces the long-serving MC-614 and adds a new Carbon Foam AGM battery profile, improved high-temperature alternator control, and protection that prevents lithium batteries from being charged below freezing. User-selectable programs cover deep cycle flooded, standard flooded, gel, AGM, spiral wound AGM, Carbon Foam and LiFePO4 batteries, plus a universal default program for vessels running voltage-sensitive halogen equipment.
Beyond its preset battery programs, the MC-618 offers a full suite of advanced programming modes so charging can be tuned to almost any installation. It communicates with the Balmar SG200 Battery Monitor over the SmartLink network, letting you view real-time charging stage, target versus actual voltage and field output percentage on the SG200 colour display, and when the optional Bluetooth gateway is added, full basic and advanced programming is available from the Balmar smartphone app. Used with the optional MC-TS-A alternator and MC-TS-B battery temperature sensors, the regulator monitors ambient temperature and reduces or discontinues charging if a catastrophic over-temperature condition occurs. This part number is the regulator only, supplied without a wiring harness.
PRODUCT DETAILS
- Multi-stage Max Charge regulation for Balmar and other externally regulated 12V P-type alternators
- User-selectable programs for deep cycle flooded, standard flooded, gel, AGM, spiral wound AGM, Carbon Foam and LiFePO4 batteries
- Integrates with the SG200 Battery Monitor over SmartLink for real-time charge monitoring
- Full basic and advanced programming from the Balmar smartphone app when the optional Bluetooth gateway is fitted
- Protects lithium batteries from charging below freezing temperatures
- Improved high-temperature alternator control with optional MC-TS-A and MC-TS-B temperature sensors
- On-regulator programming via the traditional magnetic reed switch tool
- Supplied as the regulator only, without a wiring harness
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Electrical
| System voltage | 12 V |
| Compatible alternator field type | Externally regulated P-type (positive field) |
| Charging program | Multi-stage (bulk, absorption, float) |
| Battery programs | Deep cycle flooded, standard flooded, gel, AGM, spiral wound AGM, Carbon Foam, LiFePO4, plus universal default |
Programming and Display
| On-regulator programming | Magnetic reed switch tool |
| Battery monitor integration | SG200 Battery Monitor via SmartLink |
| App programming | Balmar smartphone app via optional Bluetooth gateway (SG2-0300) |
Temperature Compensation
| Alternator temp sensor | Optional MC-TS-A (not included) |
| Battery temp sensor | Optional MC-TS-B (not included) |
| Lithium low-temperature protection | Disables charging below freezing |
General
| Wiring harness | Not included (regulator only) |
| Series | Max Charge |
| Manufacturer | Balmar |
No videos available for this product.
What alternators does the MC-618 work with?
The MC-618 controls Balmar high-output 12-volt alternators and other externally regulated P-type (positive field) alternators. It is a 12-volt regulator and is not designed for N-type or internally regulated alternators.
Does this part number include a wiring harness?
No. This is the regulator only. If you need the plug-in wiring harness, choose the MC-618-H version, which is supplied with the 54 inch harness.
How is the MC-618 different from the older MC-614?
The MC-618 keeps all the regulation features of the MC-614 and adds SG200 Battery Monitor integration over SmartLink, smartphone app programming through the optional Bluetooth gateway, a new Carbon Foam AGM profile, improved high-temperature alternator control and protection against charging lithium batteries below freezing.
