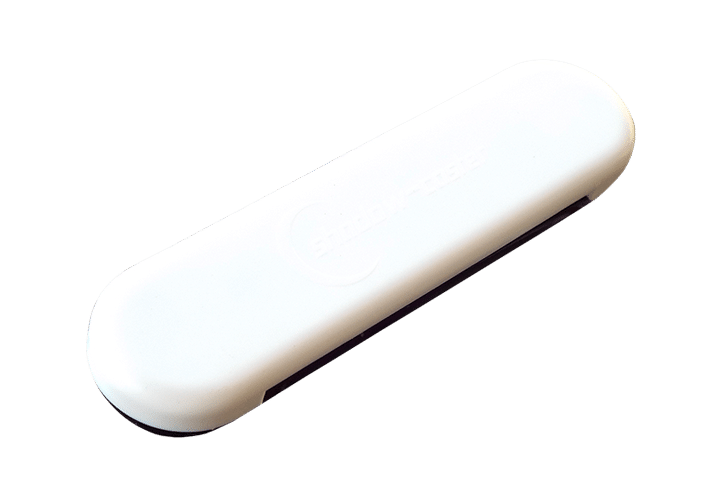

Shadow-Caster SCM-CL-RGB-SS SCM-CL Courtesy Light RGB

The Shadow-Caster SCM-CL-RGB-SS is the RGB full colour, polished stainless steel housing version of the SCM-CL courtesy light, a low-profile edge-emitting LED light for steps, hatches, coves, shelves and compartments.

The low-glare design shines light downwards from a side-emitting housing, and the IP67 construction makes it suitable for baitwells. The SCM-CL is offered in Great White, Bimini Blue, Cool Red, two-colour Bimini Blue / white and RGB versions, each in an ABS (white or black snap-on cover) or polished stainless steel version, under separate part numbers. Single-colour lights can be run from a standard switch; multi-colour and RGB versions use a Shadow-Caster LED controller.

• Colour: RGB full colour
• Housing: polished stainless steel
• Viewing angle: 110° (single-colour) or 130° (colour-changing), per manufacturer
• Current draw: 60 mA (single colour), 120 mA max (RGB); 10-30 V input
• Light output: up to 26,000 mCd
• Rating: IP67 waterproof
• Size: 3 in × 0.78 in × 0.2 in (76 × 20 × 5 mm)
• Lead: 1.5 ft (457 mm) of 20 AWG wire
