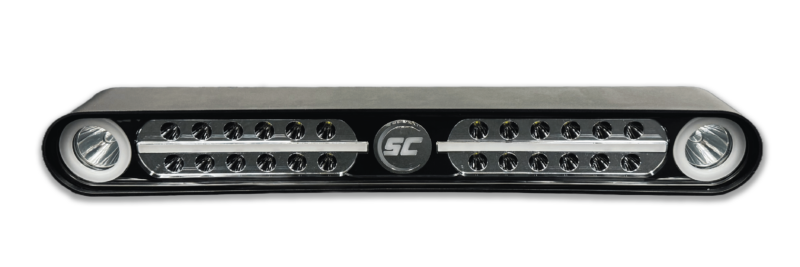

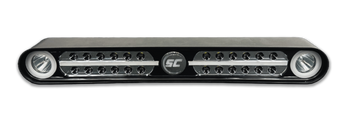

Shadow-Caster SCM-EAGLE-RAY-R-BK Eagle Ray High Brightness Light Bar Black Housing
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Shadow-Caster SCM-EAGLE-RAY-R-BK is the black housing (reverse logo) version of the Eagle Ray, a high-brightness light bar that combines focused laser-driven white beams for long-distance viewing with a wide 60° LED flood array.
The beam angle of the laser lights and the brightness of the flood array are adjustable with a push button, a marine rocker switch or the Shadow-Caster NMEA 2000 Light Commander. A remote power trigger is used for switching, and the main current supply is not controlled through the switch. Black and white housings, with standard or reverse logo, are separate part numbers.
- Housing: black billet aluminium with borosilicate glass window; reverse logo
- Output: 20,000 lumens, 6,500 K bright white
- Laser lights: automotive-grade laser-driven white, adjustable 5-100° beam angle
- Flood: 24 white LEDs, 60° beam angle
- Supply: 10-30 V; 200 W max; 16.5 A at 12 V DC
- Size: 2.5 in H × 20 in W × 5.4 in D (65 × 507 × 137 mm)
PRODUCT DETAILS
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Product details
| Country of origin | United States |
| Commodity code | 94054000 |
Design
| Housing colour | Black |
