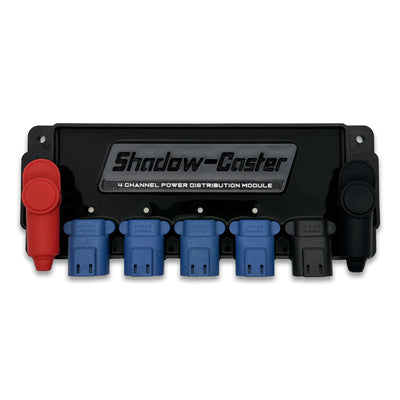

Shadow-Caster SCM-PDCH4 Power Distribution 4 Channel Underwater Light Power Relay Module
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Shadow-Caster SCM-PDCH4 is a 4-position power control box that provides a convenient way to connect up to four Shadow-Caster underwater lights. It gives each output digital over-current protection, which helps manage the high switching current of several lights.
It is a compact waterproof box for bilge and wet locations, recommended when using two or more underwater lights. It can be used with a helm-mounted switch or, with a compatible Shadow-Caster controller, with no switch. Supplied with mounting hardware.
- Channels: 4, up to 10 A per channel
- Supply: 12 or 24 V systems
- Protection: individual digital over-current per channel
- Status: green/red LED per channel; blue backlight
- Terminals: 5/16-18 in power lugs
- Rating: IP67 wash-down enclosure
PRODUCT DETAILS
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Product details
| Country of origin | United States |
| Commodity code | 94054000 |
