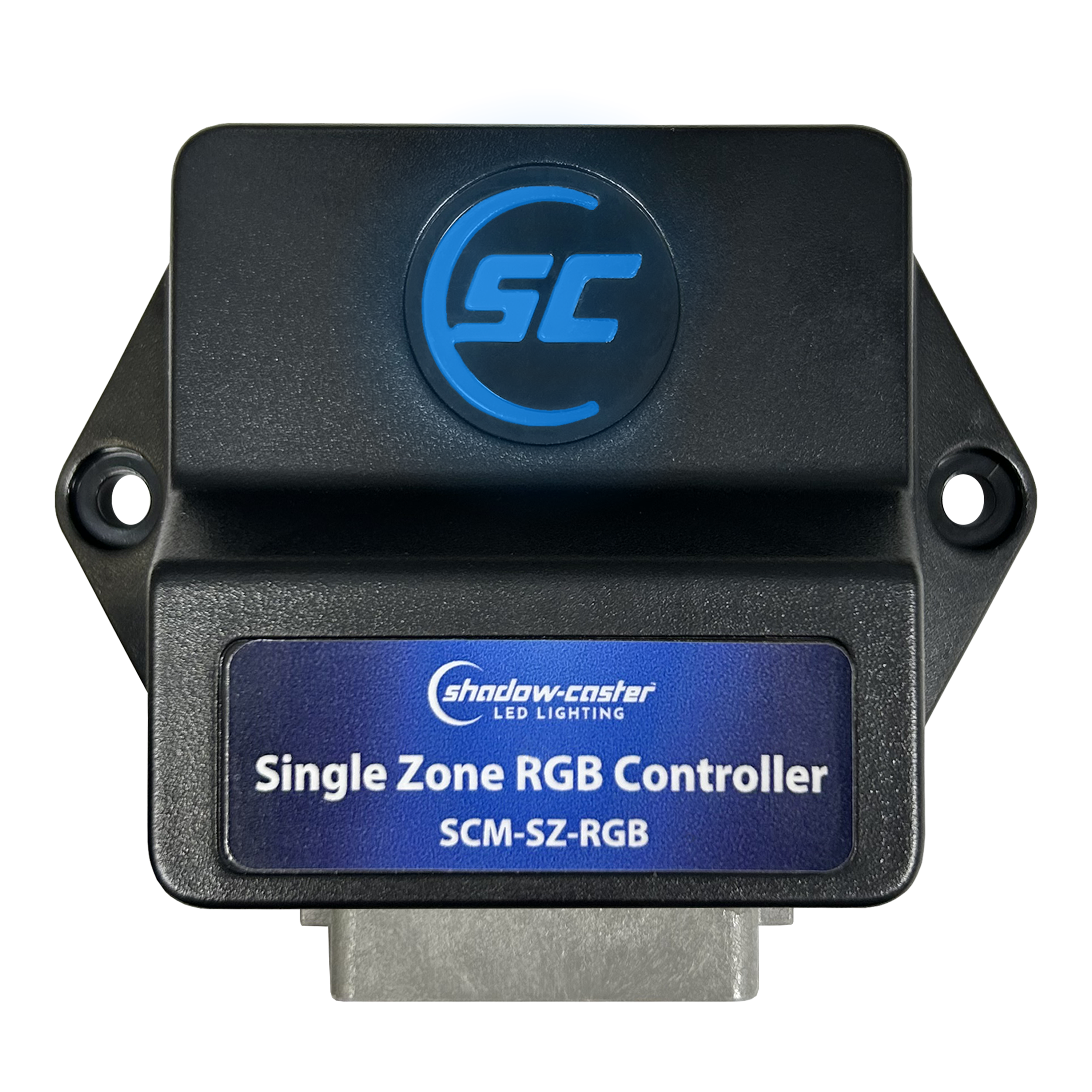

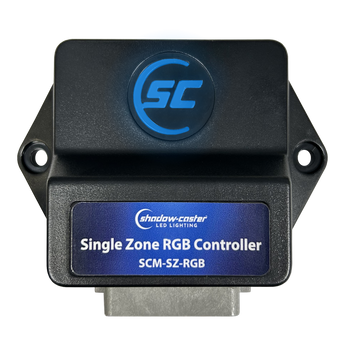

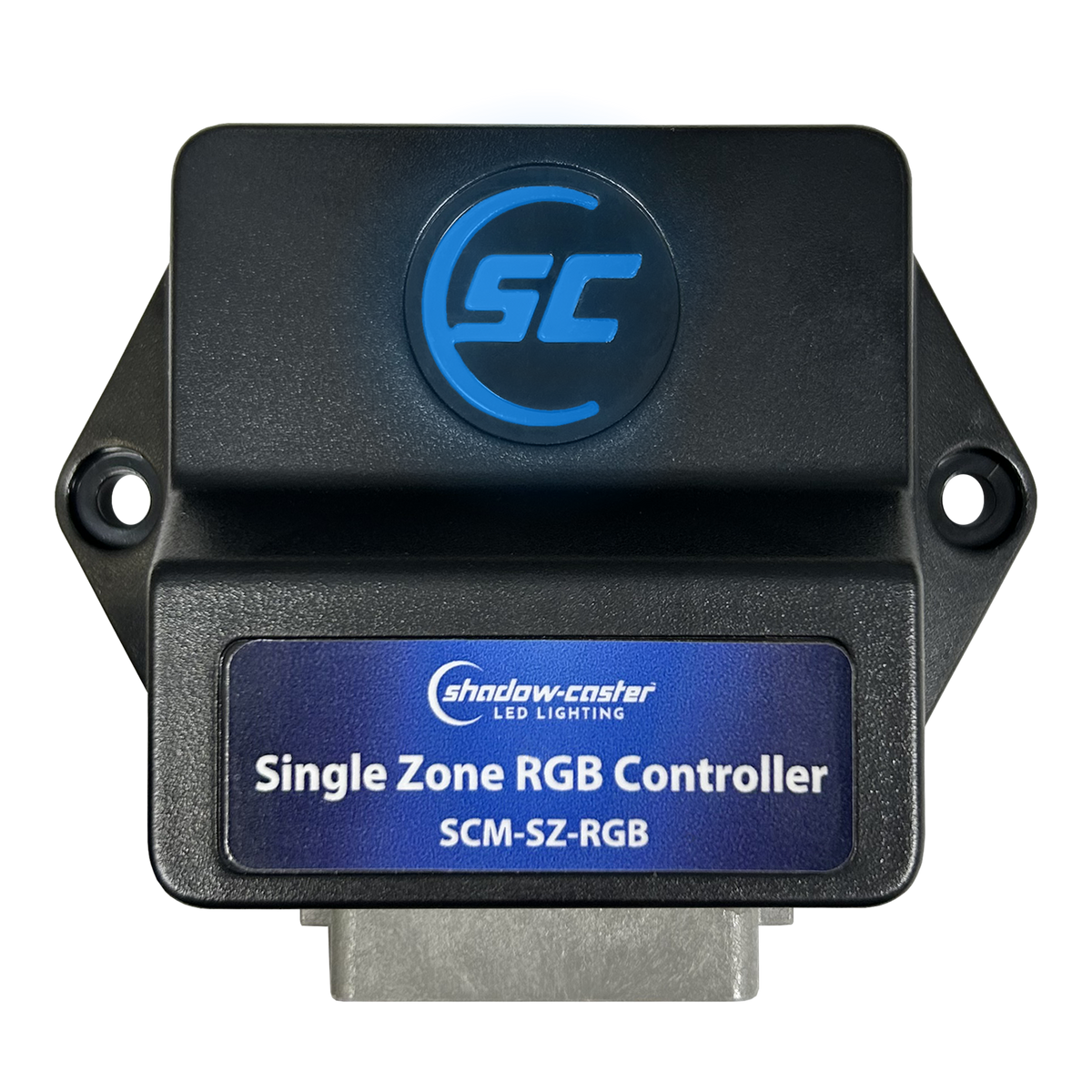

Shadow-Caster SCM-SZ-RGB Single Zone Lighting Controller

The Shadow-Caster SCM-SZ-RGB is a marine-grade single zone RGBW LED controller that sets colour and brightness from a standard push button switch. It has a built-in Shadow-NET interface, so it can synchronise with other Shadow-NET devices, for example to match underwater lights to interior RGBW lighting.

It supports colour rotate and single and multi-colour fades, auto-detects the white channel and has integrated overcurrent protection. The SCM-RGB-EXP expansion module adds an extra RGBW zone.

• Control: off/on/momentary switch or single momentary push button
• Current: 10 A max
• Supply: 12 V / 24 V compatible
• Rating: IP67 housing and connector
• Size: 3.5 in × 2.9 in × 1.2 in (88 × 72.4 × 30.6 mm)
