Simarine NTC 10k Temperature Sensor 1 m
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

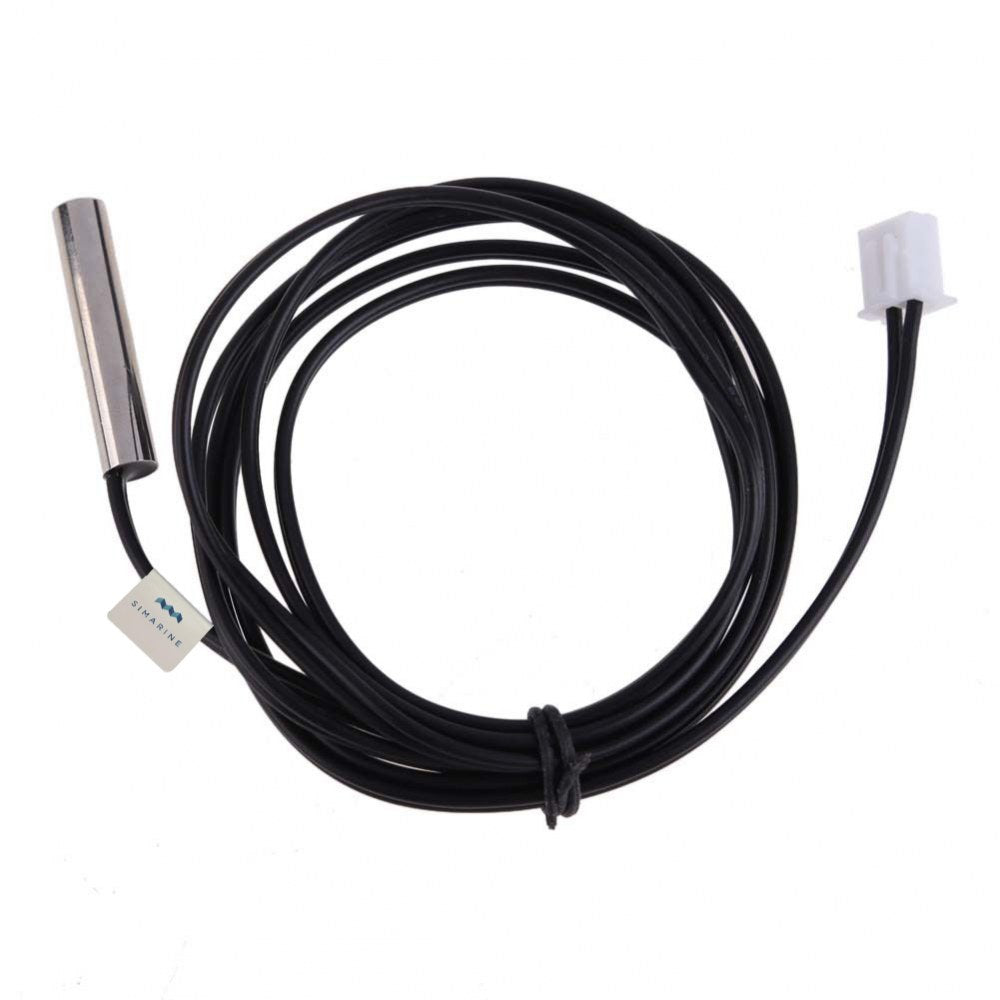

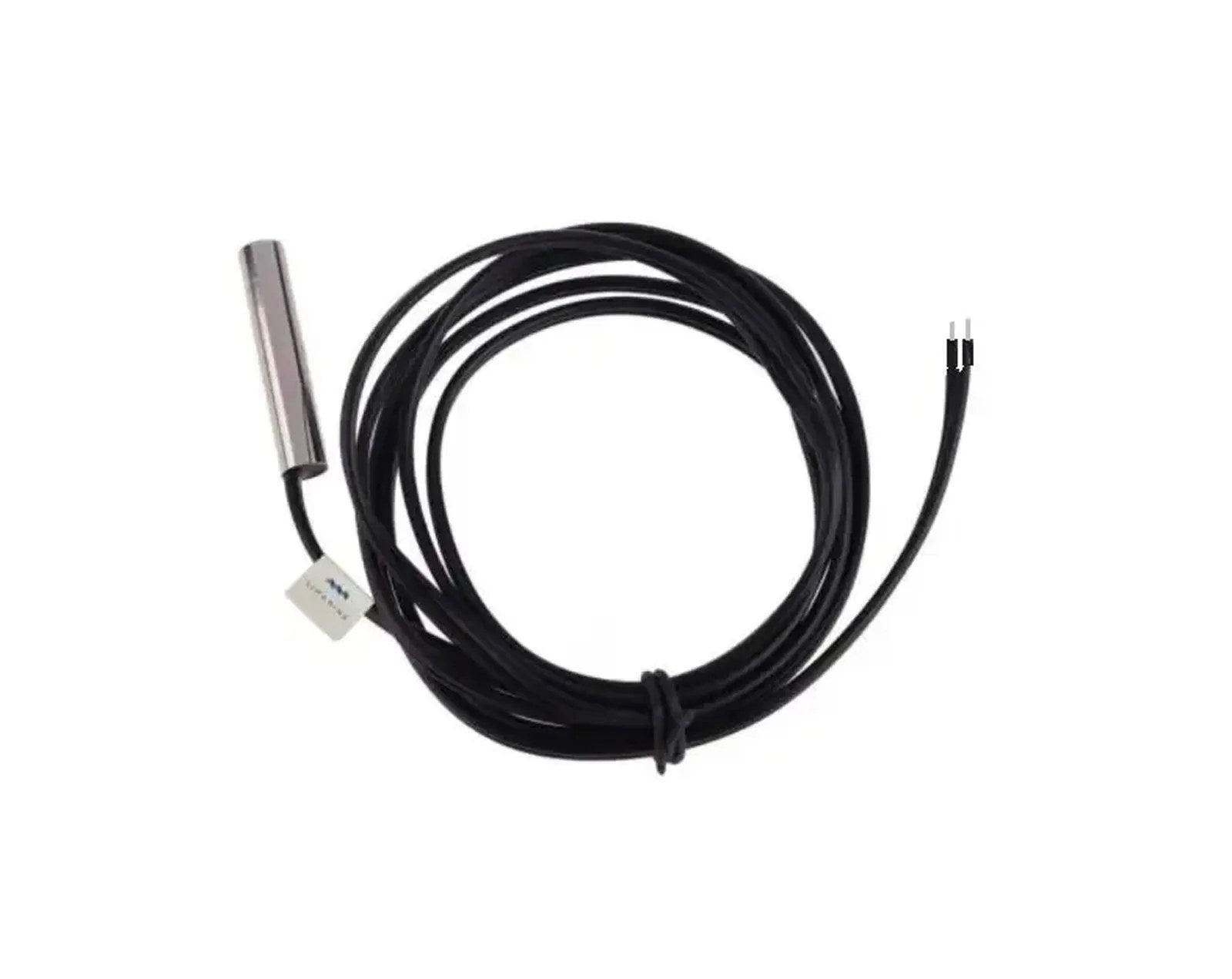

This Simarine temperature sensor is an NTC 10k thermistor in a waterproof stainless steel probe on a 1 m cable. Connected to the temperature input on a Simarine SC303 or SC503 combo shunt, it lets the PICO show battery temperature, or the temperature of an engine bay, fridge, freezer or cabin.
The probe measures 5 x 25 mm and the sensor reads from -13 to 105 °C. It is a 2-wire NTC 10k type with ±1% tolerance, a B-constant of 3380 K and probe insulation above 100 MΩ, so it gives stable, repeatable readings in damp marine and vehicle environments.
Simarine offers the sensor with 1 m and 5 m cables; this version has the 1 m cable. Simarine products carry a 3-year warranty.
PRODUCT DETAILS
- NTC 10k ±1% thermistor
- Waterproof stainless steel probe, 5 x 25 mm
- Range -13 to 105 °C
- 1 m cable, 2 wires
- For battery, engine, fridge or cabin temperature
- Plugs into the NTC input on SC303/SC503 shunts
- 3-year warranty
- 1 x NTC 10k temperature sensor with 1 m cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Measurement
| Sensor type | NTC 10k, ±1% |
| Range | -13 to 105 °C |
| B-constant | 3380 K ±1% |
Physical
| Probe | Stainless steel, waterproof, 5 x 25 mm |
| Cable length | 1 m |
| Output | 2 wires |
| Insulation | >100 MΩ |
Compatibility
| Connects to | NTC temperature input on Simarine SC303 and SC503 shunts and other Simarine modules with an NTC input |
General
| Part number | TS01 |
| Warranty | 3 years |
| Country of origin | Slovenia |
